j5create JVA11

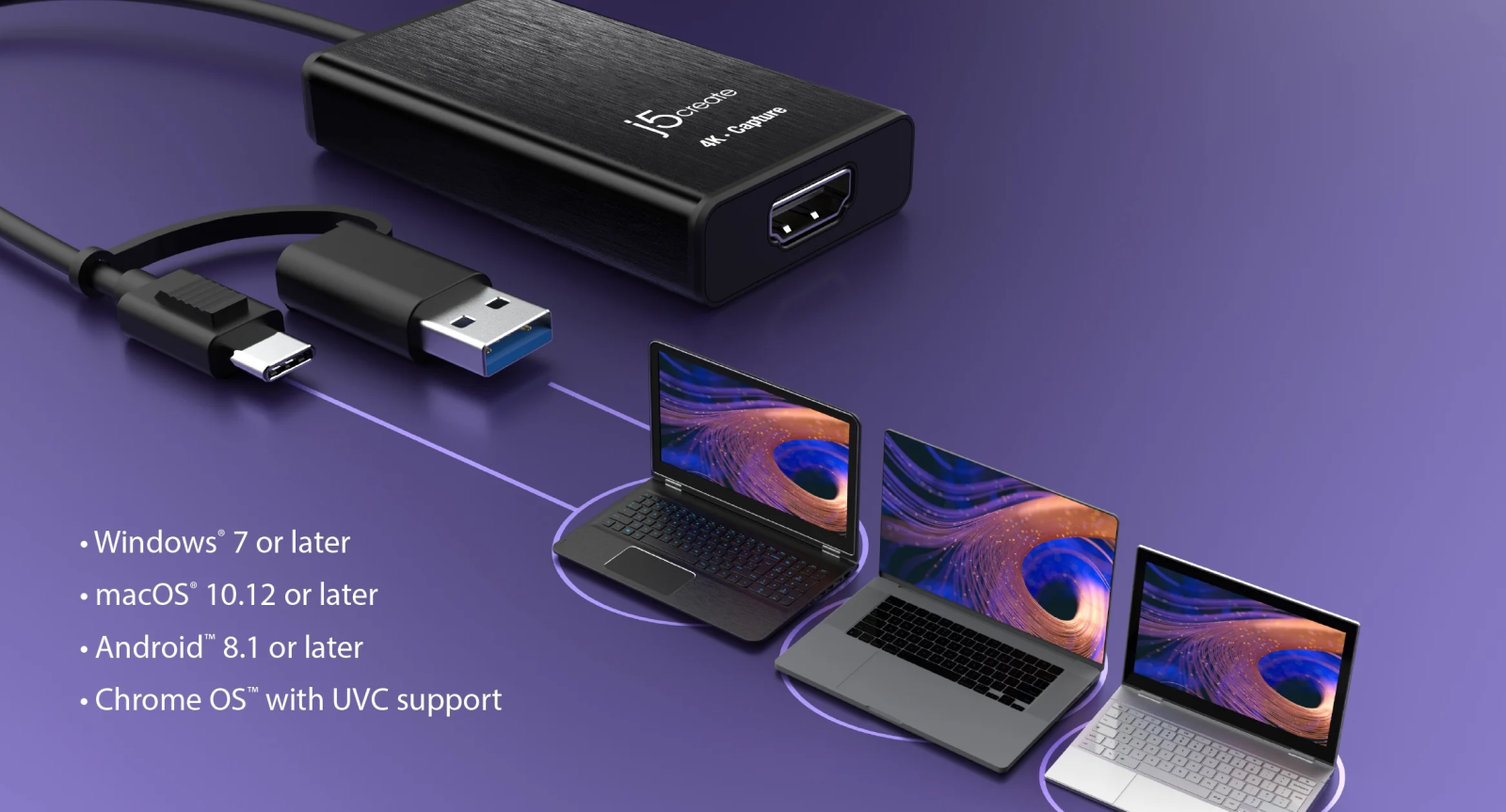

Use With Various Devices

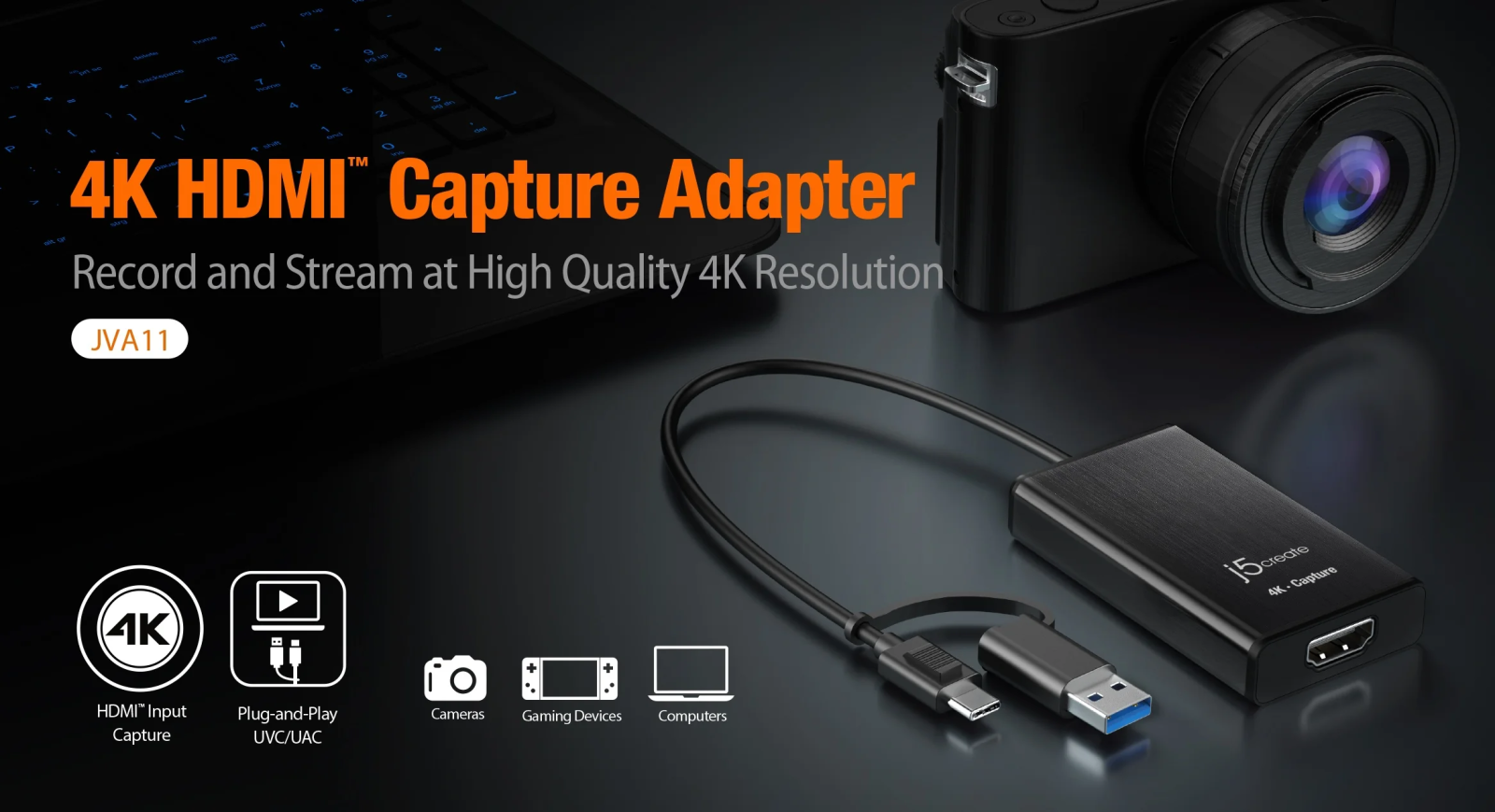

Three HDMI™ Input Resolutions For Recording

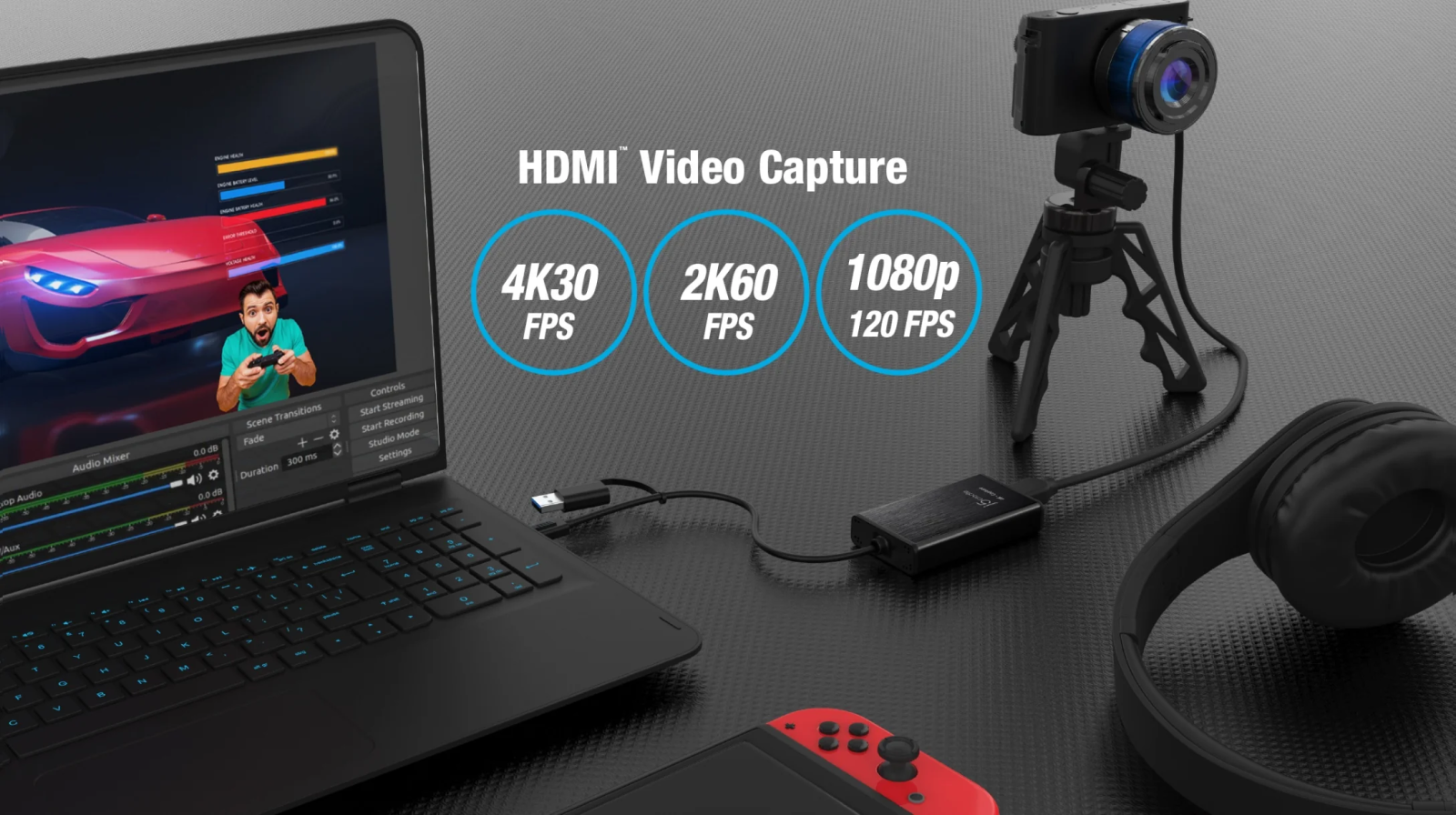

Ablility To Capture 4K@30 FPS, 2K60 FPS, 1080P 120 FPS
Ideal for live streaming, broadcasting, and gaming
It works with OBS™, XSplit®, CameraFi™, QuickTime®, and other video streaming software.
Compatible with PlayStation™ 4/5, Xbox™ Series X/S, Xbox™ One X/S, and Switch™ gaming consoles.
No Driver Installation Required
Compliance with the UVC/UAC Standard
Specifications:
Hardware
| Audio Input | 1 - HDMI Female |
| Audio Output | N/A |
| Audio Switcher | N/A |
| Host Connector | 1 - USB-C 3.2 Gen 1 Female (Type-A to USB-C) |

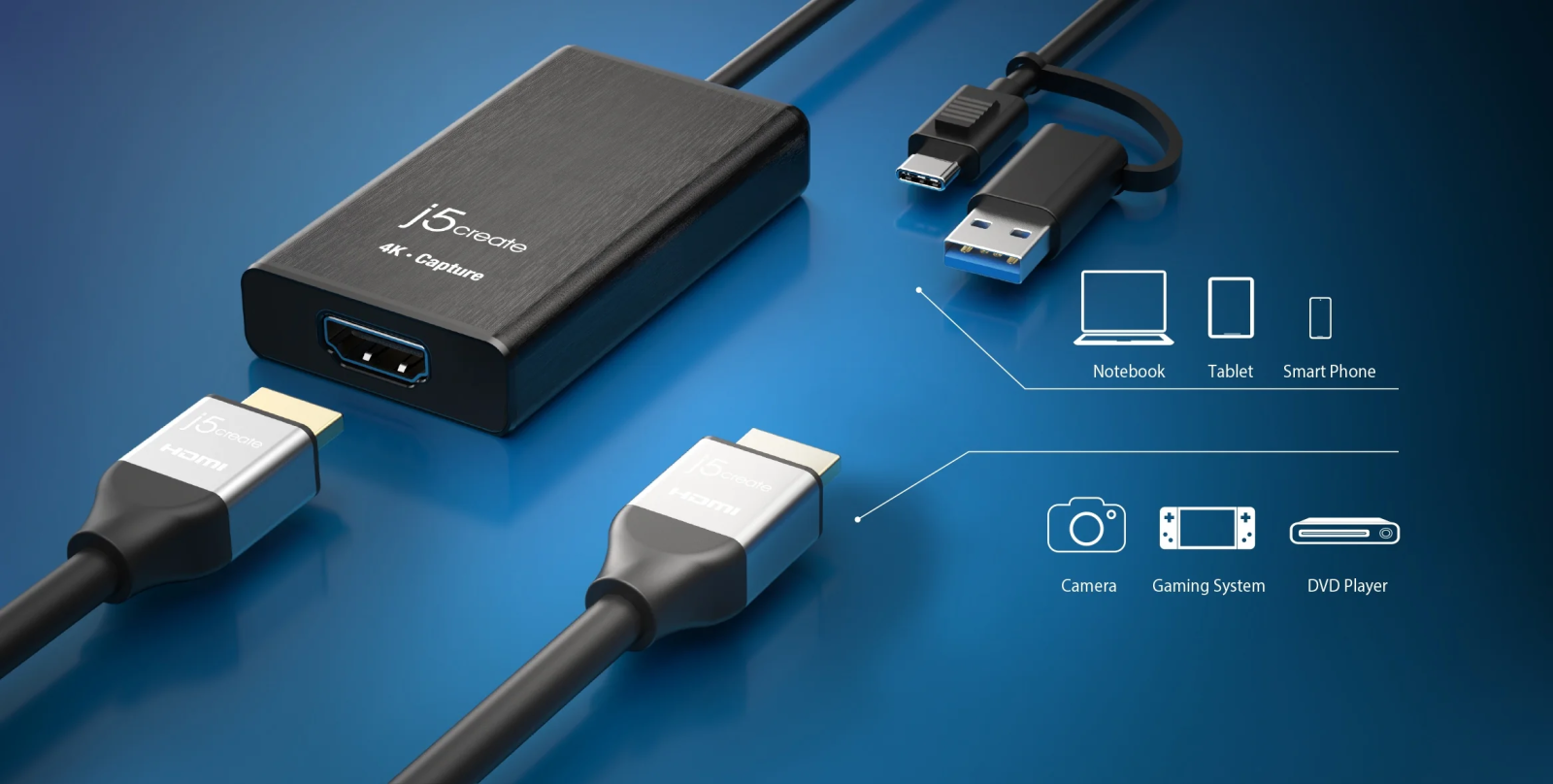

| Ports | 1 - USB-C 3.2 Gen 1 (Host) 1 - HDMI Input |
| Power Source | N/A |
| Video Input | 1 - HDMI Female |
| Video Output | N/A |
| Video Switcher | N/A |
| Warranty | 2 Year Limited |
Performance
| Audio Channel | 2.1 via HDMI |
| Audio Frequency | 48 kHz |
| Compressions | USB 3.0: RGB / YUV4:2:2 / YUV4:2:0 USB 2.0: YUV4:2:0 |
| Hdmi Input Resolutions | 3840 x 2160 @ 30 |
| Hdr Supported | No |
| Headset | N/A |
| Maximum Capture Capability | USB 3.0: 3840 x 2160 @ 30 USB 2.0: 1280 x 720 @30 |
| Maximum Capture Refresh Rate | 4K30 fps, 2K60 fps, 1080p120 fps |
| Max Display Refresh Rate | N/A |
| Microphone | N/A |
Power
| Input Current | 1.5A |
| Input Voltage | 5V |
| Output Current | N/A |
| Output Voltage | N/A |
| Power Consumption | ≤ 530mA |
| Power Delivery | N/A |
Physical Specifications
| Cable Length | 7.87 in. (20 cm) |
| Color | Black |
| Enclosure Type | Aluminum |
| Operating Humidity | <80% non-condensing |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Product Depth | 0.56 in. (14.14 mm) |
| Product Height | 2.83 in. (72 mm) |
| Product Weight | 1.94 oz (55g) |
| Product Width | 1.61 in. (41 mm) |
| Storage Humidity | <85% non-condensing |
| Storage Temperature | 14 to 149°F (-10 – 65℃) |
