Процесор Intel Xeon E3-1245 v5, четириядрен (3.5/3.9GHz, 8MB, 80W, LGA1151)

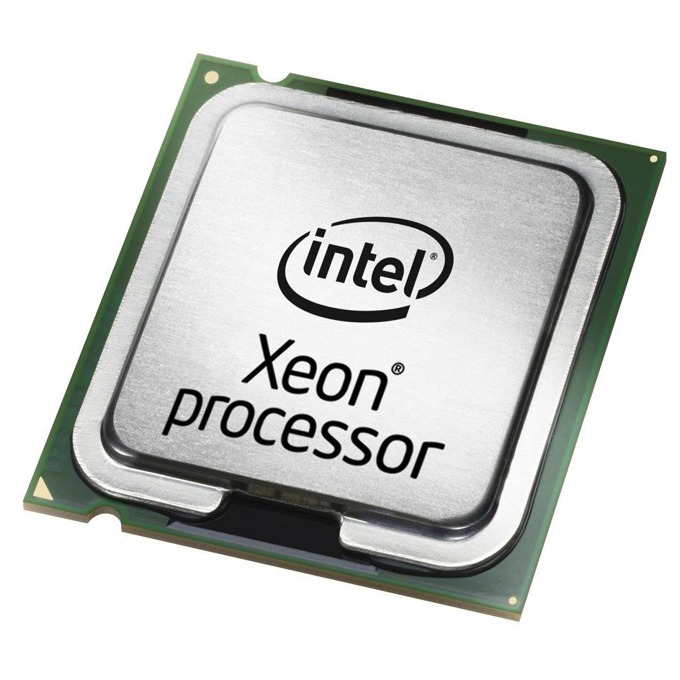

Intel Xeon E3-1245 v5
Specifications:

-Essentials:

Processor Number: E3-1245V5
Lithography: 14 nm

-Performance:
# of Cores: 4
# of Threads: 8
Processor Base Frequency: 3.50 GHz
Max Turbo Frequency: 3.90 GHz
Cache: 8 MB SmartCache
Bus Speed: 8 GT/s DMI3
TDP: 80 W
VID Voltage Range: 0.55V-1.52V

-Supplemental Information:
Embedded Options Available: No
Conflict Free: Yes

-Memory Specifications:

Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s
ECC Memory Supported: Yes

-Graphics Specifications:

Processor Graphics: Intel® HD Graphics P530
Graphics Base Frequency: 400.00 MHz
Graphics Max Dynamic Frequency: 1.15 GHz
Graphics Video Max Memory: 1.7 GB
Graphics Output: eDP/DP/HDMI/DVI
4K Support: Yes, at 60Hz
Max Resolution (Intel® WiDi): 1080p
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX* Support: 12
OpenGL* Support: 4.4
Intel® Quick Sync Video: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Wireless Display: Yes
Intel® Clear Video HD Technology: Yes
Intel® Clear Video Technology: Yes
# of Displays Supported: 3
Device ID: 0x191D

-Expansion Options:

Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes: 16

-Package Specifications:

Sockets Supported: FCLGA1151
Max CPU Configuration: 1

-Advanced Technologies:

Intel® Turbo Boost Technology: 2.0
Intel® vPro Technology: Yes
Intel® Hyper-Threading Technology: Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
Intel® TSX-NI: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes

-Intel® Data Protection Technology:
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® Software Guard Extensions (Intel® SGX): Yes
Intel® Memory Protection Extensions (Intel® MPX): Yes

-Intel® Platform Protection Technology:

OS Guard: Yes
Trusted Execution Technology: Yes
Execute Disable Bit: Yes
