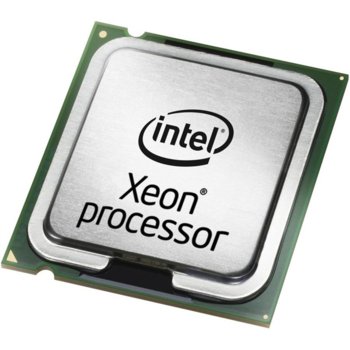

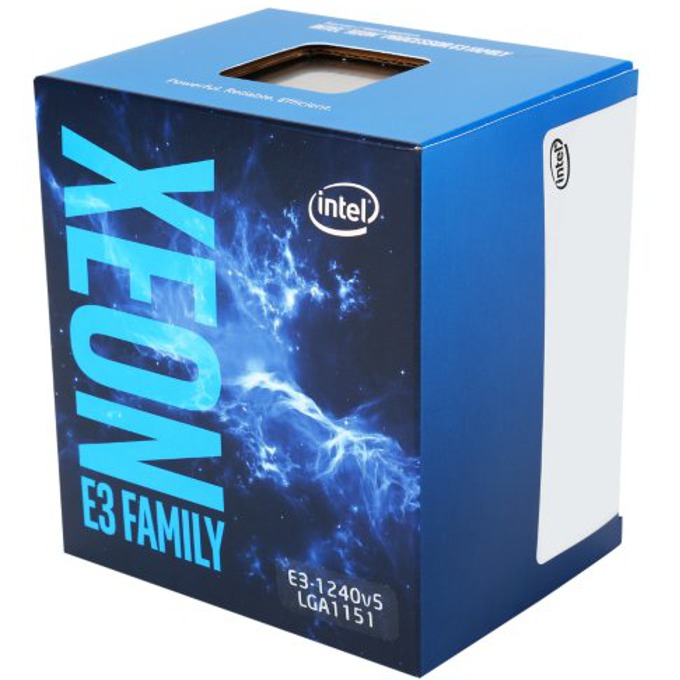

Процесор Intel Xeon E3-1240 v5, четири-ядрен (3.5/3.9GHz, 8MB, 80W, LGA1151) BOX

Essentials
Processor Number E3-1240V5
Status Launched
Launch Date Q4'15
Lithography 14 nm

Performance
# of Cores 4
# of Threads 8
Processor Base Frequency 3.50 GHz
Max Turbo Frequency 3.90 GHz
Cache 8 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 80 W
VID Voltage Range 0.55V-1.52V
Supplemental Information
Embedded Options Available No
Conflict Free Yes
Datasheet Link

Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ Yes

Graphics Specifications
Processor Graphics ‡ None
Graphics Output N/A
4K Support No
Max Resolution (Intel® WiDi)‡ N/A
Max Resolution (HDMI 1.4)‡ N/A
Max Resolution (DP)‡ N/A
Max Resolution (eDP - Integrated Flat Panel)‡ N/A
Max Resolution (VGA)‡ N/A
DirectX* Support N/A
OpenGL* Support N/A
Intel® Quick Sync Video No
Intel® InTru™ 3D Technology No
Intel® Wireless Display No
Intel® Clear Video HD Technology No
Intel® Clear Video Technology No
# of Displays Supported ‡ 0

Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS

Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro Technology ‡ Yes
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2, AVX 2.0
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes

Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) Yes

Intel® Platform Protection Technology
OS Guard Yes
Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
