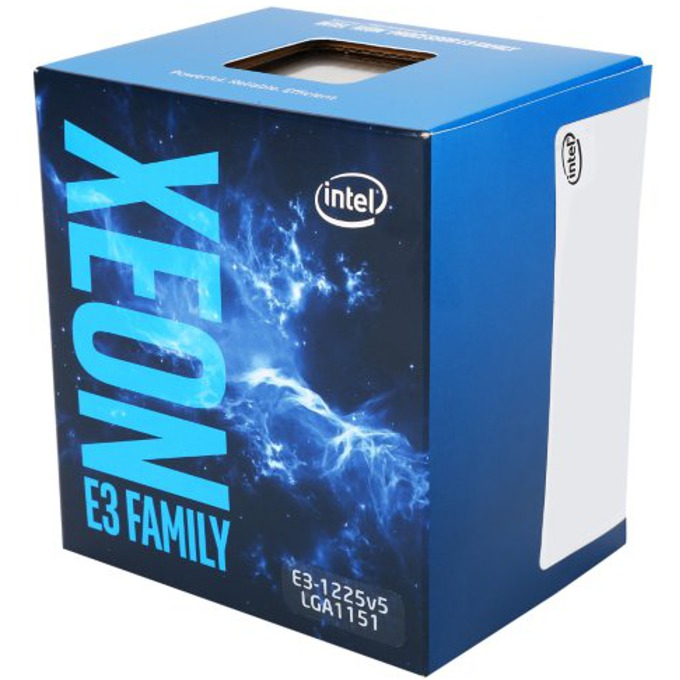

Процесор Intel Xeon E3-1225 v5, четири-ядрен (3.3/3.7GHz, 8MB, 80W, LGA1151), BOX

Essentials
Processor Number E3-1225V5
Status Launched
Launch Date Q4'15
Lithography 14 nm

Performance
# of Cores 4
# of Threads 4
Processor Base Frequency 3.30 GHz
Max Turbo Frequency 3.70 GHz
Cache 8 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 80 W
VID Voltage Range 0.55V-1.52V

Supplemental Information
Embedded Options Available Yes
Conflict Free Yes
Datasheet Link

Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported ‡ Yes

Graphics Specifications
Processor Graphics ‡ Intel® HD Graphics P530
Graphics Base Frequency 400.00 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory 1.7 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (Intel® WiDi)‡ 1080p
Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.4
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Wireless Display Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x191D

Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Low Halogen Options Available See MDDS

Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro Technology ‡ Yes
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2, AVX 2.0
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes

Intel® Data Protection Technology
Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes
Intel® Memory Protection Extensions (Intel® MPX) Yes

Intel® Platform Protection Technology
OS Guard Yes
Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
