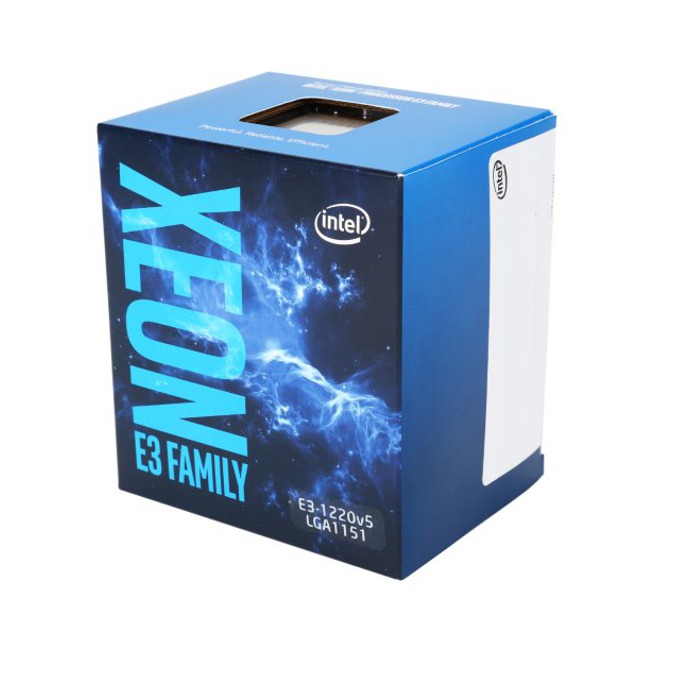

Процесор Intel Xeon E3-1220 v5 четири-ядрен (3/3.5GHz, 8MB, 80W, LGA1151) BOX

Intel® Xeon® Processor E3-1220 v5 (8M Cache, 3.00 GHz)
BX80662E31220V5


Processor Number: E3-1220V5
Intel® Smart Cache: 8 MB
DMI3: 8 GT/s
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Lithography: 14 nm
Scalability: 1S Only

Performance
# of Cores: 4
# of Threads: 4
Processor Base Frequency: 3 GHz
Max Turbo Frequency: 3.5 GHz
TDP: 80 W

Memory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels: 2
Max Memory Bandwidth: 34.1 GB/s
ECC Memory Supported: Yes

Expansion Options
PCI Express Revision: 3.0
PCI Express Configurations: 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes: 16

ackage Specifications
Max CPU Configuration: 1
Package Size: 37.5mm x 37.5mm
Graphics and IMC Lithography: 14 nm
Sockets Supported: FCLGA1151
Low Halogen Options Available: See MDDS

Advanced Technologies
Intel® Turbo Boost Technology: 2.0
Intel® vPro Technology: Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes
Intel® TSX-NI: Yes
Intel® 64: Yes
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes

Intel® Data Protection Technology
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® Software Guard Extensions (Intel® SGX): Yes
Intel® Memory Protection Extensions (Intel® MPX): Yes

Intel® Platform Protection Technology
OS Guard: Yes
Trusted Execution Technology: Yes
Execute Disable Bit: Yes
