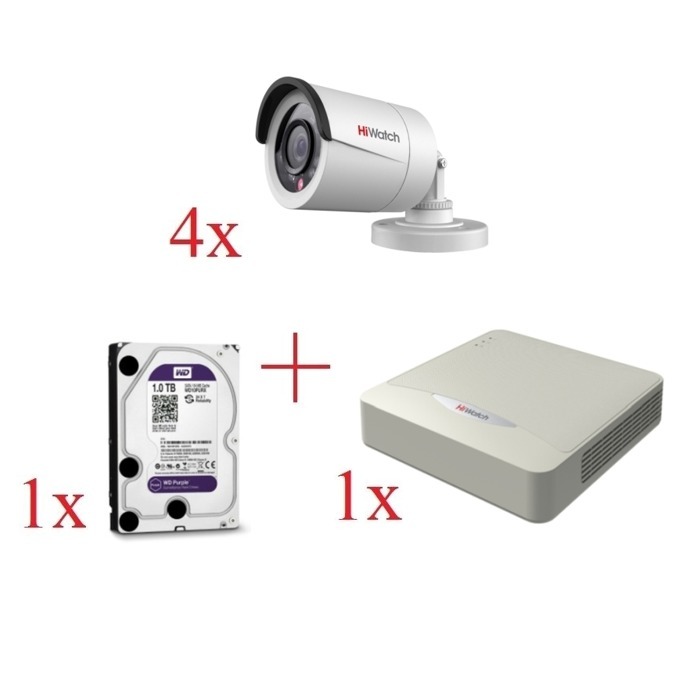

Комплект за видеонаблюдение 4x HiWatch DS-I110 (1MP, 4mm/F2.0, 720/30fps) + 1x HiWatch DS-N104 (4 канала, 1x SATA, 1x HDMI, 1x VGA, 2x USB) + 1TB HDD

4x HiWatch DS-I110

Image Sensor: 1/4’’ Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON) , 0.028Lux @ (F2.0, AGC ON) , 0 Lux with IR
Shutter Speed: 1/3 s ~ 1/100,000 s
Lens: 4mm@ F2.0, Angle of view: 73.1°
Lens Mount: M12
Day & Night: IR cut filter with auto switch
WDR Digital: WDR
Compression: Standard
Video Compression: H.264/MJPEG
H.264 Type: Baseline Profile / Main Profile
Video Bit Rate: 32 Kbps – 8 Mbps
Max. Resolution: 1280 × 720
Frame Rate: 50Hz: 25fps(1280 × 720)
60Hz: 30fps (1280 × 720)
Image Enhancement: BLC/3D DNR
Image Setting: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access
Standard: ONVIF, PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M/100M Ethernet interface
Reset Button: Yes
Operating Conditions: -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply: 12V DC±10%, PoE (802.3af)
Power Consumption: Max. 5W
Protection Level: IP66
IR Range: 30m
Dimensions: Φ70×155.1 mm
Weight: 500g (1.1 lbs)

1x HiWatch DS-N104

IP video input: 4-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Incoming bandwidth: 25 Mbps
Outgoing bandwidth: 40 Mbps
Remote connection: 128
HDMI/VGA output: 1-ch, resolution:
1920 × 1080p/60Hz, 1600x1200p/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
Audio output: 1-ch, RCA (Linear, 1 kΩ)
Live view/Playback resolution: 1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 4-ch@720P , 2-ch@1080P
SATA: 1 SATA interface for 1 HDD
Capacity: Up to 4TB for each disk
Network interface: 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface\
USB interface: 2 × USB 2.0
Power supply: 12 VDC
Consumption (without hard disk): ≤ 6 W
Working temperature: -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity: 10 % to 90 %
Chassis: 1U chassis
Dimensions(W × D × H): 205× 205× 45 mm(8.1 ×8.1 ×1.8 inch)
Weight: ≤ 1 kg (without hard disk)

1x 1TB HDD
