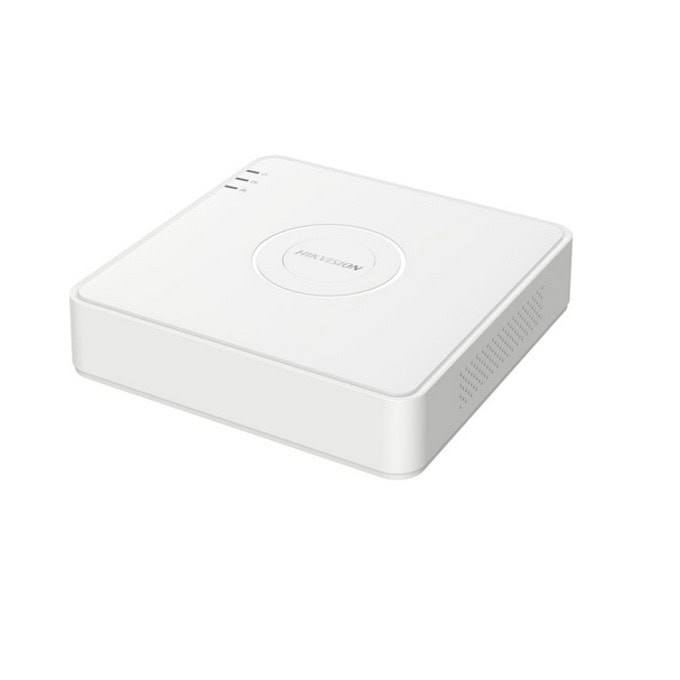

Хибриден видеорекордер Hikvision IDS-7108HQHI-M1/S(C), 8-канален, H.265 Pro+/H.265 Pro/H.265, 1x SATA до 10TB, 2x USB 2.0, 1x RJ45 10/100Mbps

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis Up to 4-ch

Facial Detection
Facial Detection and Capture Face picture detection, face picture search

Video and Audio
IP Video Input
2-ch (up to 10-ch)

Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output

Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable

Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 8-ch

Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps

Network
Total Bandwidth 96 Mbps
Remote Connection 64
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Network Interface 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface
SATA 1x SATA interface
Capacity Up to 10 TB capacity for each disk
Alarm In/Out N/A
USB Interface Real panel: 2 × USB 2.0

General
Power Supply 12 VDC, 1.33 A
Consumption ≤ 12 W (without HDD)
Working Temperature -10 °C to +55 °C
Working Humidity 10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm
Weight≤ 1 kg (without HDD)
