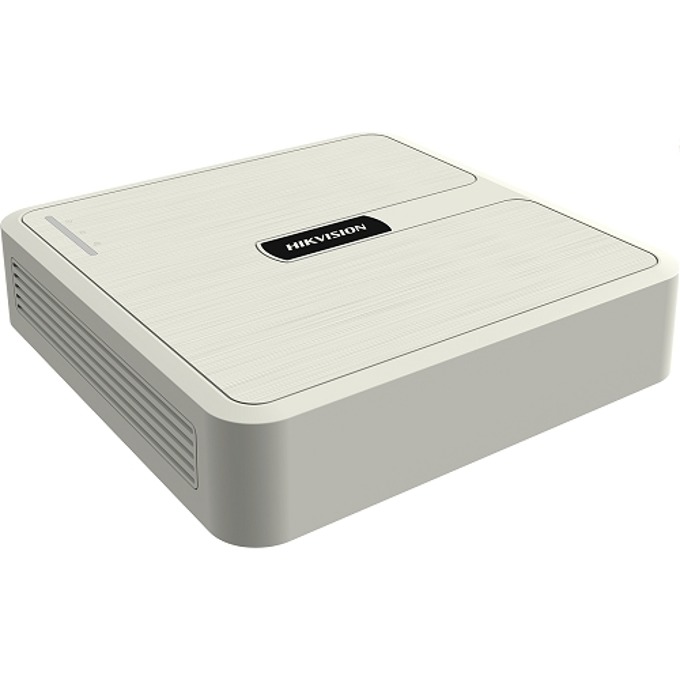

-5 in 1
-H.264+
-Support 1080p resolution input
-1 HDD
-Simultaneous HDMI/VGA output at up to 1920×1080 resolution
-4-ch Analog Video input
Product properties
Video/Audio input
Video compression: H.264+/H.264
Analog video input: 4-ch
HDTVI input: 1080p25, 1080p30, 720p25, 720p30
AHD input: 1080p25, 1080p30, 720p25, 720p30
HDCVI input: 1080p25, 1080p30, 720p25, 720p30
CVBS input: Support
IP video input: Up to 4-ch
Audio compression: G.711u
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
HDMI/VGA output: : 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Main stream Frame rate:
Main stream:
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream Frame Rate:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 4 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 4-ch
Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA Interface: 1 SATA interface
Hard Disk Capacity: Up to 6 TB capacity for each disk
External interface
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface: Rear panel: 2 × USB 2.0
General
Power supply: 12 VDC
Consumption (without HDD): ≤ 8 W
Working temperature: -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity: 10% to 90%
Dimensions (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight (without HDD): ≤ 0.8 kg (1.8 lb)
Виж още DVR Записващи устройства Hikvision
Виж всички DVR Записващи устройства в категорията
-H.264+
-Support 1080p resolution input
-1 HDD
-Simultaneous HDMI/VGA output at up to 1920×1080 resolution
-4-ch Analog Video input
Product properties
Video/Audio input
Video compression: H.264+/H.264
Analog video input: 4-ch
HDTVI input: 1080p25, 1080p30, 720p25, 720p30
AHD input: 1080p25, 1080p30, 720p25, 720p30
HDCVI input: 1080p25, 1080p30, 720p25, 720p30
CVBS input: Support
IP video input: Up to 4-ch
Audio compression: G.711u
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
HDMI/VGA output: : 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Main stream Frame rate:
Main stream:
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream Frame Rate:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 4 Mbps
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate: 64 Kbps
Dual stream: Support
Stream type: Video, Video & Audio
Synchronous playback: 4-ch
Network management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA Interface: 1 SATA interface
Hard Disk Capacity: Up to 6 TB capacity for each disk
External interface
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface: Rear panel: 2 × USB 2.0
General
Power supply: 12 VDC
Consumption (without HDD): ≤ 8 W
Working temperature: -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working humidity: 10% to 90%
Dimensions (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight (without HDD): ≤ 0.8 kg (1.8 lb)
Виж още DVR Записващи устройства Hikvision
Виж всички DVR Записващи устройства в категорията
Документация
Декларация за съответствие HikVision_HWD-5104 HWD-5108.pdfТехнически характеристики
| Тип: | Хибриден DVR |
|---|---|
| Брой поддържани видеокамери: | 4 |
| Брой поддържани дискове: | 1 |
