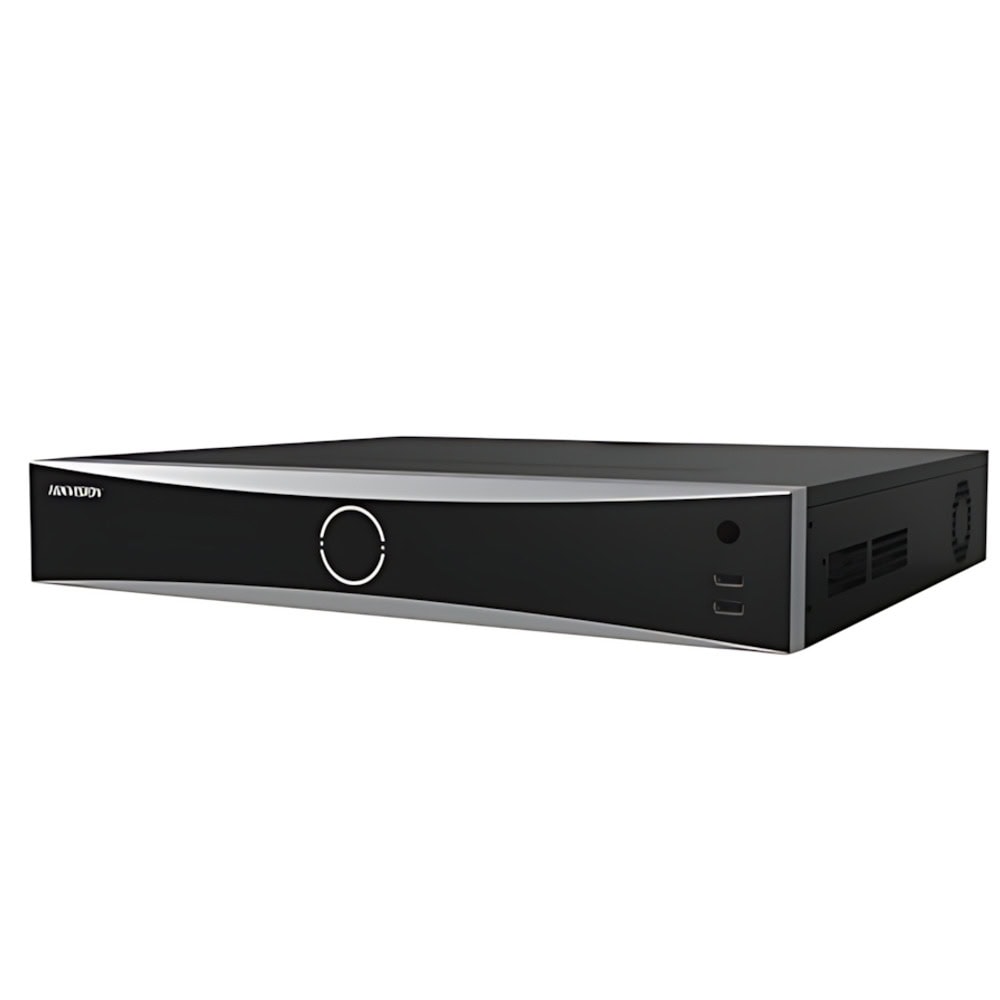

Name: IP видеорекордер HikVision DS-7716NXI-K4(D), 16-канален, H.265+/H.265/H.264+/H.264, 4x SATA (до 16TB), 1x USB 3.0, 2x USB 2.0, 2x RJ-45, 1x HDMI, 1x VGA
Brand: Hikvision
SKU: SCNVRHIKVISIONDS7716NXIK4D
Price: 526.95 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

DS-7716NXI-K4(D)

16-ch 1.5U K Series AcuSense 4K NVR

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

Спецификация	Стойност
AI by Device	Facial recognition, perimeter protection, motion detection 2.0
AI by Camera	Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA
By Device	2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera	All channels
Facial Detection and Analytics	Face picture comparison, human face capture, face picture search
Face Picture Library	Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance	1-ch, 8 MP
Face Picture Comparison	4-ch
By Camera	All channels
IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA independent output
CVBS Output	N/A
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format	H.265/H.265+/H.264+/H.264
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
Decoding Capability	AI on: 2-ch@12 MP (30 fps) / 3-ch@8 MP (30 fps) / 6-ch@4 MP (30 fps) / 12-ch@1080p (30 fps)AI off: 2-ch@12 MP (30 fps) / 4-ch@8 MP (30 fps) / 8-ch@4 MP (30 fps) / 16-ch@1080p (30 fps)Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 5-ch@4 MP (30 fps) / 11-ch@1080p (30 fps)Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps) / 3-ch@8 MP (30 fps) / 7-ch@4 MP (30 fps) / 15-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC
Remote Connection	128
API	ONVIF (profile S/G); SDK; ISAPI
Compatible Browser	IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
