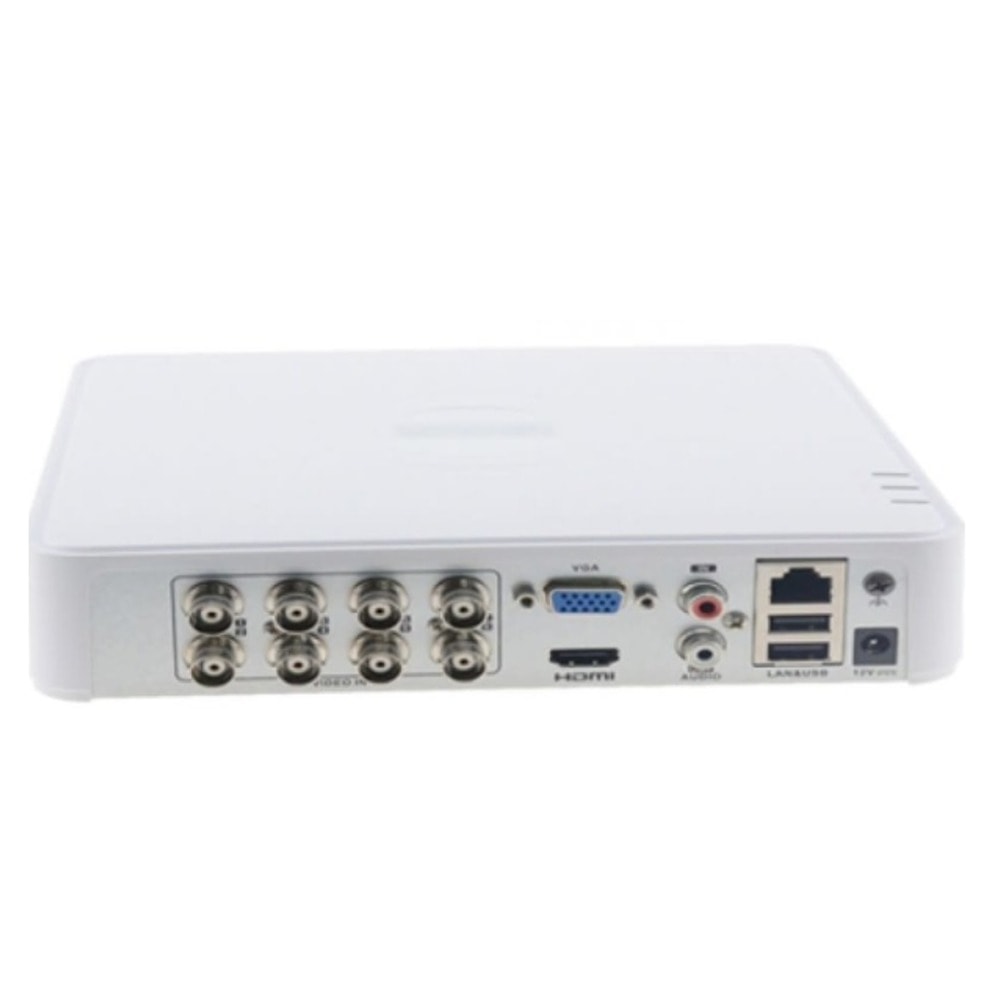

Хибриден видеорекордер Hikvision DS-7108HQHI-K1(S), 8 канален, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264, 1x SATA до 6ТВ, 2x USB, 1x RJ-45 100Mbit, 1x RCA, 1x HDMI, 1x VGA

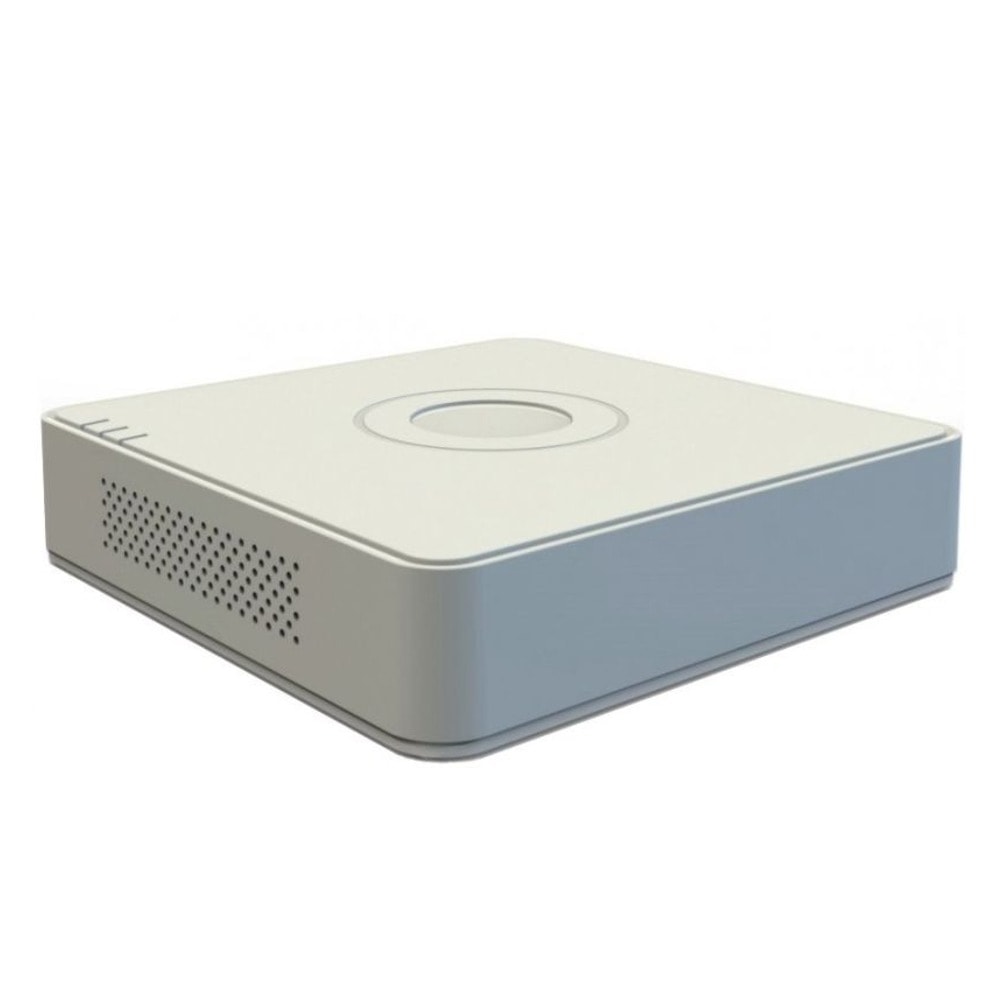

HikVision DS-7108HQHI-K1(S)

8-ch 1080p Mini 1U H.265 DVR

• 8 channels and 1 HDD mini size DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 12 network cameras can be connected

Specification:

• Recording
• Video Compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF



• Frame Rate

  Main stream:

  When 1080p Lite mode is not enabled:

  For 4 MP stream access:

  4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access:

  1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)



• Video Bitrate - 32 Kbps to 6 Mbps
• Dual-Stream - Support
• Stream Type - Video, Video & Audio
• Audio Compression - G.711u
• Audio Bitrate - 64 Kbps

• Video And Audio
• IP Video Input

  2-ch (up to 10-ch)



  Enhanced IP mode on:

  4-ch (up to 12-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras



• Incoming Bandwidth - 48 Mbps
• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input

  4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

  *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.

• AHD Input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS Input - Support
• VGA Output - 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI Output - 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output - 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback - 8-ch

• Network
• Total Bandwidth - 96 Mbps
• Remote Connection - 64
• Network Protocol - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface - 1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary Interface
• SATA - 1 SATA interface
• Capacity - Up to 6 TB capacity for each disk
• Alarm In/Out - N/A
• USB Interface - Real panel: 2 × USB 2.0

• General
• Power Supply - 12 VDC, 1.33 A
• Consumption - ≤ 12 W
• Working Temperature - -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity - 10% to 90%
• Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• ≤ 1 kg (2.2 lb)
