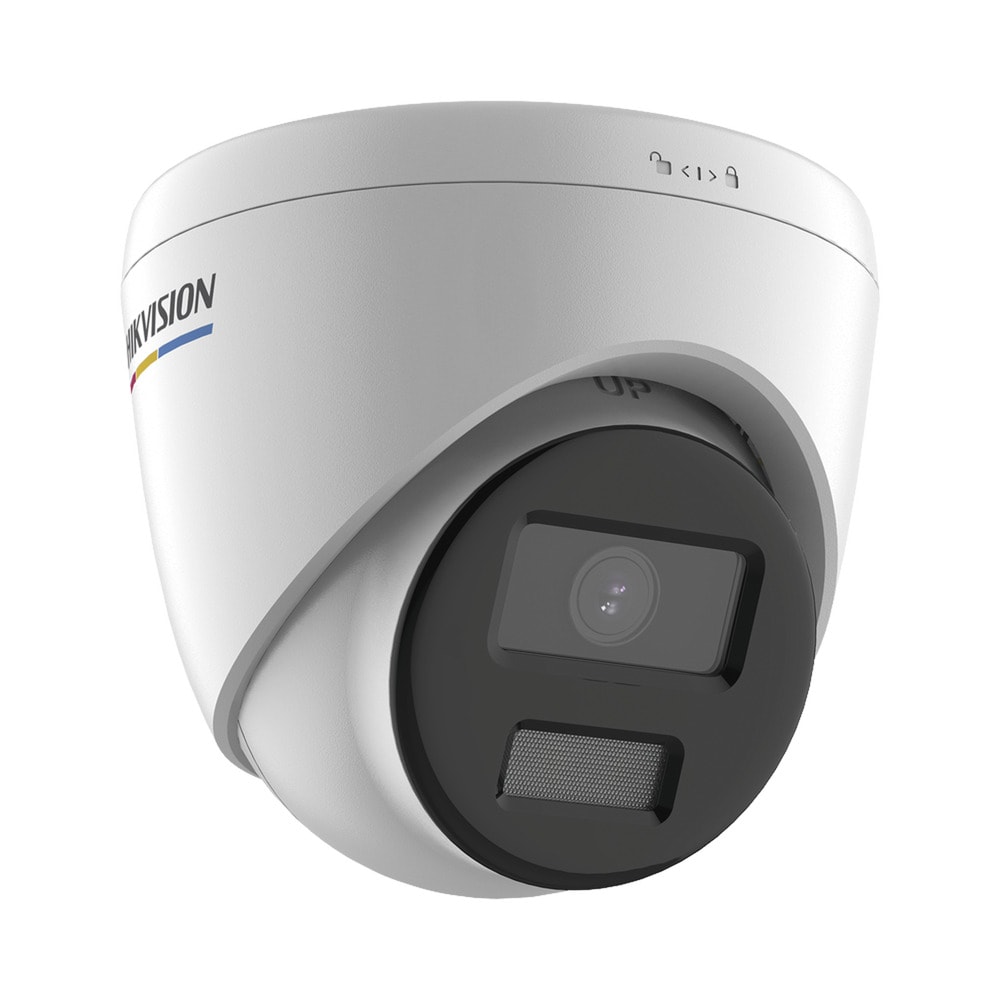

IP камера Hikvision DS-2CD1347G0-L(C), 4Mpix(2560x1440@24fps), куполна камера, 4mm обектив, H.265/H.264, IR осветеност (30m), LAN, microSD до 256GB



Specification



Camera

Image Sensor:  1/3" Progressive Scan CMOS

Min. Illumination:  Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light

Shutter Speed:  1/3 s to 1/100, 000 s

Slow Shutter:  Yes

Wide Dynamic Range:  120 dB

Angle Adjustment:  Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°

4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°

Lens Mount:  M12

Focus:  Fixed

Aperture:  F1.0

DORI

DORI

2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

Illuminator

Smart Supplement Light:  Yes

White Light Range:  Up to 30 m

Video

Max. Resolution:  2560 × 1440

Main Stream

50 Hz:

20 fps (2560 × 1440),

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440),

30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate:  32 Kbps to 8 Mbps

H.264 Type:  Baseline Profile/Main Profile/High Profile

H.265 Type:  Main Profile

H.264+:  Main stream supports

H.265+:  Main stream supports

Region Of Interest (ROI):  1 fixed region for main stream

Audio

Audio Compression:  -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate:  -UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate:  -UF: 8 kHz/16 kHz

Environment Noise Filtering:  -UF: Yes

Network

Protocols:  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View:  Up to 6 channels

API:  Open Network Video Interface, ISAPI

User/Host:  Up to 32 users. 3 levels: administrator, operator and user

Client:  iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings:  Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

Day/Night Switch:  Day, Night, Auto, Schedule

Image Enhancement:  BLC, 3D DNR

Interface

Ethernet Interface:  1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage:  -UF: Built-in memory card slot, support microSD card, up to 256 GB

Built-In Microphone:  -UF: Yes

Hardware Reset:  -UF: Yes

Event

Basic Event:  Motion detection, video tampering alarm, exception

General

Linkage Method:  Upload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture

Camera Material:  Metal & Plastic

Camera Dimension:  Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08")

Package Dimension:  150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Camera Weight:  Approx. 380 g (0.84 lb.)

With Package Weight:  Approx. 600 g (1.32 lb.)

Storage Conditions:  -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup And Operating Conditions:  -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Web Client Language:  English, Ukrainian

General Function:  Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version:  V5.5.122

Power Consumption And Current

12 VDC, 0.4 A, max. 5 W

PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Power Supply

12 VDC ± 25%

PoE: 802.3af, Class 3

Power Interface:  Ø5.5 mm coaxial power plug

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

Protection:  IP67 (IEC 60529-2013)
