Name: Мини компютър Barebone Gigabyte GB-BEi3-1220, десетядрен Intel Core i3-1220P 1.5/4.4GHz, 2x SO-DIMM DDR4, 1x M.2, LAN, Wi-Fi, Bluetooth
Brand: Gigabyte
SKU: BRBPCGIGABYTEGBBEI31220
Price: 832.23 BGN
Availability: InStock

Описание Ревюта / Въпроси Вземи на изплащане

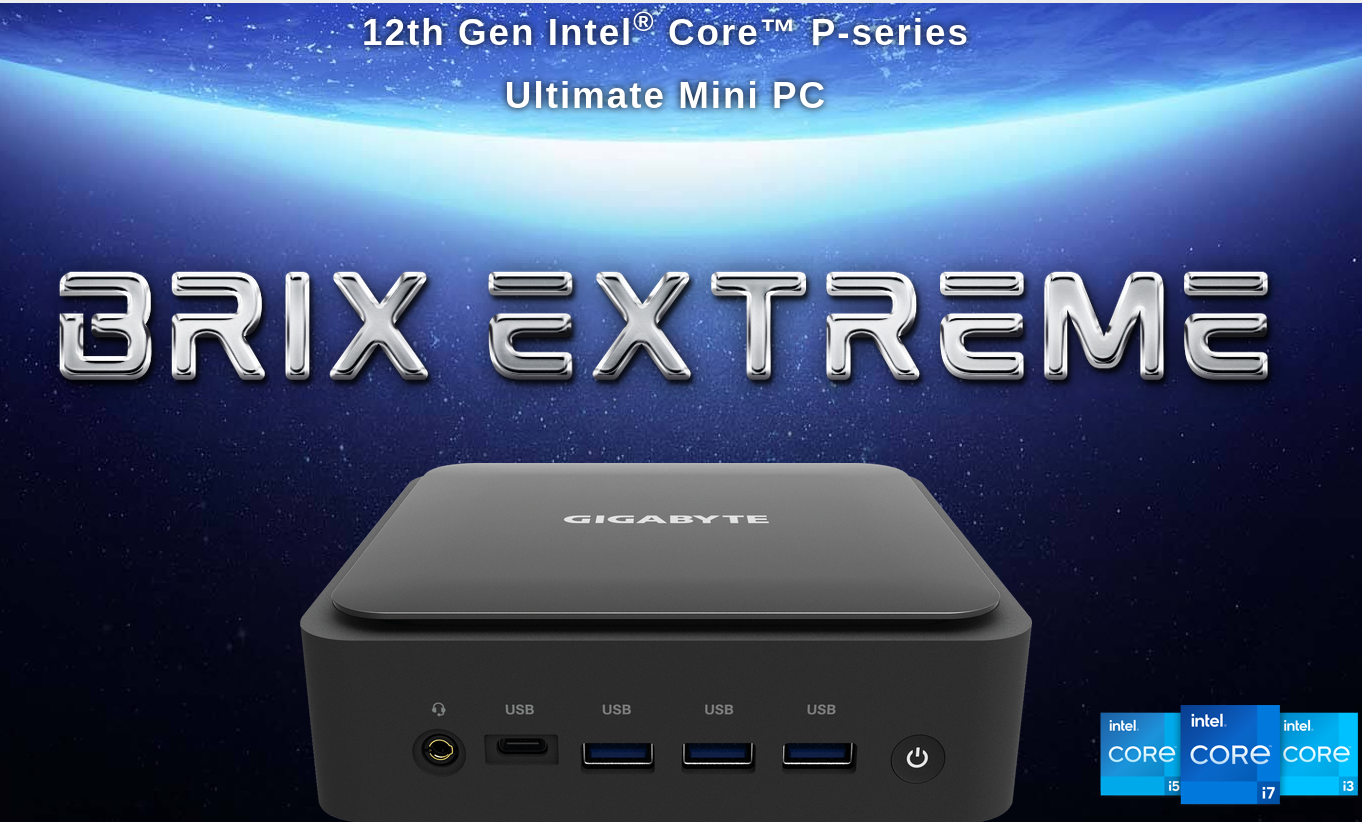

Gigabyte GB-BEi3-1220

All-new chassis design, Slim Version
12^th Gen Intel^® Core^TM i3-1220P processor
Intel^® UHD Graphics for 12th Gen Intel® Processors, 64EU
Super Fast 2.5G LAN + Wifi 6E module
4x4K outputs - 1xHDMI 2.1(8K) /1xHDMI / 1xMini DP / 1xUSB type C DP
1xUSB 4.0(Type C, support Intel Thunderbolt 4), 7xUSB 3.2 ports
1x2280 M.2 SSD storages
TPM security chip available*

* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.

Specification

Dimension

4‎8.3 mm x 134.2 mm x 139.1 mm (1.9" x 5.3" x 5.4")
Motherboard Size

125mm x 128.8 mm (4.9'' x 5.1")
CPU

12th Generation Intel® Core™ i3-1220P Processors, 10 Cores (2P+8E) 12 Threads, 12MB L2 Cache, Frequency 1.5GHz-4.4GHz(P Core), 28W
Memory

2 x SO-DIMM DDR4 slots, support up to 3200MHz
Max. 64GB
LAN

2.5G LAN (Intel i225V)
Wifi Card

Intel WIFI6E / BT 5.2 Module
Audio

Realtek ALC897 HD audio
Video

Intel® UHD Graphics for 12th Gen Intel® Processors, 64EU
HDMI Resolution (Max.)

1x HDMI2.1 with HDCP 2.2
Max Resolution 7680 x 4320@60Hz 1x HDMI2.0a with HDCP 2.2
Max Resolution 3840x2160@60Hz
Mini DP Resolution (Max.)

Mini DP supports : DP1.4a
Max Resolution 3840x2160@60Hz USB 4.0 Type-C DP supports : DP1.4a
Max Resolution 3840x2160@60Hz
Storage

1 x PCI-e Gen4 x 4 /SATA M.2 2280 slot
Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
Front I/O

1 x Power Button
1 x USB 3.2 type C (Gen2)
3 x USB 3.2 type A (Gen2)
1 x head phone jack with MIC
Rear I/O

1 x HDMI(2.1)
1 x HDMI(2.0b)
1 x mDP
1 x USB 4.0 (Support Intel Thunderbolt 4) w/ DP alt mode
2 x USB 2.0 type A
1 x RJ45
1 x DC-In
1 x Kensington lock slot
TPM

Integrate TPM module* (in selected regions /countries)
Power Supply

Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W
VESA

Mounting Bracket Included
Support OS

Windows 11 64Bit
Windows 10 64bit
Environment

Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C
