Усилвател Ferrum WANDLA, 44ohms, Optical S/PDIF-in, Coaxial S/PDIF-in, RCA-in, balanced XLR-out, USB, 768kHz/32-bit декодиране, черен

Ferrum Wandla



prepare to be converted by the real thing!

With WANDLA, we are making a statement to the current and next generation of music lovers. WANDLA represents tomorrow’s standard of high end digital-to-analog conversion. Think of WANDLA like a Formula 1 racing car. Like the F1 constructor’s team building the best racing car, Ferrum created the best engine for The Converter.

Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.











Tech specs:

Operation:	Fully balanced, proprietary IC power amp
DAC chip:	ESS Sabre ES9038PRO
DAC resolution:	768 kHz/32-bit, DSD 256
Digital inputs:	– AES/EBU (up to PCM 192 kHz/24-bit, DoP 64)
	– Optical S/PDIF (up to PCM 96 kHz/24-bit guaranteed; should work up to PCM 192 kHz/24-bit and DoP 64 – depends of user’s optical cable and transmitter)
	– Coaxial S/PDIF (up to PCM 192 kHz/24-bit, DoP 64)
	– USB (up to PCM 768 kHz/32 bit, DSD 256, DoP 256)
	– ARC (up to PCM 192 kHz/24-bit), TV input with CEC
	– I2S (up to PCM 768 kHz/32-bit, DSD 256, DoP 256), PS Audio compatible
MQA:	decoder and renderer (on all digital inputs)
Analog inputs:	RCA
Analog input Vmax:	9,5 V RMS (2–3,5 V RMS recommended)
Analogue input imp:	47 kΩ

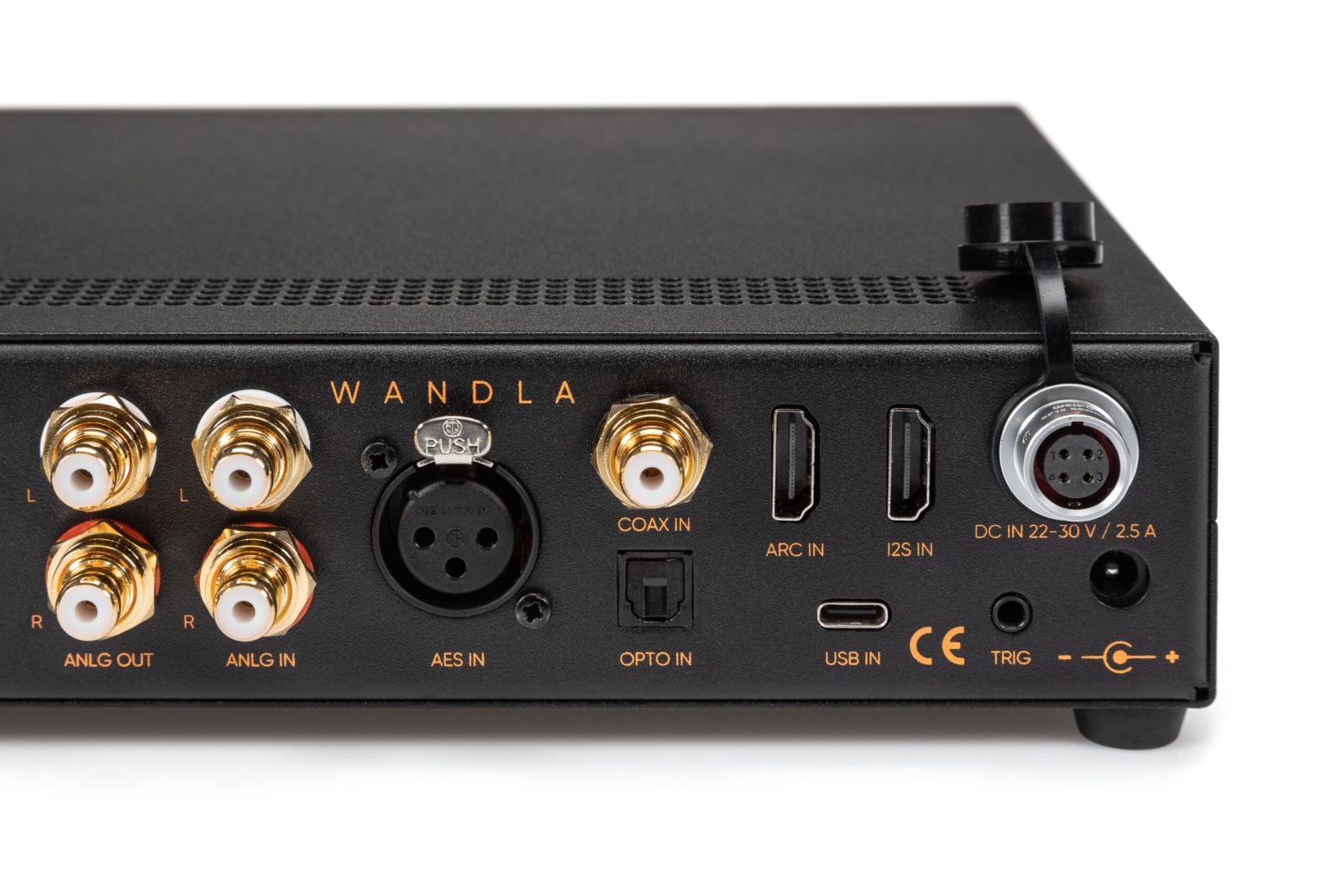

Line outputs:	balanced XLR; unbalanced RCA
Volume control:	analogue with bypass option / digital for DAC operation only
Output level:	@0 dBFS, 1 kHz sine 9,3 V RMS balanced, 4,65 V RMS unbalanced
Frequency response:	10 Hz – 200 kHz +/- 0,1 dB
analog inputs
DAC THD:	-121 dB (0,00009%); THD+N: -115 dB (unweighted)
Analog input THD:	-123 dB @ 2 V RMS output level
Dyn. range analog:	127 dB (A-weighted)
Dyn. range digital:	127 dB (A-weighted)
Crosstalk:	-120 dB for 1 kHz, better than -100 dB for 20 Hz -20 kHz
Output impedance:	22 Ω unbalanced
Output impedance:	44 Ω balanced
Power consumption:	10 W idle / 15 W max
Power inputs:	5,5/2,5 mm DC connector centre positive
	proprietary FPL 4-pin DC connector (FPL)
	22-30 VDC
Power adapter:	100-240 VAC to 24 VDC
Dimensions: (WxDxH)	21,7 x 20,6 x 5 cm
Weight:	1,8 kg
