Name: Дънна платка Elitegroup HDC-I2, AMD FCH A50, AMD E-350 Dual-Core 1.6GHz, DDR3, VGA (HDMI), SB5.1, Lan1000, SATA, Mini-ITX
Brand: Elitegroup
SKU: MBEGROUPHDCI2
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

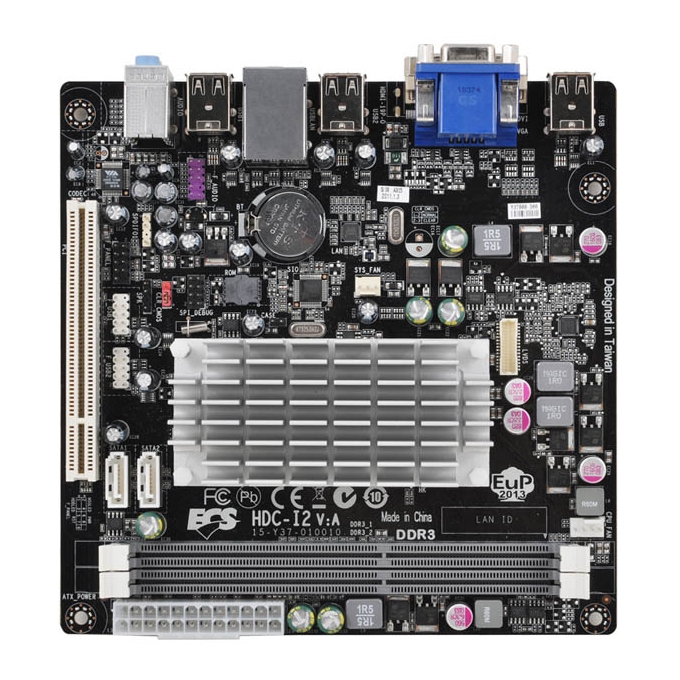

Elitegroup HDC-I2

CPU
AMD Dual-Core Processor E-350

CHIPSET
AMD A45 FCH

GRAPHICS
On APU(ATI™ Radeon HD6310 graphics )
Integrated DirectX 11 graphics processor
Support UVD 3

MEMORY
2 x 240-pin DDR3 DIMM socket support up to 8 GB
Support DDR3 800/1066 SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT
1 x PCI slot

STORAGE
Support by A45
• 2 x Serial ATA 3.0Gb/s devices

AUDIO
VIA® VT1705 6-channel audio CODEC
LAN
Atheros AR8151 GIGA LAN

REAR PANEL I/O
1 x RJ45 LAN connector
1 x Audio port
1 x D-sub(VGA)
8 x USB 2.0 ports
1 x HDMI Port

INTERNAL I/O CONNECTORS & HEADERS
1 x 4-pin CPU_FAN connector
1 x Clear CMOS header
1 x Case Open header
1 x Speaker header
2 x USB 2.0 header support additional 4 USB ports (USB3, USB 4)
1 x F_Audio header
1 x SPDIF out header
1 x F_Panel header

SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM

FORM FACTOR
Mini ITX 170x170mm
