5P650IRG2-L

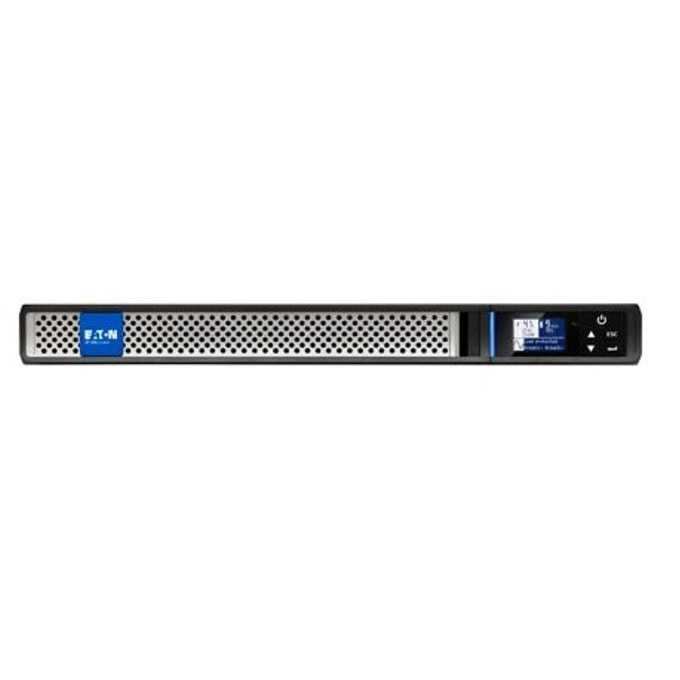

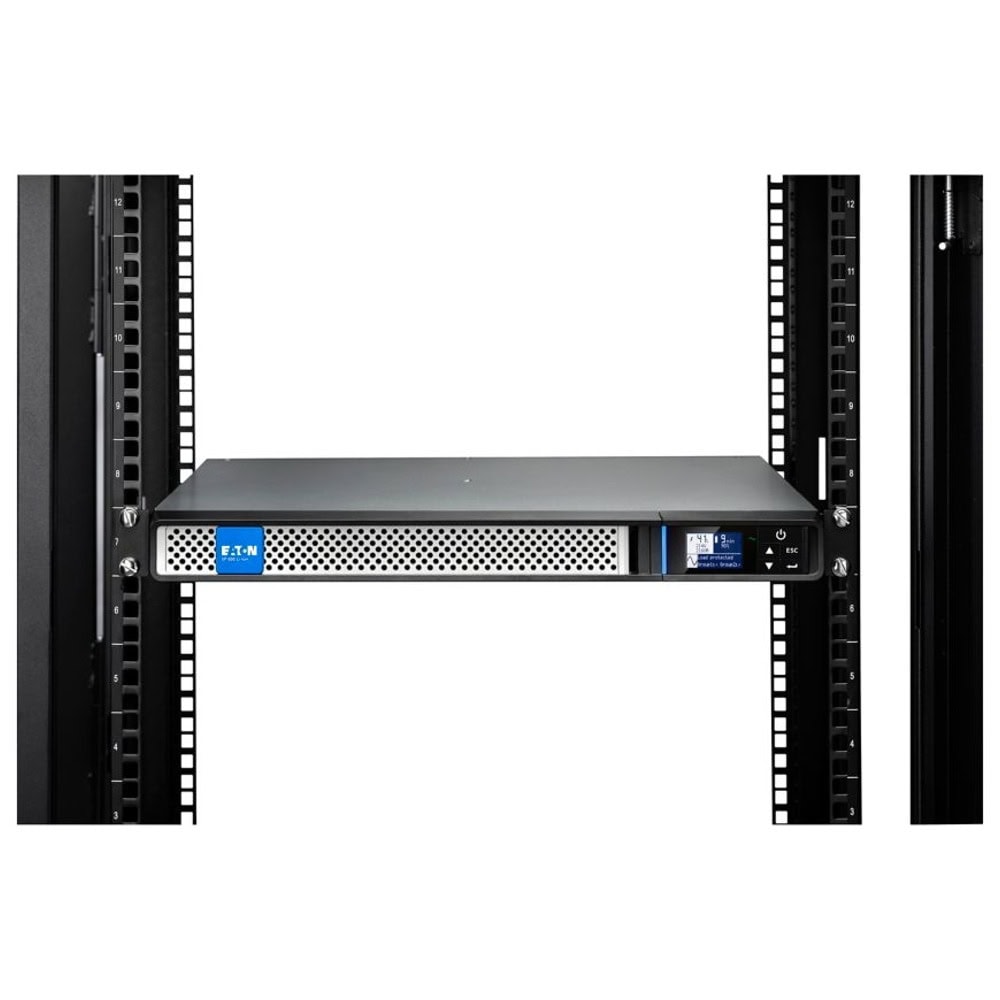

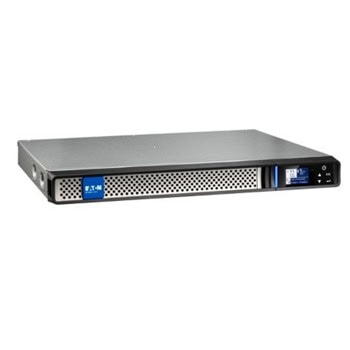

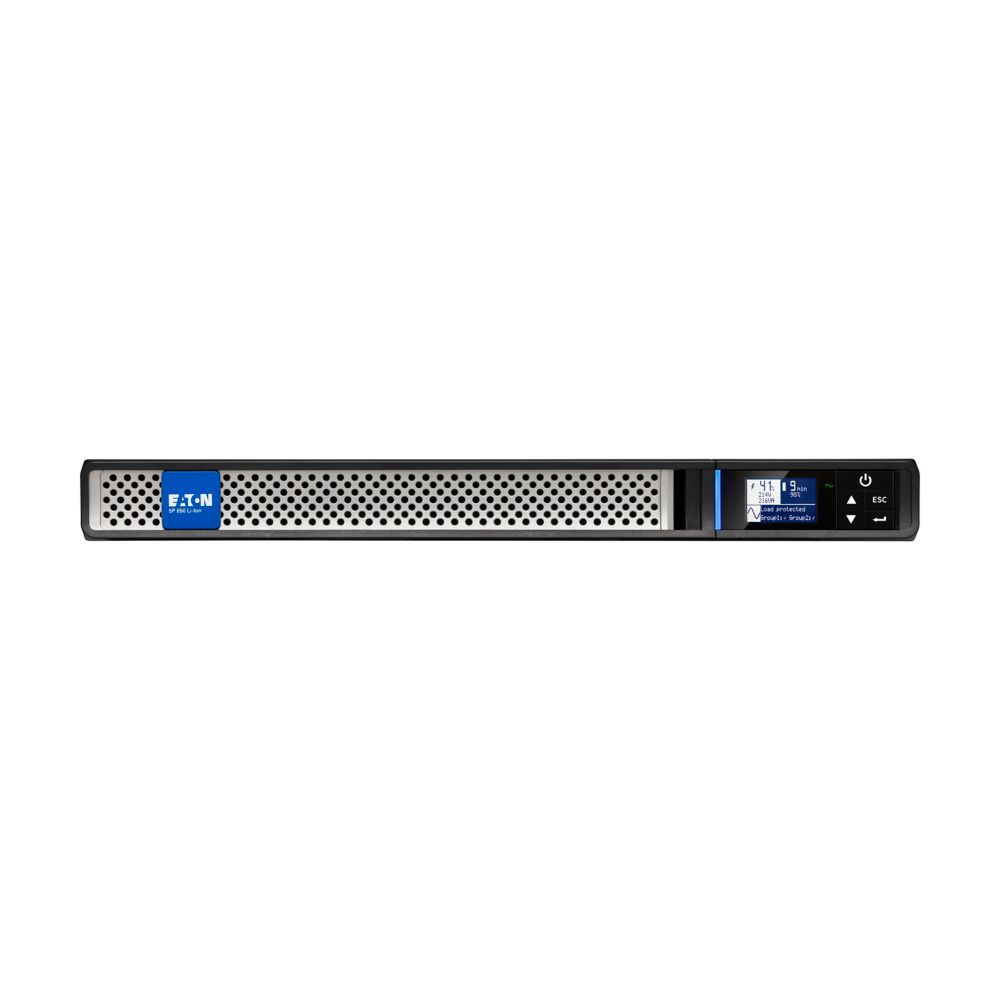

Eaton 5P Gen2 Lithium UPS, 650 VA, 520 W, Input: C14, Outputs: (6) C13, Rack, 1U

| Specification | Detail |
|---|---|
| Special features | Automatic Voltage Regulation (AVR)
High-density protection for networks: 1U only
Short depth
Lithium battery for reduced TCO
Energy efficient, reduce energy and cooling costs
Delivers clean sinewave output
1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Fully integrates with Eaton Brightlayer Software suite
1 USB port + 1 serial port
Battery Management System (BMS) technology provides battery information (SoH, SoC)
Next-generation graphical LCD display
Remote reboot and runtime optimization thanks to 2 manageable outlet groups |
| Topology | Line-interactive |
| Rack size | 1U |
| Construction type | 482.6 mm (19 inch) device |
| Color | Black/silver |
| Enclosure | Black/silver |
| VA rating | 650 VA |
| Wattage | 520 W |
| Rack mounting kit | Yes |
| Package contents | Rack-mounting kit
Cable locking system
USB cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 47 Hz |
| Input connection | C14 |
| Nominal frequency | 50-60 Hz |
| Input frequency range | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode |

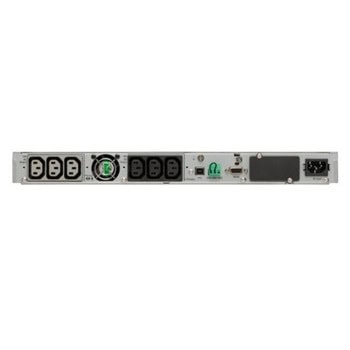

| Number of Outputs C13 | 6 |
| Output waveform | Sine wave |
| Voltage | 230V |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Voltage type | AC |
| Runtime graph | View runtime graph |
| Battery management | Advanced BMS (Battery Management System) |
| Battery rating | 9Ah |
| Battery type | Lithium-ion |
| Extended battery capability | No |
| Runtime at half load | 15 min |
| Communication | USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off |
| Expansion slots | One slot for optional communication card |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Brightlayer Software suite |

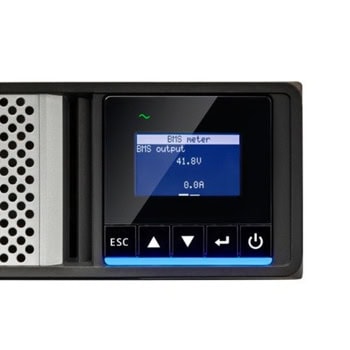

| User interface | Multilingual graphical LCD display |
| Type of interface | LCD Display with blue backlight |
| Potential free switch contact | Yes |
| Altitude | 3000 m |
| BTU Rating | Online: 22, Battery: 284 BTU/hr |
| Noise level | <30 dB at 1 meter |
| Relative humidity | 0-95% non-condensing |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Input voltage - max | 300 V |
| Input voltage - min | 110 V |
| Output voltage - max | 240 V |
| Output voltage - min | 200 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 12 |
| Efficiency at max. load | 98.8 |
| Input voltage range | 160-300 V (adjustable to 150 V-300 V) |
| Output frequency | 50/60 Hz |
| Output power factor | 0.8 |
| Output voltage range | 230 V (+6%/-10%) |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 7.6 |
| Communication interface | RS232
USB |
| Form factor | Rack |
| Power consumption | 6 W |
| USB interface | Yes |
| With communication interface RS-232 | Yes |
| Input Nominal Voltage | 230V default (200/208/220/230/240V) |
