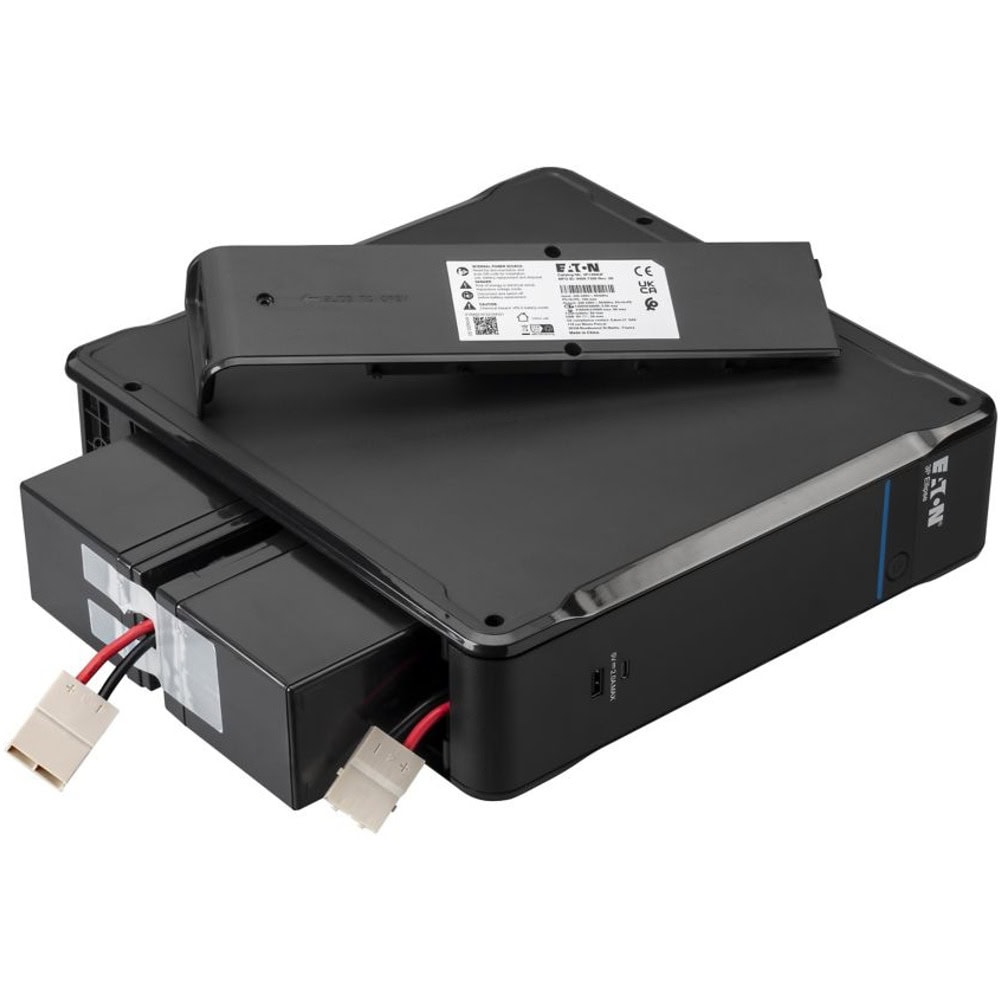

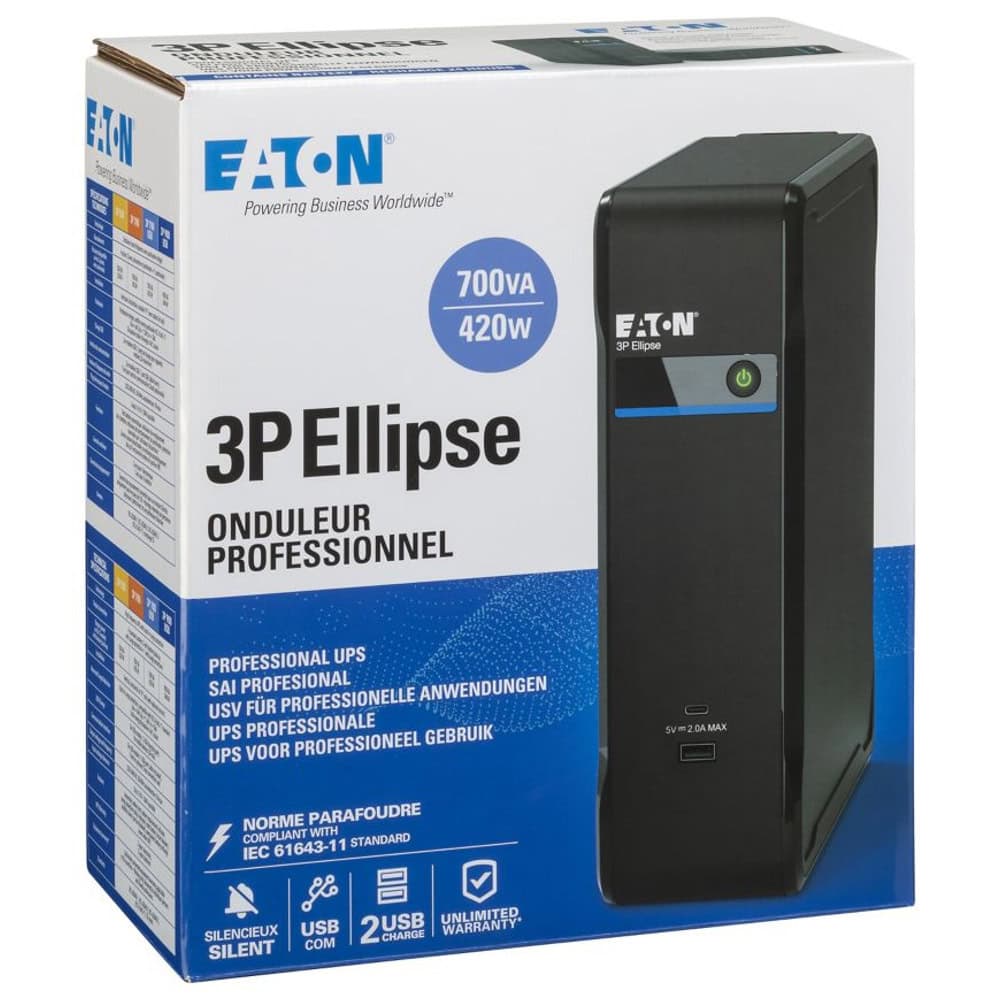

3P700UD

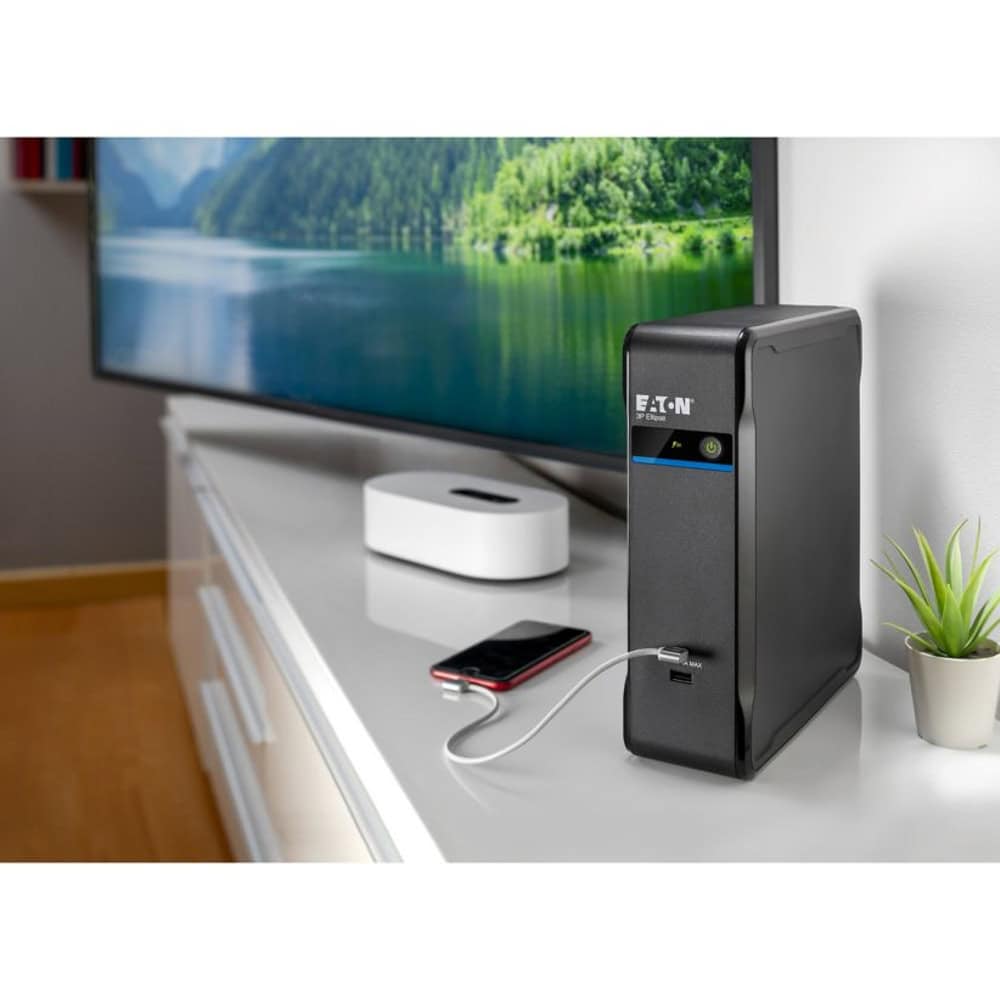

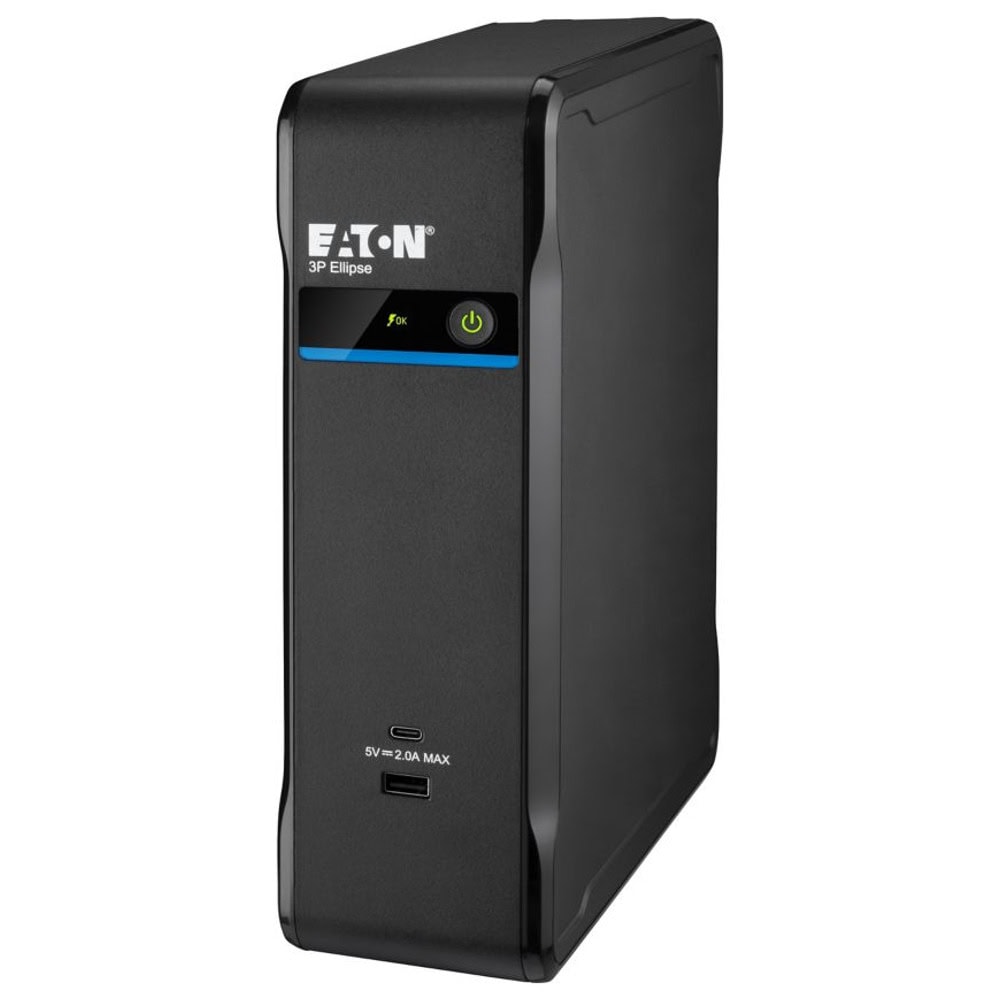

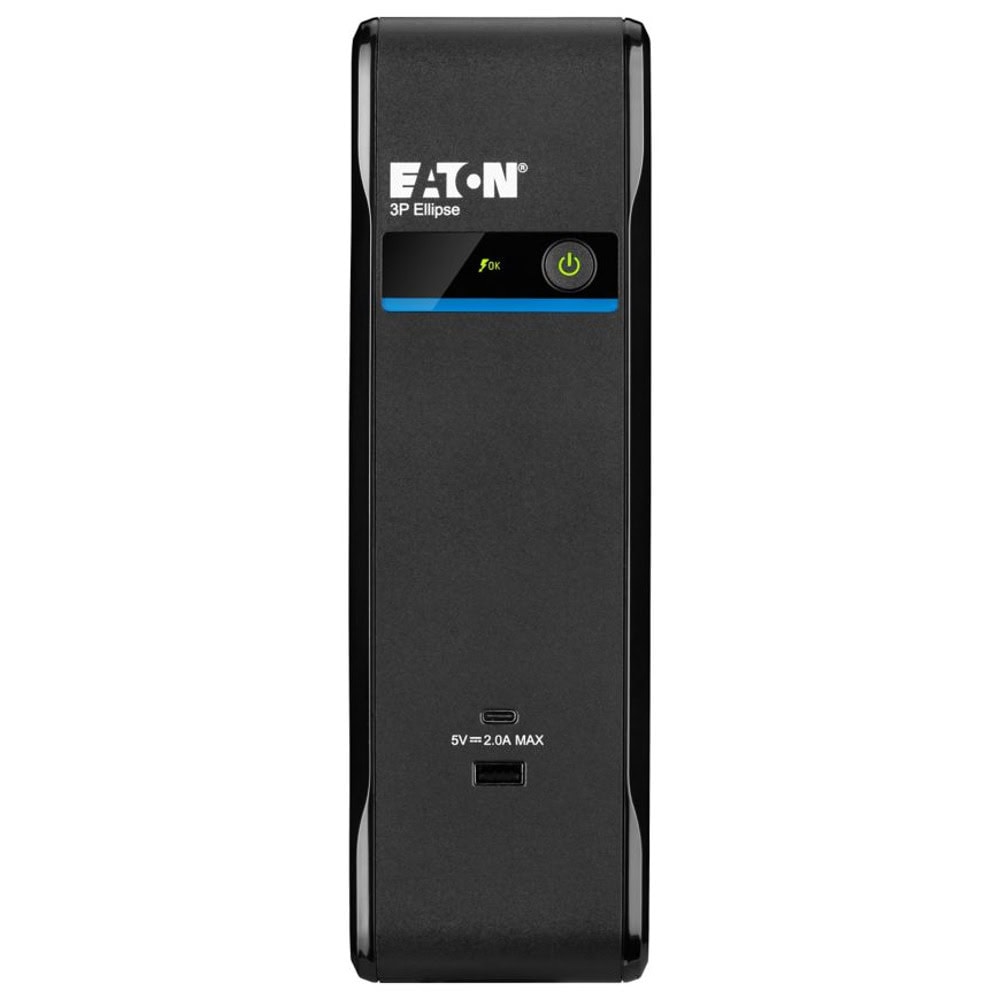

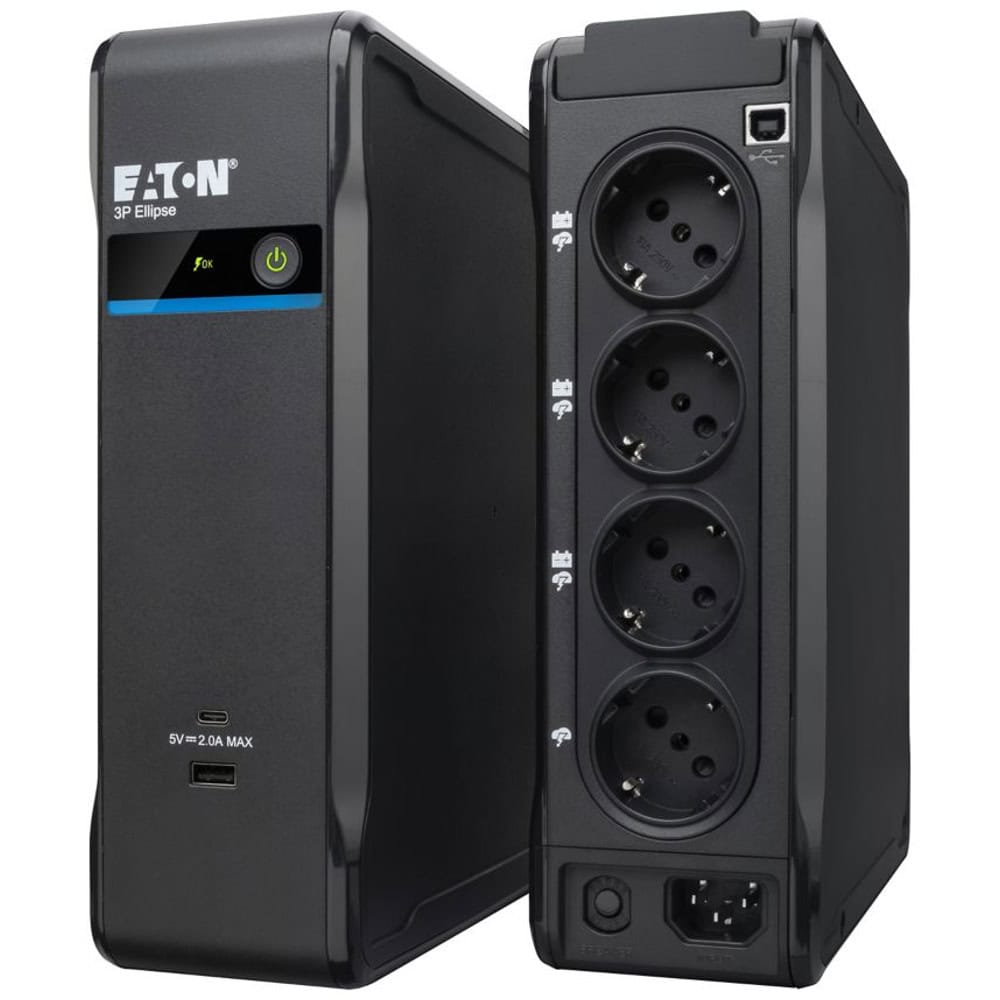

Eaton 3P Ellipse UPS USB DIN, 700 VA, 420 W, Input: C14, Outputs: (3) Schuko, (1) Schuko surge only, USB charge, Tower
| Special features |
|
| Topology | Offline |

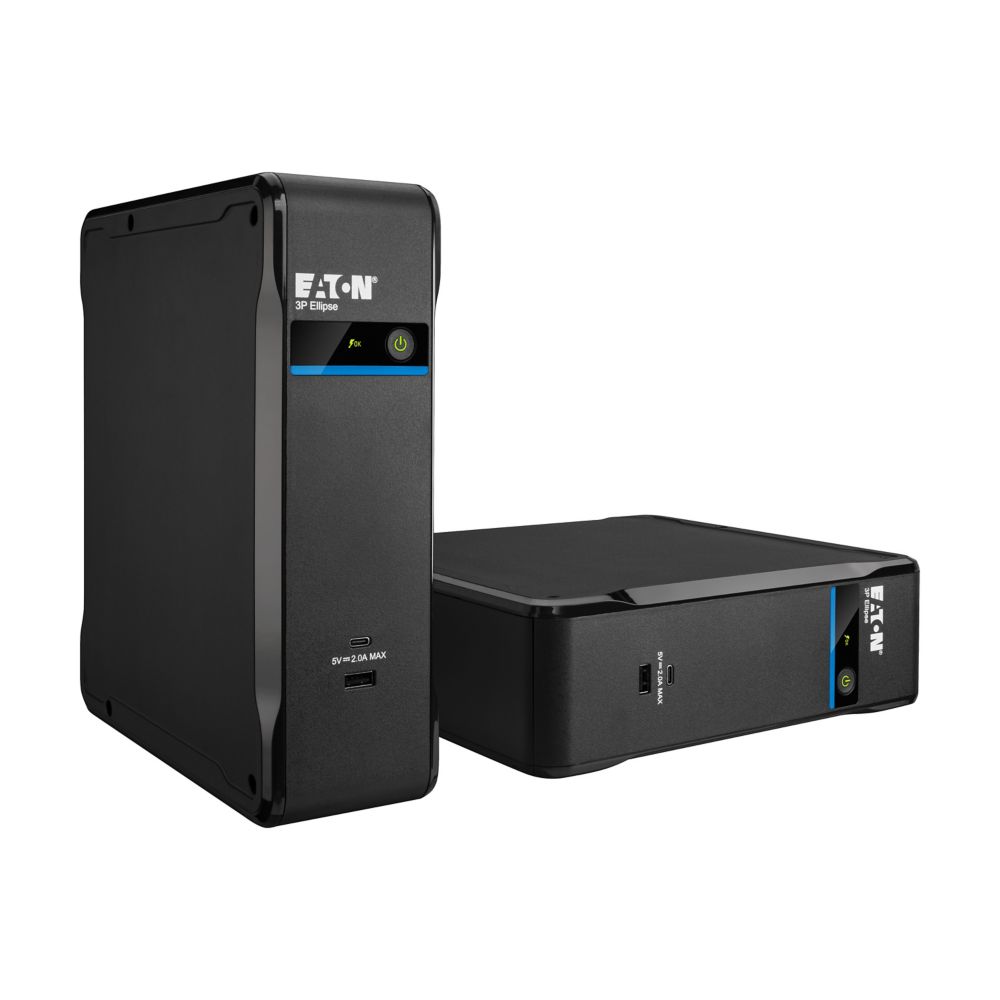

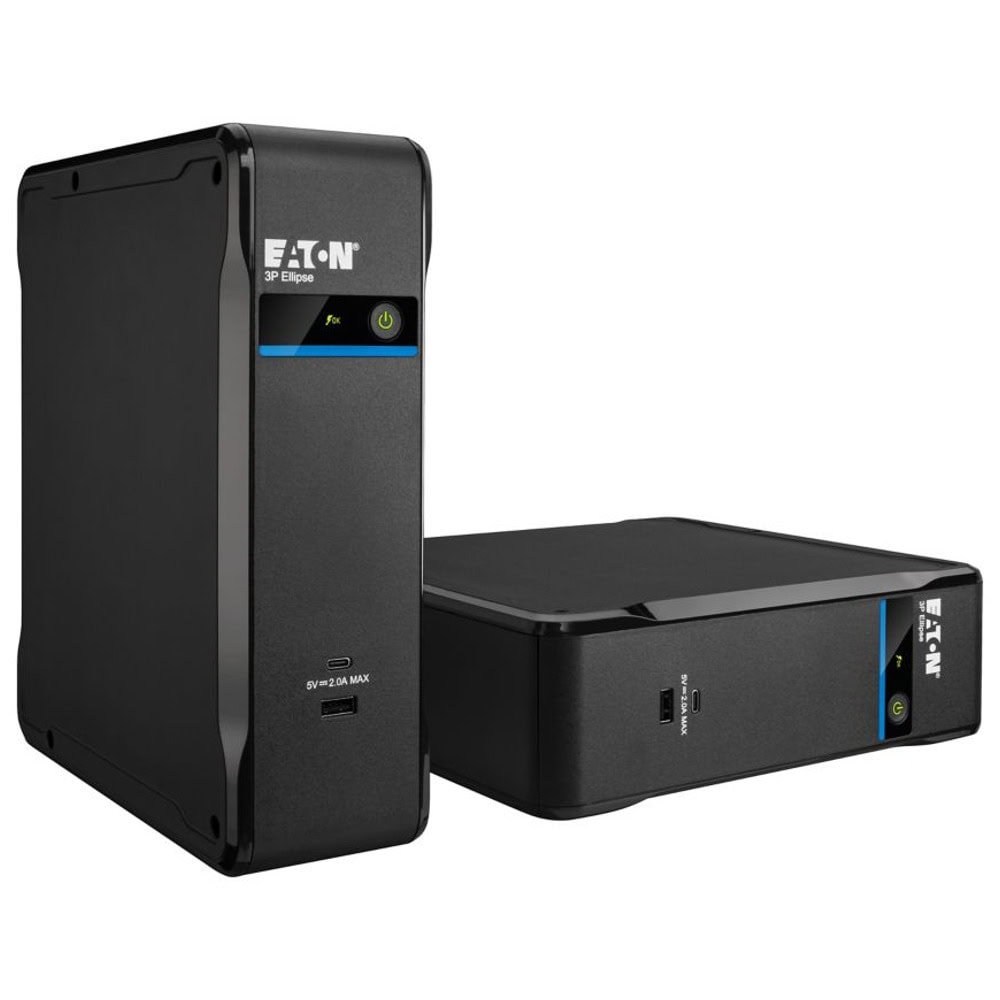

| Construction type | Free standing model |
| Color | Black |
| VA rating | 700 VA |
| Wattage | 420 W |

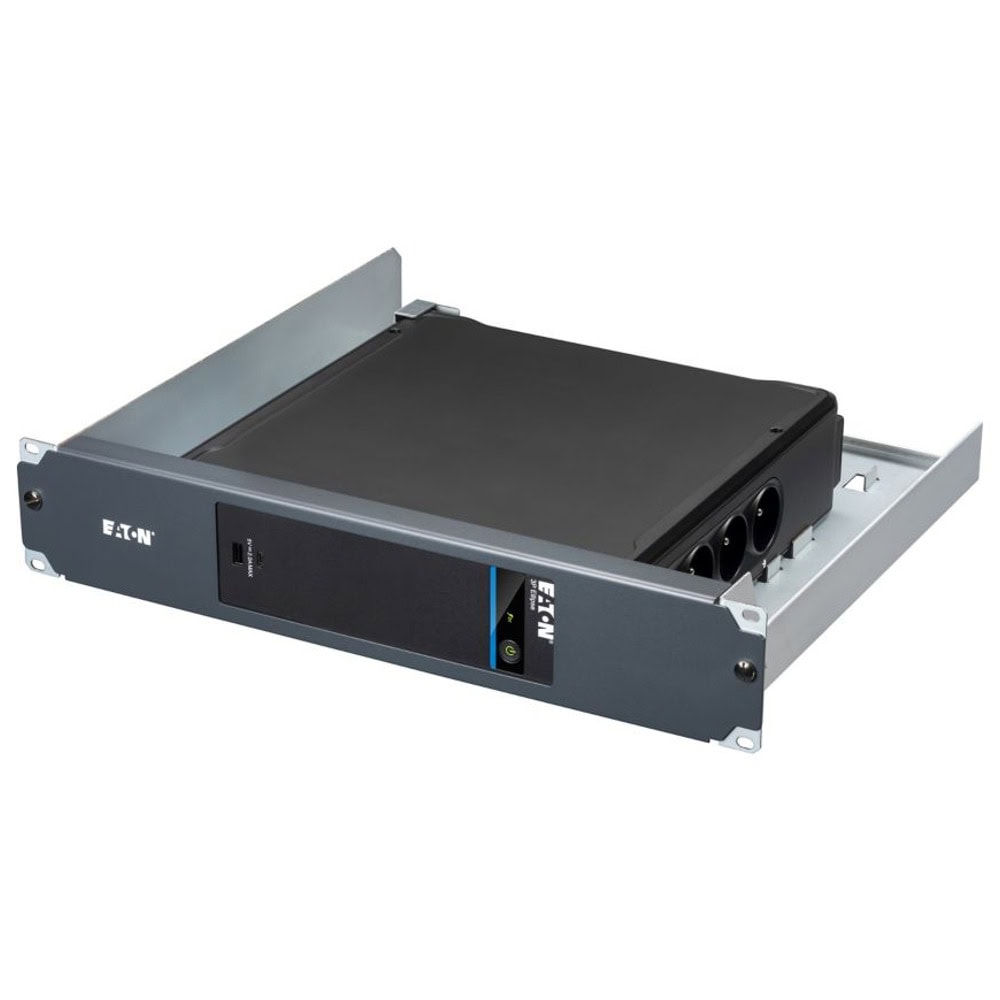

| Rack mounting kit | No |
| Surge protection | Yes |
| Auto shutdown function | Yes |
| Primary frequency - max | 70 Hz |
| Primary frequency - min | 46 Hz |
| Input connection | C14 |
| Input cord length | 1.5 m |
| Input nominal voltage | 230V default (220/230/240V) |
| Nominal frequency | 50-60 Hz |
| Input frequency range | 46-70 Hz |

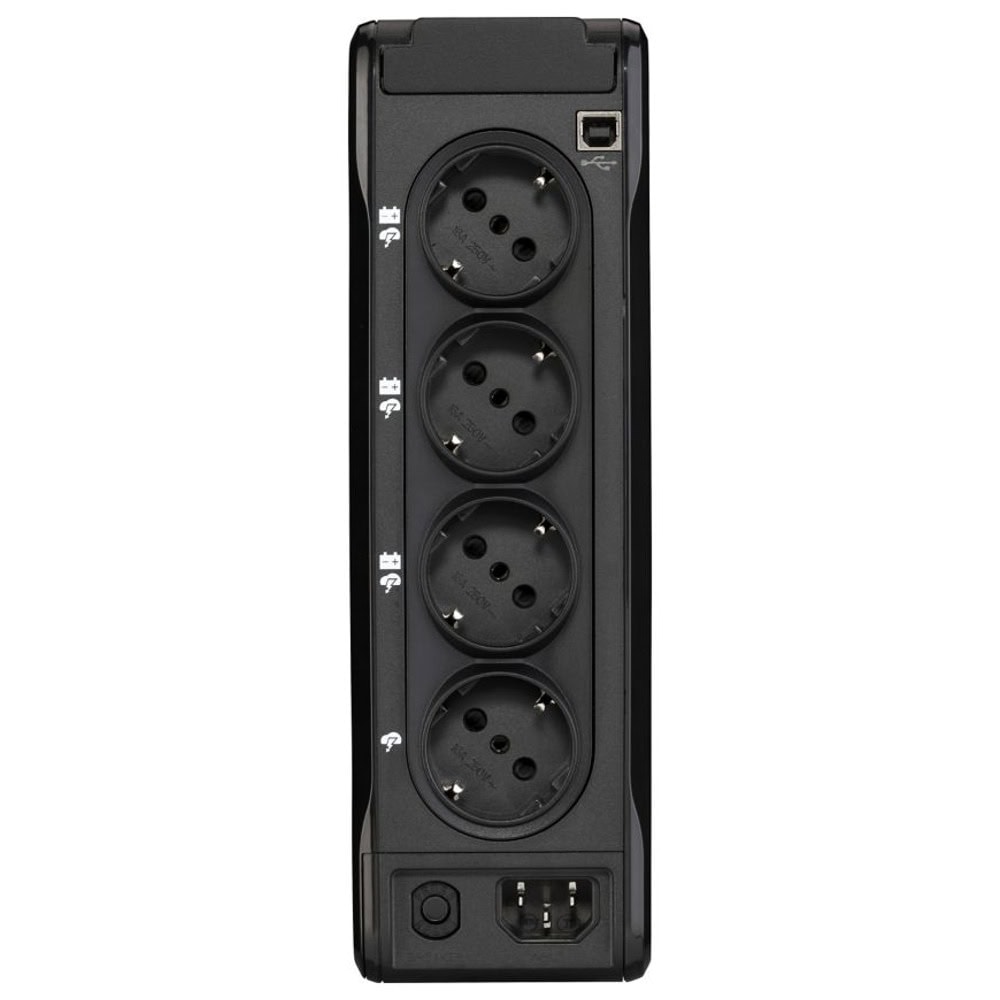

| Receptacle | (3) Schuko, (1) Schuko surge only |
| Num of Outputs PC (SCHUKO) | 4 |
| Voltage | 230V |
| Output nominal voltage | 230V default (220/230/240V) |
| Feed type | 1 |
| Voltage type | AC |
| Runtime graph | View runtime graph |
| Battery management | Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable |
| Battery rating | 12 V / 7 Ah |
| Battery type | Sealed, lead-acid |
| Extended battery capability | No |
| Runtime at half load | 8.5 min |
| Communication | USB port (HID compliant) |
| Expansion slots | Yes |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) |
| User interface | LED display |
| Type of interface | USB |
| Potential free switch contact | No |
| Altitude | 3000 m |
| Noise level | <25 dB at 1 meter |
| Relative humidity | 0 - 95 % (non-condensing) |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Operating temperature - max | 40 °C |
| Operating temperature - min | 0 °C |
| Output apparent power | 700 VA |
| Input voltage - max | 284 V |
| Input voltage - min | 161 V |
| Output voltage - max | 284 V |
| Output voltage - min | 161 V |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Battery quantity | 1 |
| Efficiency at max. load | 97 |
| Efficiency (eco-mode) | 97 |
| Input voltage range | 184-264 V (adjustable to 161-284 V) |
| Output frequency | 50/60 Hz |
| Output power factor | 0.6 |
| Output voltage range | 184-264 V (adjustable to 161-284 V) |
| Phase (input) | 1 |
| Phase (output) | 1 |
| Runtime at full load | 1,5 |
| Communication interface | USB |
| Power consumption | 13 W |
| USB interface | Yes |
Виж още UPS Eaton
Виж всички UPS в категорията
Документация
Ръководство на потребителя за Eaton 3P Ellipse.pdfТехнически характеристики
| Изходяща мощност: | 700 VA |
|---|---|
| Тип: | OFF Line |
| Формфактор: | Tower |
