Name: UPS Eaton 3P Ellipse 700 DIN, 700VA/420W, OFF Line, Tower
Brand: Eaton
SKU: UPSEATON3P700D
Price: 123.14 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

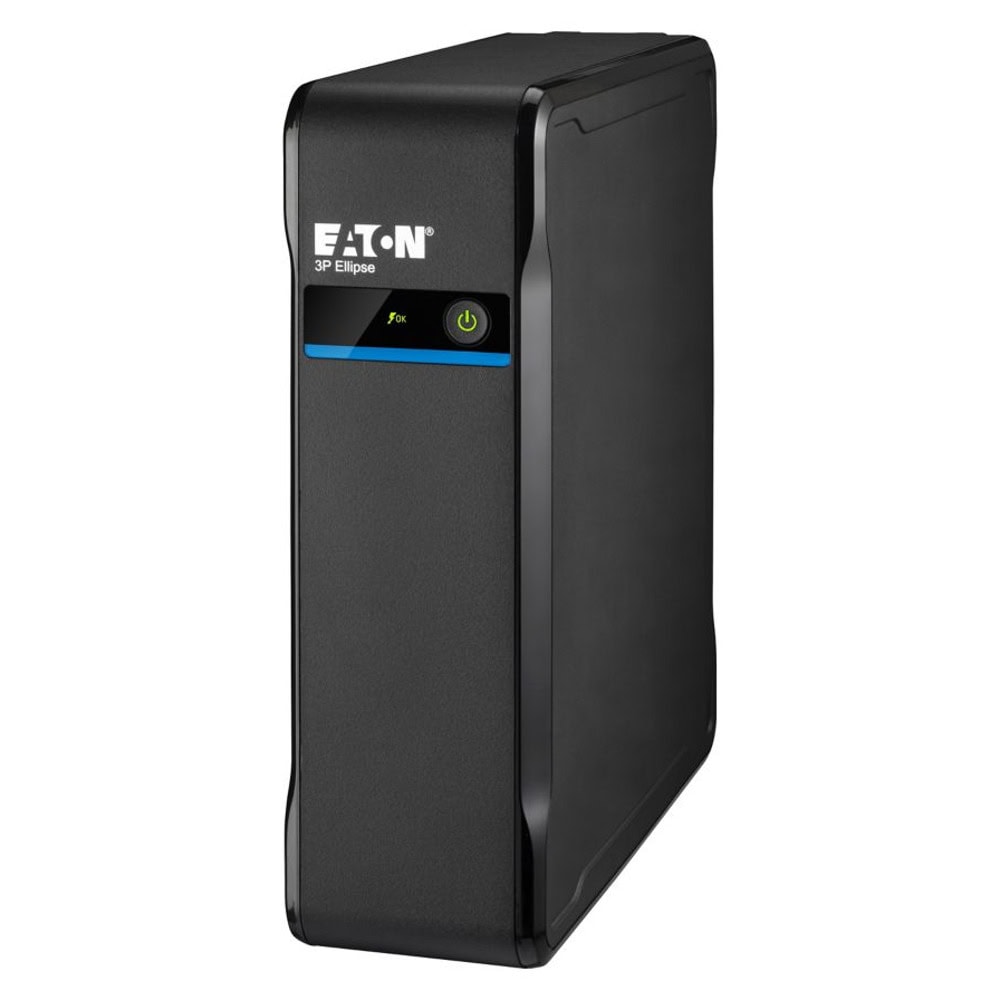

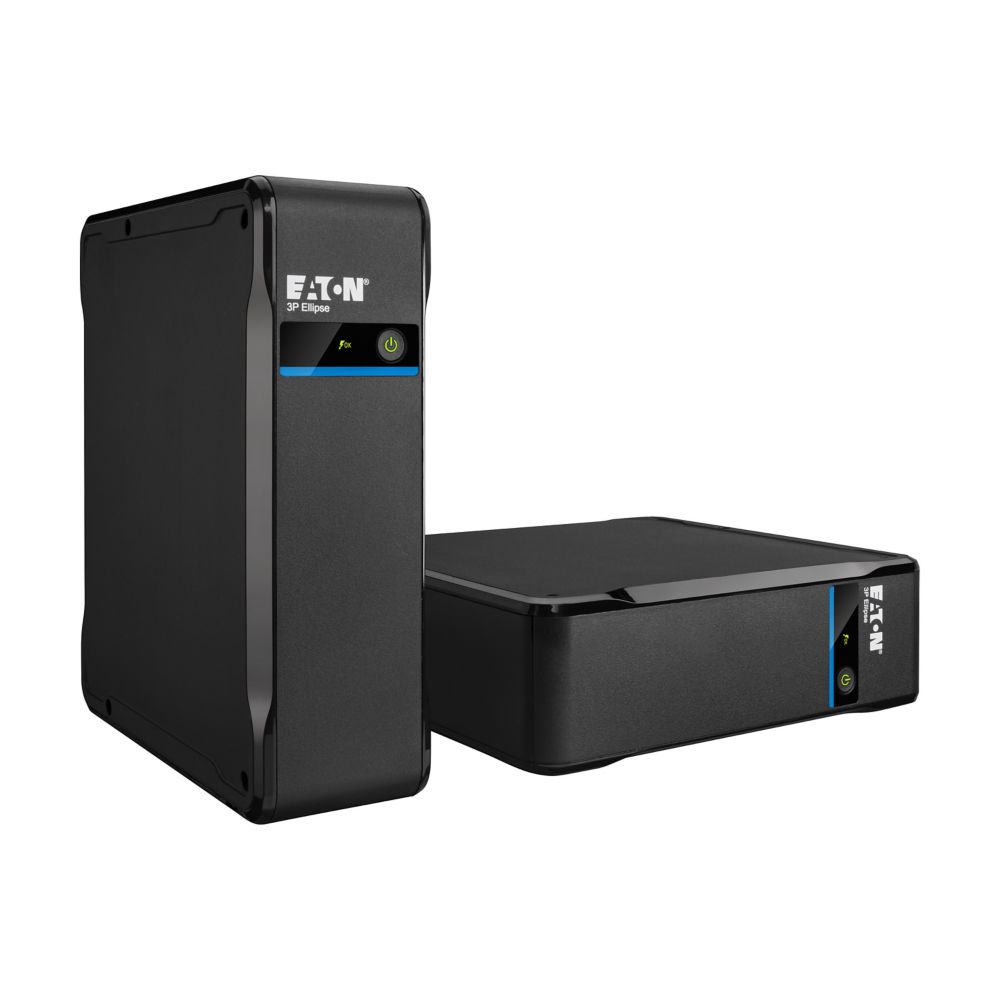

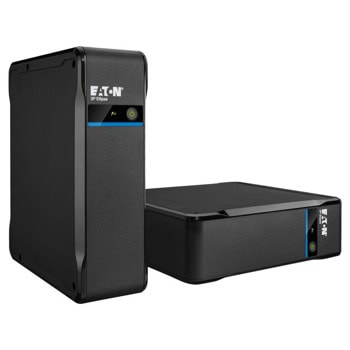

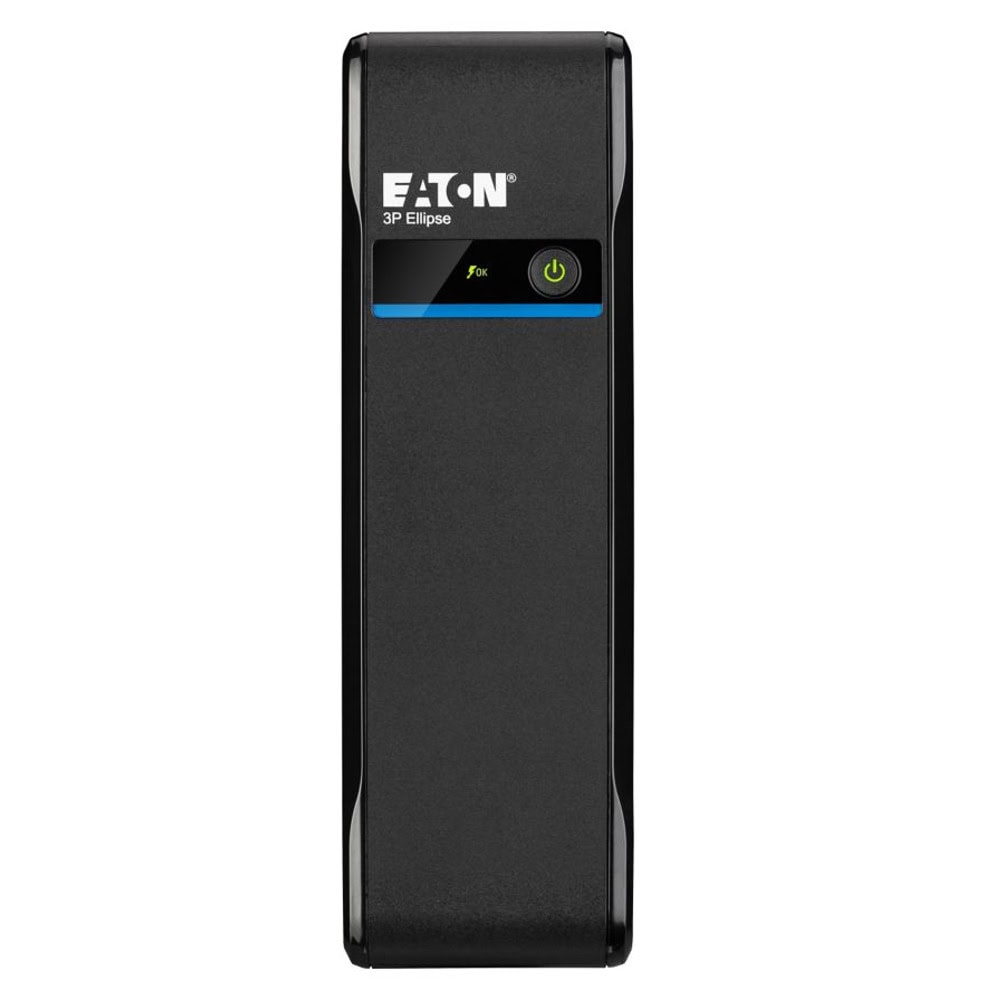

Eaton 3P Ellipse 700 DIN 3P700D

Eaton 3P Ellipse UPS DIN, 700 VA, 420 W, Input: C14, Outputs: (3) Schuko, (1) Schuko surge only, Tower

Specification	Value
Special features	Convenient extra-flat design for easy installation in any office environment
Surge-protection device standard	High performance surge-protection device compliant with IEC 61643-11 standard
Outlets	4 outlets to connect your PC + peripherals
Battery maintenance	Easy to replace battery helps to extend UPS service life
Topology	Offline
Construction type	Free standing model
Color	Black
VA rating	700 VA
Wattage	420 W
Rack mounting kit	No
Package contents	Input cable Quick start Safety instructions
Surge protection	Yes
Auto shutdown function	No
Primary frequency - max	70 Hz
Primary frequency - min	46 Hz
Input connection	C14
Input cord length	1.5 m
Nominal frequency	50-60 Hz
Input frequency range	46-70 Hz

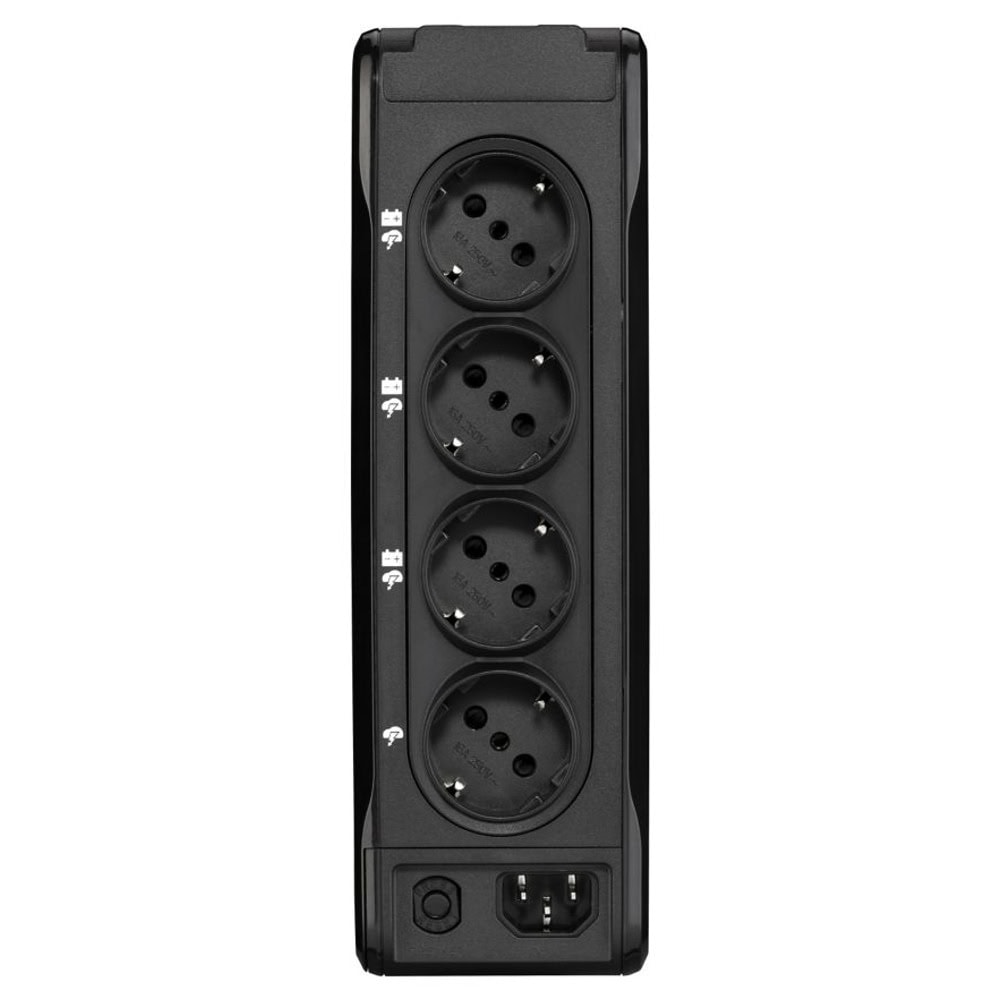

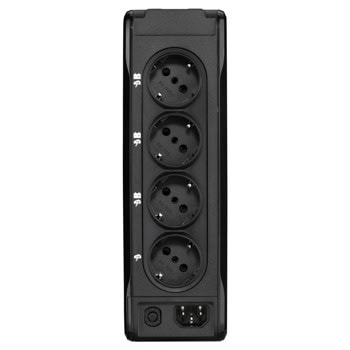

Receptacle	(3) Schuko, (1) Schuko surge only
Num of Outputs PC (SCHUKO)	4
Voltage	230V
Output nominal voltage	230V default (220/230/240V)
Feed type	1
Voltage type	AC
Runtime graph	View runtime graph
Battery management	Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Battery rating	12 V / 7 Ah
Battery type	Valve Regulated Lead Acid (VRLA)
Extended battery capability	No
Runtime at half load	8.5 min
Expansion slots	No
Ethernet interface	No
Includes network card	No
User interface	LED display
Type of interface	None
Potential free switch contact	No
Altitude	3000 m
Noise level	<25 dB at 1 meter
Relative humidity	0 - 95 % (non-condensing)
Temperature range	0° to 40°C (32° to 104°F)
Operating temperature - max	40 °C
Operating temperature - min	0 °C
Output apparent power	700 VA
Input voltage - max	284 V
Input voltage - min	161 V
Output voltage - max	284 V
Output voltage - min	161 V
Secondary frequency - max	60 Hz
Secondary frequency - min	50 Hz
Battery quantity	1
Efficiency at max. load	97
Efficiency (eco-mode)	97
Input voltage range	184-264 V (adjustable to 161-284 V)
Output frequency	50/60 Hz
Output power factor	0.6
Output voltage range	184-264 V (adjustable to 161-284 V)
Phase (input)	1
Phase (output)	1
Runtime at full load	1,5
Power consumption	13 W
USB interface	No
Input Nominal Voltage	230V default (220/230/240V)
