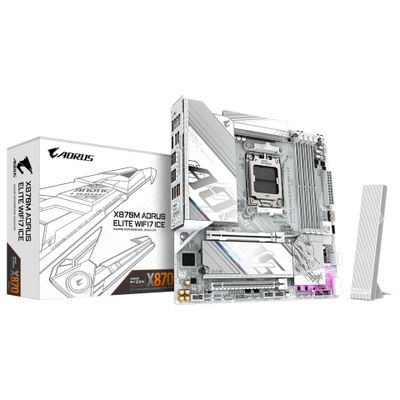

Name: Дънна платка AORUS X870M ELITE WIFI7 ICE - motherboard - micro ATX - Socket AM5 - AMD X870
Price: 332.39 EUR
Availability: InStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Chipset Type	AMD X870
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC
Supported RAM Speed	7200 MT/s (O.C.), 4800 MT/s, 8000 MT/s (O.C.), 8200 MT/s (O.C.), 7000 MT/s (O.C.), 6400 MT/s (O.C.), 6800 MT/s (O.C.), 4400 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6600 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.)
Processor Socket	Socket AM5
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	256 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio Codec	Realtek ALC1220
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller	Realtek RTL8922AE
Network	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Слотове за разширение
Expansion Slots	1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22110 M.2 Key M slot), 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)
Интерфейси
Storage Interfaces	PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
Storage Ports	2 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	2 x USB4 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO, GIGABYTE Smart Backup
Размери и Тегло
Width	24,4 cm
Depth	24,4 cm
