DVR платка GeoVision GV-600 BNC, 4 видео/4 аудио входа, MPEG4 / H.264 компресия

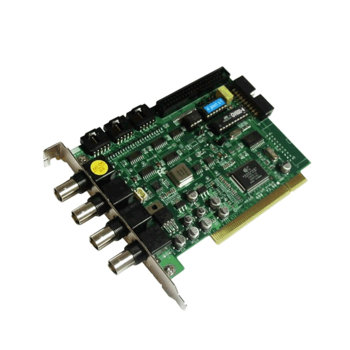

GeoVision GV-600 BNC

Input Type - BNC X 4
Video Input(s) - 4 Cams
Audio Input(s) - 1 Channel
Total Recording Rate At 320 X 240 Resolution - 30 fps (NTSC), 25 fps (PAL)
Display Rate - 30 fps (NTSC), 25 fps (PAL)
Video Resolution - NTSC/PAL - Full D1, Half D1, CIF
Compression Format - Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
GV-A16 Support - Yes
GV-NET Card Support - Yes
GV-NET/IO Card Support - Yes
Dimensions (W x H) - 144 x 89 (mm) / 5.67 x 3.50 (in)

Note: GV-600 is currently not compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system.

Minimum System Requirements For One Card

OS Supported - Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista (Not support 64-bit version of Windows)
CPU - Pentium 4-2.0 GHz
RAM - Windows 2000 / XP: 2 x 512 MB Dual Channels, Windows Vista / Server 2003: 2 x 1 GB Dual Channels
HDD - 80 GB
VGA - ATI Radeon X600, NVIDIA 6200
DirectX - 9.0c

Minimum System Requirements For Two Cards

OS Supported - Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista (Not support 64-bit version of Windows)
CPU - Pentium 4-2.6 GHz with Hyper-threading
RAM - 2 x 1 GB Dual Channels
HDD - 160 GB
VGA - ATI Radeon X600, NVIDIA 6200
DirectX - 9.0c
