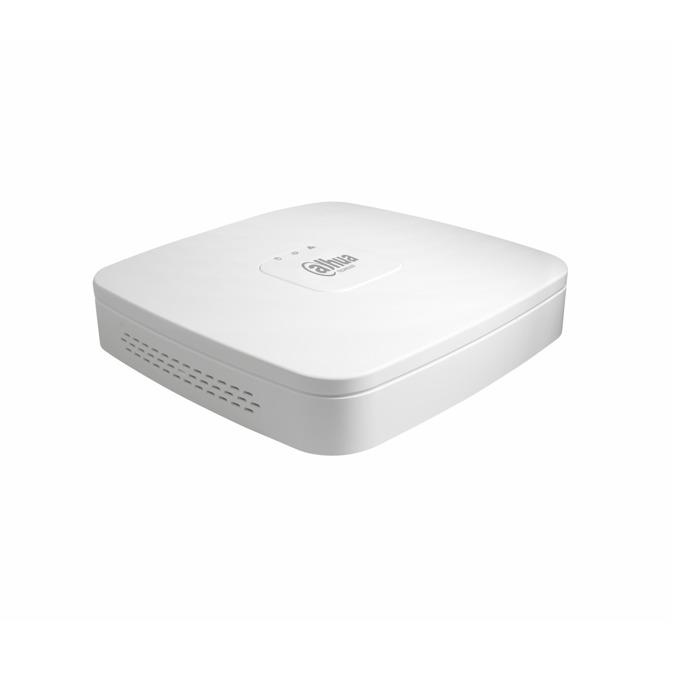

Хибриден видеорекордер Dahua XVR5104C-4M, 4 канала, H.264+/H.264, 1x SATA, 2x USB 2.0, 1x RJ-45, 1x HDMI, 1x VGA

System
Main Processor:
Embedded Processor
Operating System:
Embedded LINUX

Video and Audio
Analog Camera Input
4 Channel, BNC
HDCVI Camera
4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera
5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera
5MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4+2 Channel, each channel up to 5MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/out, RCA

Recording
Compression
H.264+/H.264
Resolution
4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate
Main stream:
4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Sub steram:960H(1~12fps);
D1/CIF/QCIF(1~25/30fps)
Bit Rate
1Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Display
Interface
1 HDMI, 1 VGA
Resolution
2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network
Interface
1 RJ-45 Port (100M)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 2.42, CGI Conformant

Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Alarm input
Motion Detection, MD Zones: 396 (22 × 18), Video Loss , Tampering and Diagnosis

Playback and Backup
Playback
1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network

Storage
Internal HDD
1 SATA Port, up to 8TB capacity

Auxiliary Interface
USB
2 USB Ports (2 USB 2.0)

Electrical
Power Supply
DC12V/2A
Power Consumption
<10W (Without HDD)

Construction
Dimensions
Smart 1U, 205mm×211mm×45mm (8.1“×8.3”×1.8“)
Net Weight
0.55kg (1.2lb) (without HDD)
Gross Weight
1kg (2.2lb)
Installation
Desktop installation

Environmental
Operating Conditions
-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
UL: UL 60950-1
