Оптичен пач кабел Cisco SFP-H25G-CU5M=, SFP28 към SFP28, 26AWG, 25Gbps, 5m

SFP-H25G-CU5M=

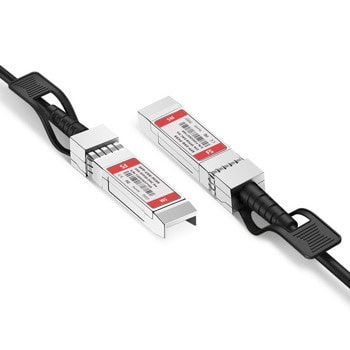

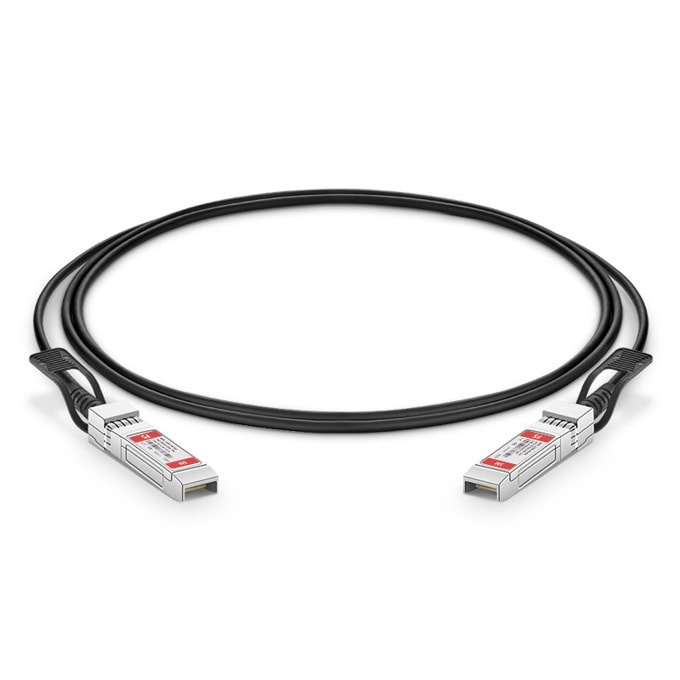

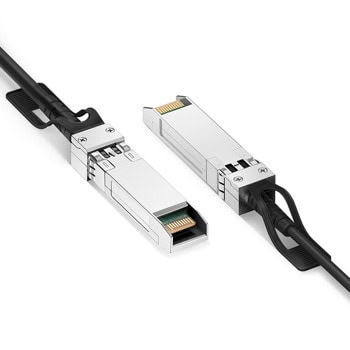

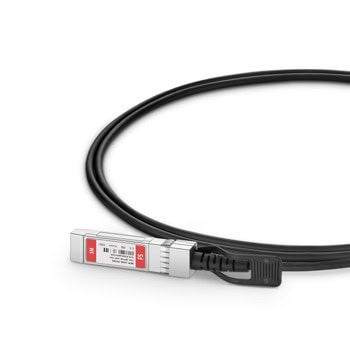

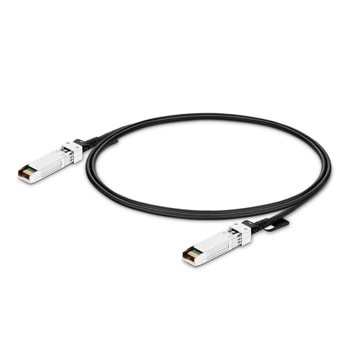

Cisco SFP-H25G-CU5M Compatible 25G SFP28 DAC Cable (5-meter, Passive, SFP28 to SFP28, 26AWG)

The Cisco SFP-H25G-CU5M Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable is designed for use in 25GBASE Ethernet. This cable is compliant with IEEE P802.3 by Ethernet standard and SFP28 MSA Compliant. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system. With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.
Note: The FS P/N is changed from S28-PC05 to SFP-25G-PC05, but the product is the same. Only the FS P/N has been changed.

Specifications

Connector Type

SFP28 to SFP28

Max Data Rate

25Gbps

Minimum Bend Radius

28mm

Wire AWG

26AWG

Cable Length

5m (16.4ft)

Jacket Material

PVC (OFNR)

Typical Power Consumption

≤0.5W

Power Supply

3.3V

Temperature

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
