Оптичен пач кабел Cisco SFP-H25G-CU3M=, SFP28 към SFP28, 30AWG, 25Gbps, 3m

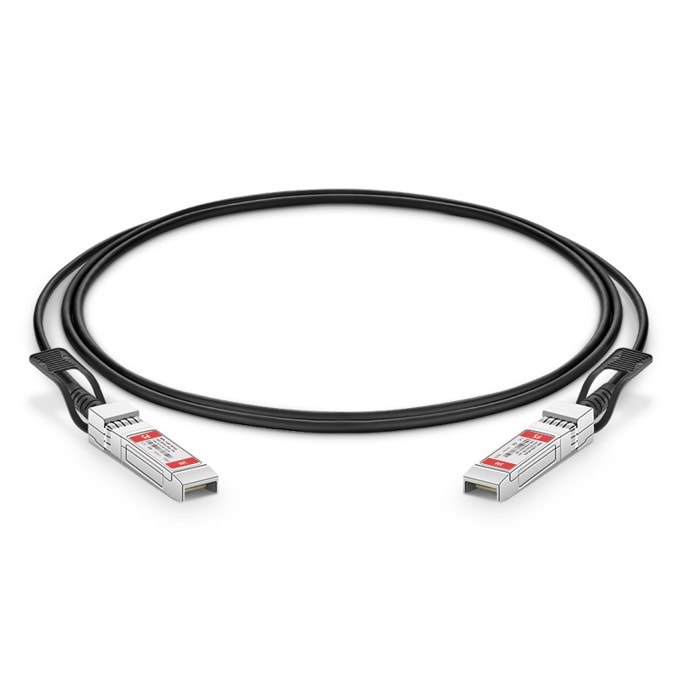

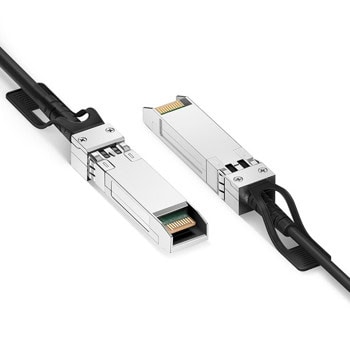

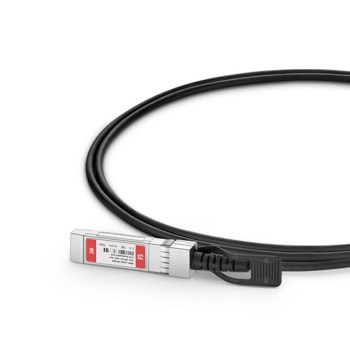

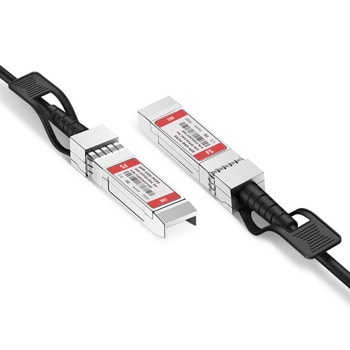

Cisco SFP-H25G-CU3M Compatible 25G SFP28 DAC Cable (3-meter, Passive, SFP28 to SFP28, 30AWG)

The Cisco SFP-H25G-CU3M Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable is designed for use in 25GBASE Ethernet. This cable is compliant with IEEE P802.3by Ethernet standard and SFP28 MSA Compliant. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system. With these features, this easy to install, high speed, cost-effective direct attach copper twinax cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.
Note: The FS P/N is changed from S28-PC03 to SFP-25G-PC03, but the product is the same. Only the FS P/N has been changed.

Specifications

Vendor Name

FS

Connector Type

SFP28 to SFP28

Max Data Rate

25Gbps

Minimum Bend Radius

21.25mm

Wire AWG

30AWG

Cable Length

3m (9.84ft)

Jacket Material

PVC (OFNR)

Typical Power Consumption

≤0.5W

Power Supply

3.3V

Temperature

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
