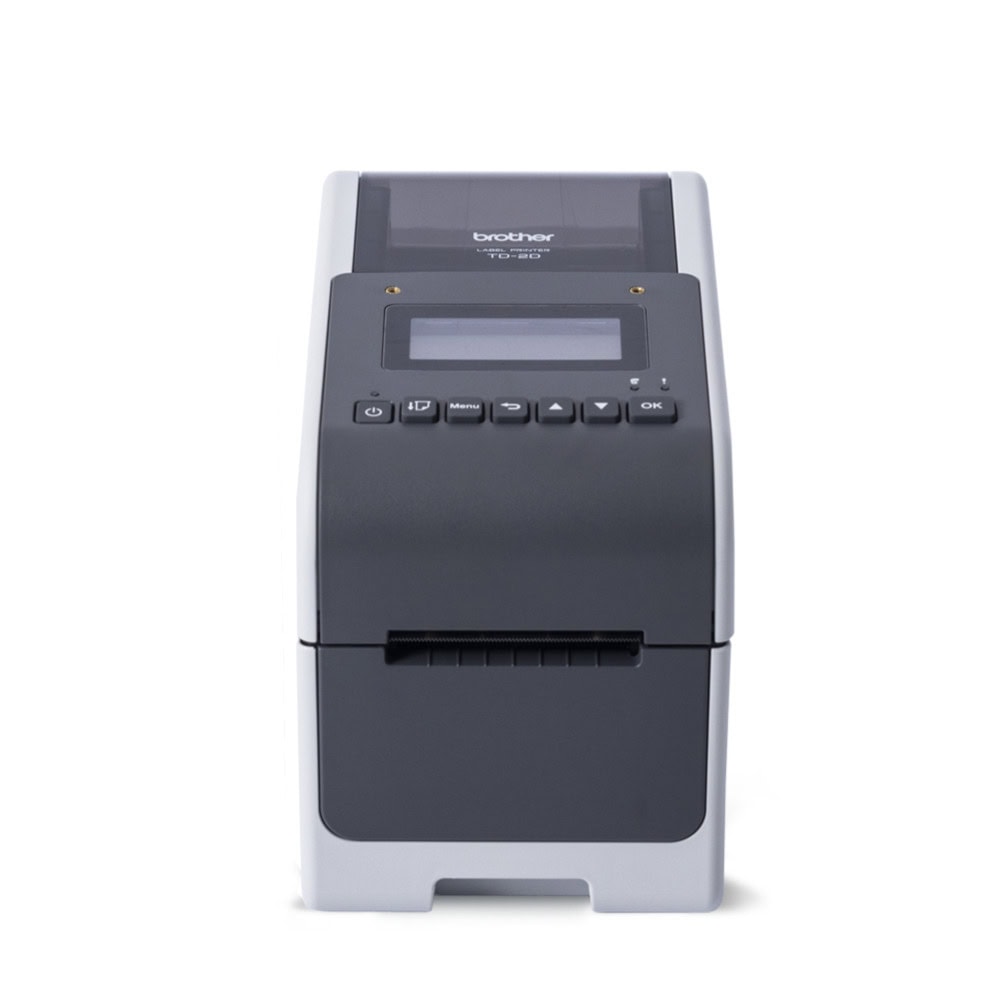

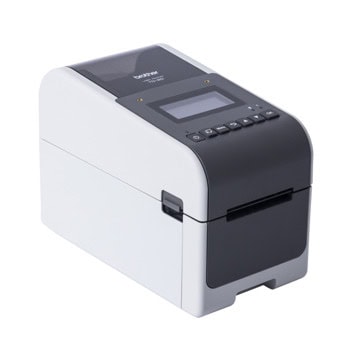

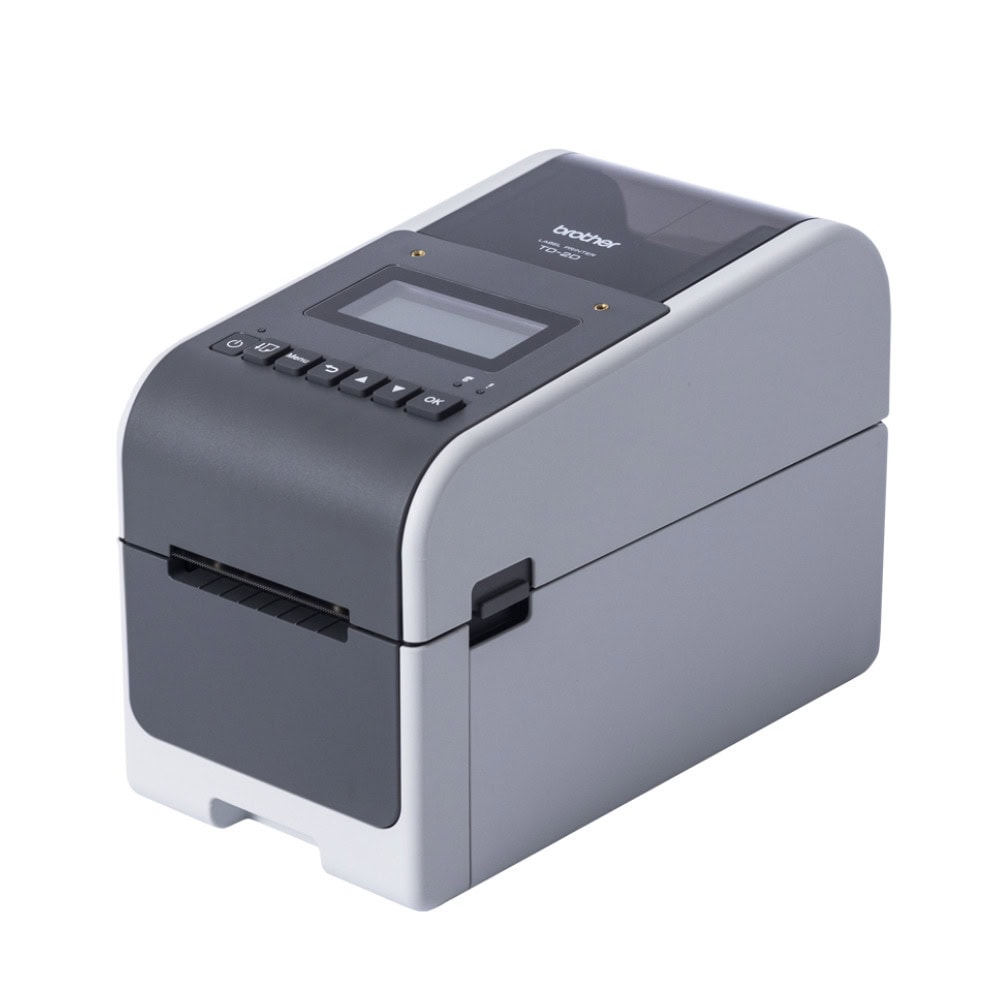

Етикетен принтер Brother TD-2350D300, 300dpi, 32MB Flash памет, ширина на етикета до 63mm, USB, RS232C, RJ45, Wi-Fi, Bluetooth

Brother TD-2350D300

Key features:

• Compact and mobile design
• Seamless intergration: Enhanced language emulation with support for ZPL2, EPL and DPL command languages
• Two power options: AC adaptor and optional rechargeable battery 3 **
• Customisable with various options (label peeler, cutter, battery)3 **
• Auto media configuration for easy setup
• 300dpi print resolution
• USB connectivity (serial connectivity available as optional accessory with PA-SCA-002)
• Up to 152mm/second print speed
• 256MB RAM, 64MB Flash
• Linerless media support



Bluetooth profile

SPP(Serial Port Profile), OPP, HCRP, GATT
(Low Energy)
iAP supported

WLAN security

Authentic method (encryption scheme)
Infrastructure mode:
• (Personal) WEP, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3-SAE (AES)
• (Enterprise) EAP-FAST, PEAP, EAP-TLS, EAP-TTLS
Wireless direct: WPA2-PSK (AES)

Operating system support

Microsoft Windows 10, Windows 11
Microsoft Windows Server 2016/2019/2022
Linux

SDK support

Windows B-PAC SDK. Android 10 or later, iOS 16 or later

Printer commands

P-touch Template, ESC/P, Raster and ZPL 2, EPL 2, DPL, CPCL emulations

Built in fonts (ESC/P)
Fixed: Letter Gothic Bold, Helsinki, Gothic
Scalable: Letter Gothic Regular, Helsinki, Brussels, Gothic, San Diego, Brougham

Built in fonts (P-Touch template)
Scalable: Letter Gothic Regular, Helsinki, Brussels, Gothic

Built in fonts (ZPL)
Fixed: Letter Gothic Bold, Symbol, OCR-A, OCR-B ; Scalable: Utah Condensed Bold

Specifications

Printing specification

Method: Direct thermal
Resolution: 300dpi
Max print speed: Up to 6ips (1522.4mm/sec)
Max print width: 2.32in (59mm)
Max print length: 118.1in (3000mm)
Min print length: 0.25in (6.4mm)
Media handling: Continuous, tear-off, cutter, peeler
Printer languages: P-touch template 2.0, raster, ESC/P
Emulations: ZPL, EPL, DPL, CPCL
Internal fonts: ESC/P: Letter Gothic Bold, Helsinki, Gothic, Brussels ; ESC/P(Templates): Letter Gothic Regular, Helsinki, Gothic, Brussels
Internal linear barcodes: CODE 39, ITF(I-2/5), EAN(JAN)8/13, UPC-A/E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar & Composite,
CODE93, POSTNET, MSI, Intelligent Mail Barcode (IMb)
Internal 2D barcodes: QR Code, Micro QR, Maxicode, PDF417, MicroPDF417, Data Matrix, Aztec

Physical characteristics

Sealing protection: IP4x
Mobile device charging: USB-C at 5V/3A
Memory: 256MB DRAM / 64MB flash / 32MB user area
Real time clock: Standard with battery backup

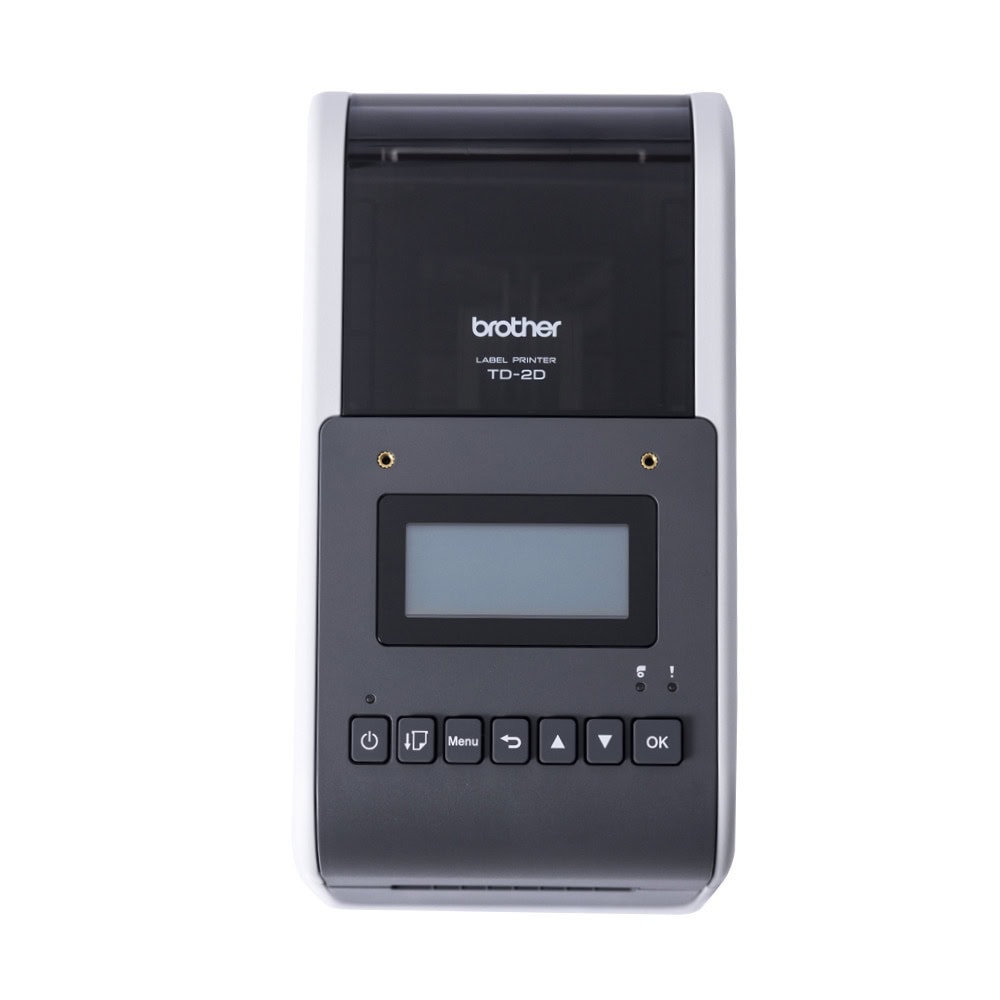

Led/buttons: 3 LEDs, 7 buttons & LCD with 14 languages
Display Monochrome: LCD
Mounting: Threaded inserts for tablet mounting and secure mounting
Battery: 14.4v, 1750 mAh, 26Wh (optional)
Battery charging: Direct in battery base or optional single slot charger
Battery charge time: Up to 2.2hrs
Power External: AC Adapter (Input: 100-240V AC 50/60Hz 1.5A, Output: 24V DC 3.6A)
Temperature: 41° F to 104° F (5° C to 40° C), 20% to 80% non-condensing
Humidity: -4° F to 140° F ( -20° C to 60° C), 10% to 90% non-condensing

Media specifications

Media type: Receipt, label, tag, wristbands
Media width: 0.59in to 2.48in (15mm to 63 mm)
Inner diameter core: 0.5in (11mm to 12.7mm), 0.75in (19mm),1.0in (25mm to 25.4mm), 1.38in (34.9mm), 1.5in (38.1mm)
Max outer diameter: 5in (127mm)
Media thickness: 2mil to 11mil (0.058mm to 0.279mm)
Auto media detection: Width, length and sensor type
Sensors Type: gap (transmissive), black mark (reflective) Location: gap (fixed), black mark (adjustable)

Connectivity & software

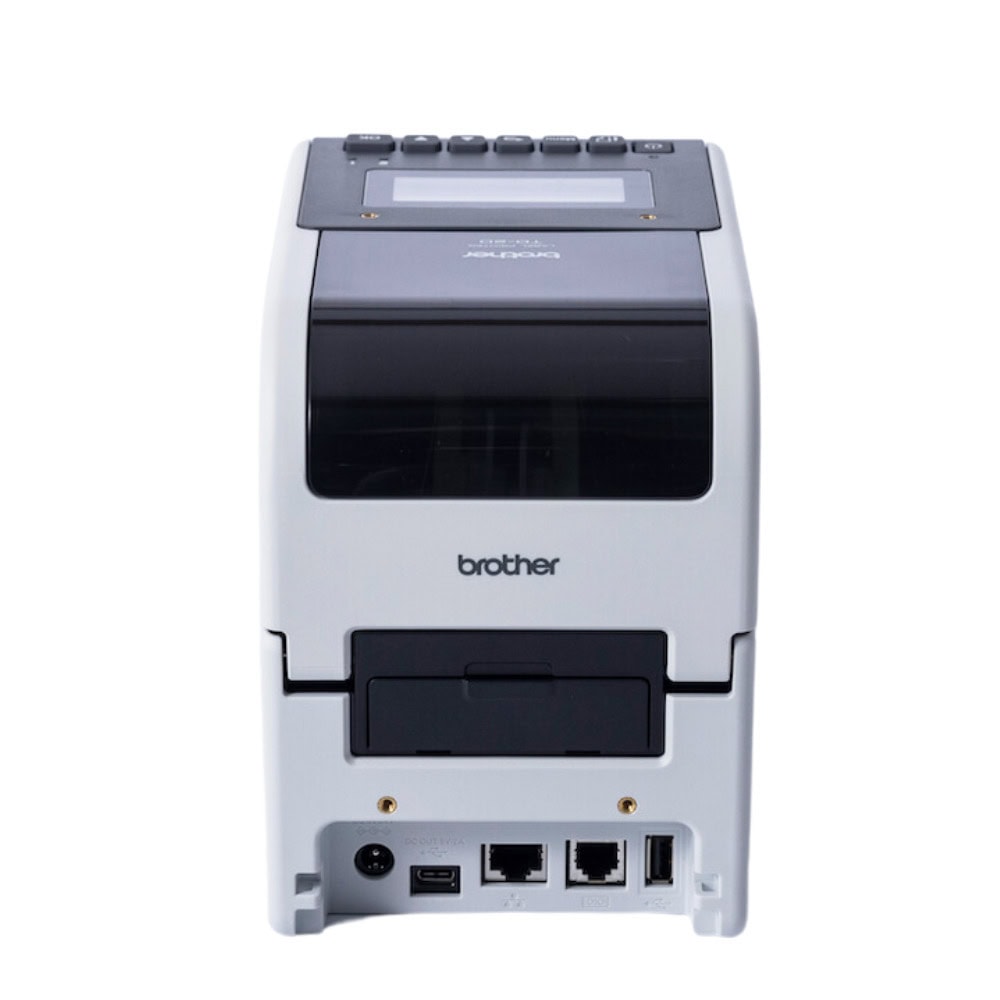

Communications interfaces: Wi-Fi (802.11 a/b/g/n), Bluetooth v5.2 (BR/EDR: Class 1, Bluetooth Low Energy: Class1.5) MFi, LAN (10/100 BASE-TX), USB v2.0 (Full Speed) Type C, USB Host (Keyboards, Scanners, Memory), RS232C (RJ25)
Communications security: WEP 64/128bit, WPA/WPA2-PSK/WPA3-SAE (TKIP+AES / AES), WPA3-SAE (AES), EAP-FAST, PEAP, EAP-TLS, EAP-TTLS
OS support: Windows 10 & 11, Linux, Android™ and iOS®. For the most up-to-date compatibility, visit our support page
Drivers: Windows and Linux. For the most up-to-date compatibility, visit our support page
SDKs: Windows bPAC, Android™ 9. For more information on SDKs, please visit our support page
Label design: Brother P-touch Editor Label Design/Print
Support tools: Brother Printer Setting Tool
Mobile apps: 3 Smooth Print, Mobile Deploy, Mobile Transfer Express, Print SDK Demo

General

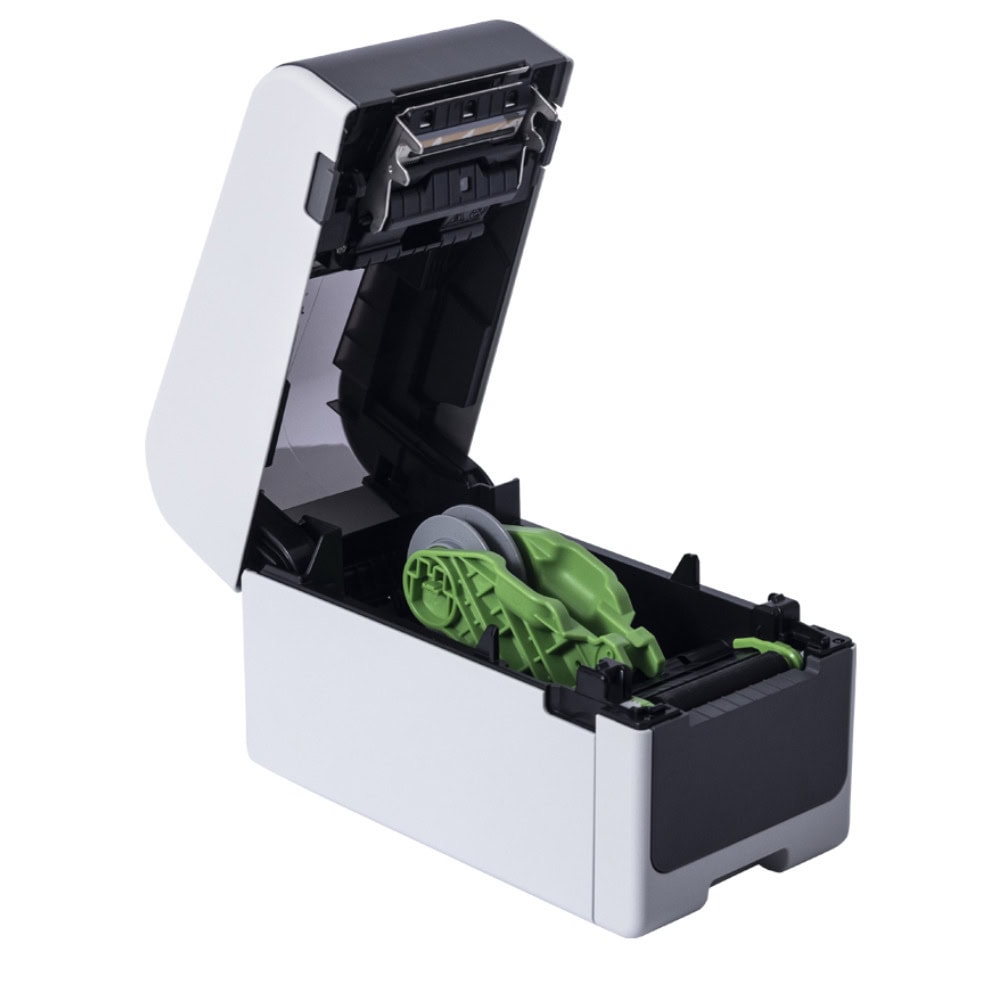

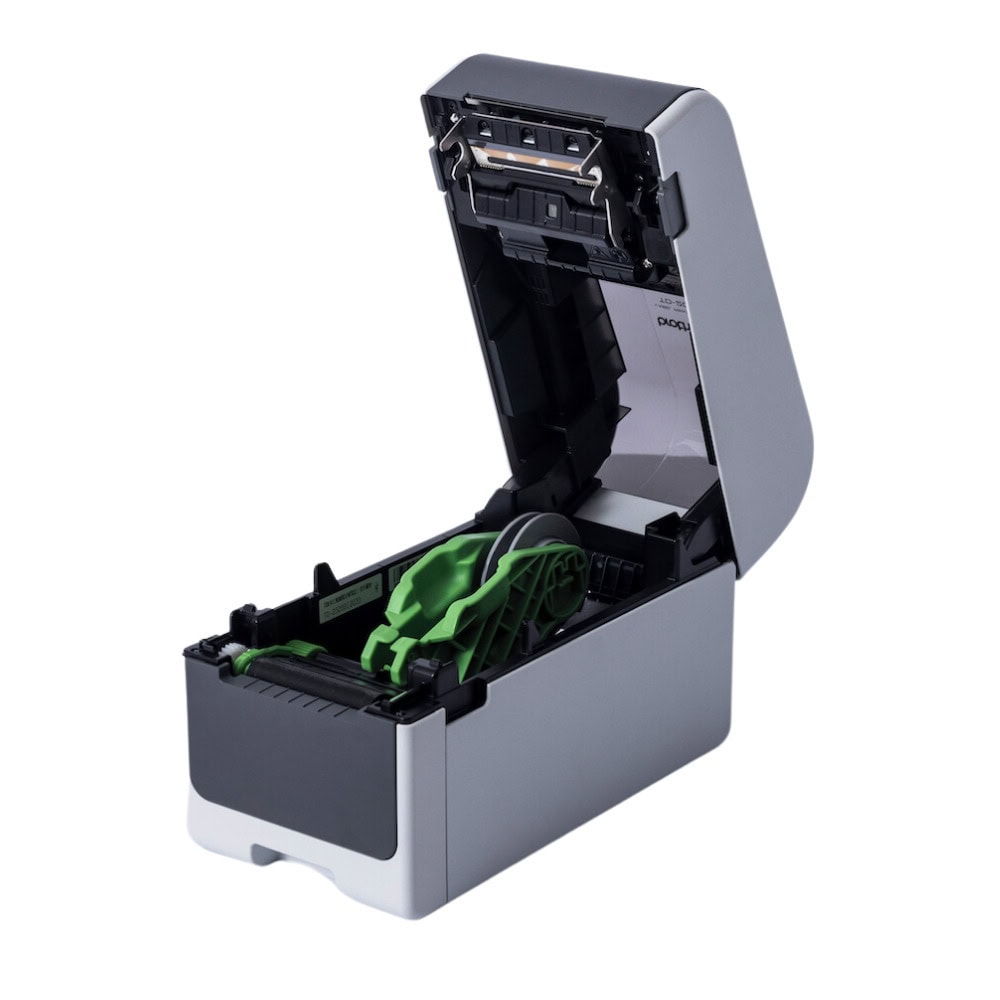

Maintenance: Tool-free printhead and platen roller replacement
Printer options: Cutter, peeler, battery base, battery
Certifications: Energy Star Certified, WHQL
Agency approvals: FCC, UL, ICES, CSA, RSS
