Проектор BenQ SH753P, 3D, DLP, Full HD (1920x1080), 5000lm, 13 000:1, HDMI, VGA, USB, LAN, RS232

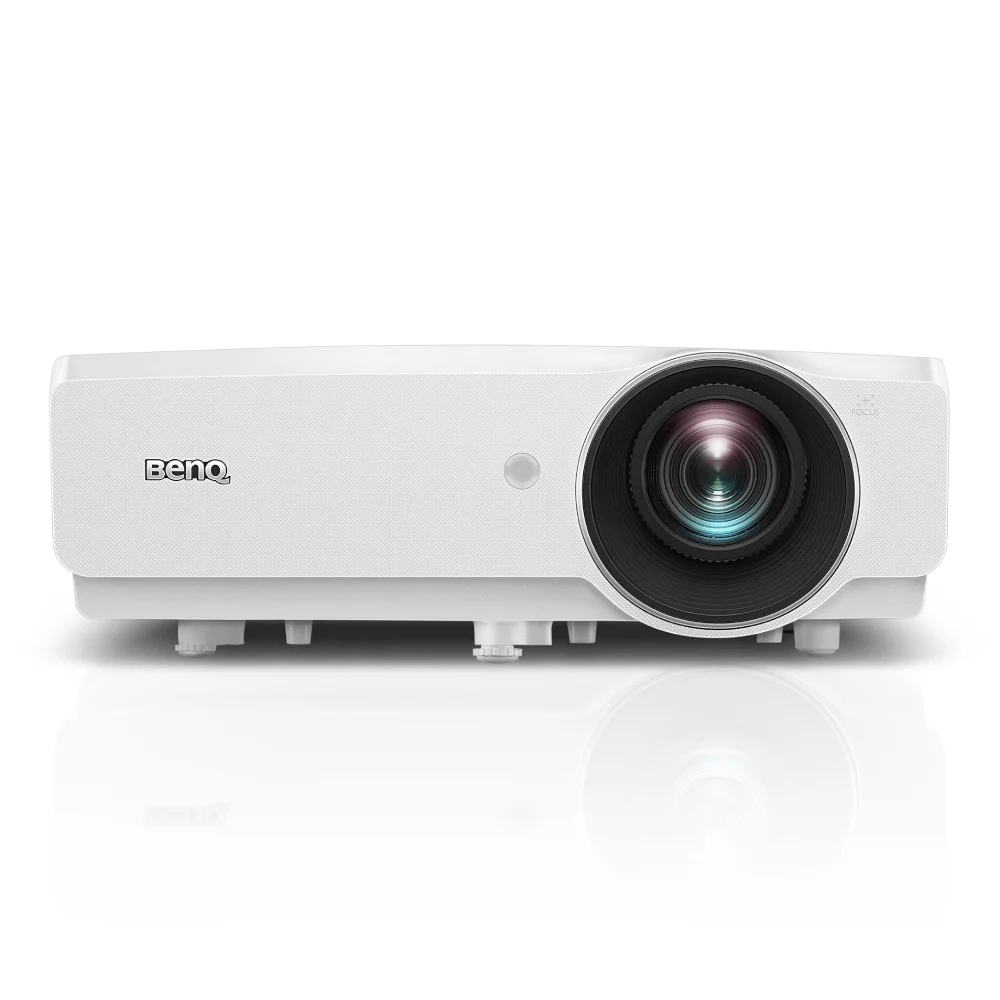

BenQ SH753P

Powerful Projection Performance and High Integration Flexibility for Corporate Installations.

• Ideal for efficient replacement of corporate projectors, BenQ SH753P delivers superior high brightness for effective visual communication in bright conference rooms and boardrooms. Comprehensively equipped for flexible installation, SH753P can smoothly integrate into existing centrally managed display infrastructures and provide additional versatility through a wide range of wireless presentation options.

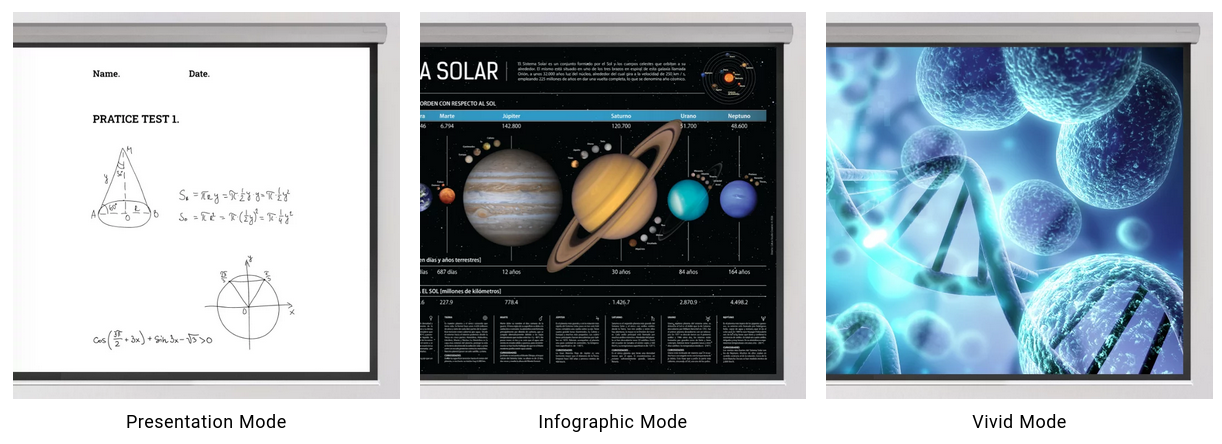

Advanced Presentation Modes for Supreme Projection Quality

BenQ’s SH753P provides several presentation modes that are tailored toward different kinds of presentation venues and content. It includes two advanced presentation modes designed to satisfy the specific needs during different kinds of presentations. The newly released Infographic Mode is perfect for showcasing the text and graphics of infographics in detail due to SH753P’s high color brightness and better color gradation, ensuring more saturated and lively color performance than presentation mode. Additionally, Vivid Mode is designed for supreme color performance during video or image presentation.

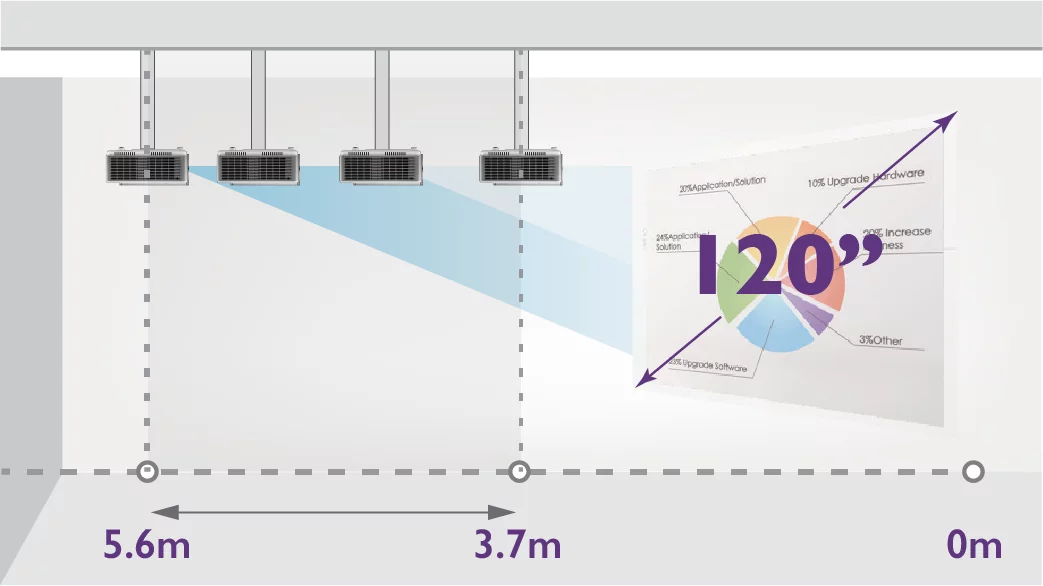

Flexible Throw Ratio and the 1.5x Zoom for Efficient Upgrades

With flexible throw ratio ranges and a 1.5x Big Zoom, corporations can easily and economically replace outdated projectors by making use of existing ceiling mounts to project large-scale images in restricted spaces. The 1.5x zoom allows SH753P to be mounted anywhere from 3.7 to 5.6 meters from the screen and project images of 120", which is the typical image size for corporate meeting rooms, avoiding costly renovation or installation downtime.

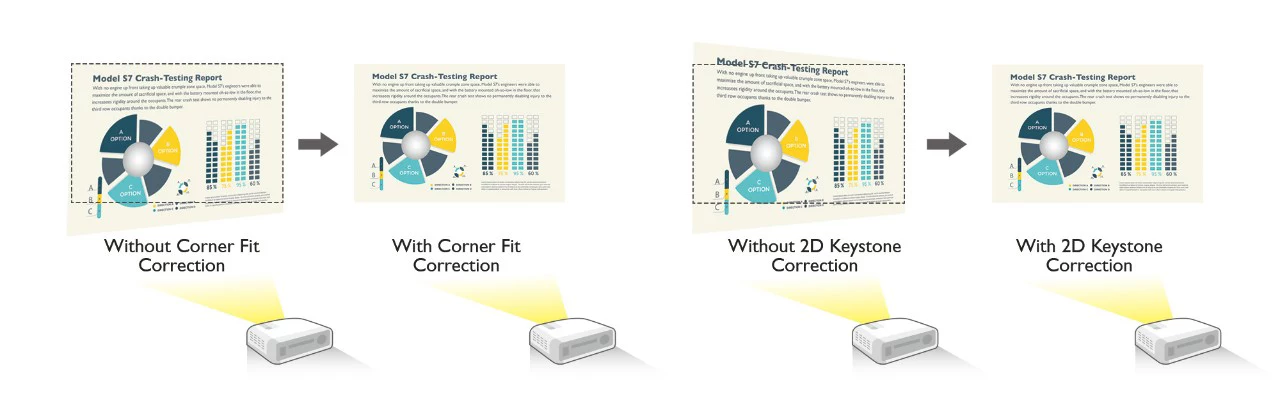

Advanced Image Calibration for Ideal Projection Alignment

SH753P is equipped with a two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect, a common phenomenon when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner respectively, for perfectly aligned image geometry.

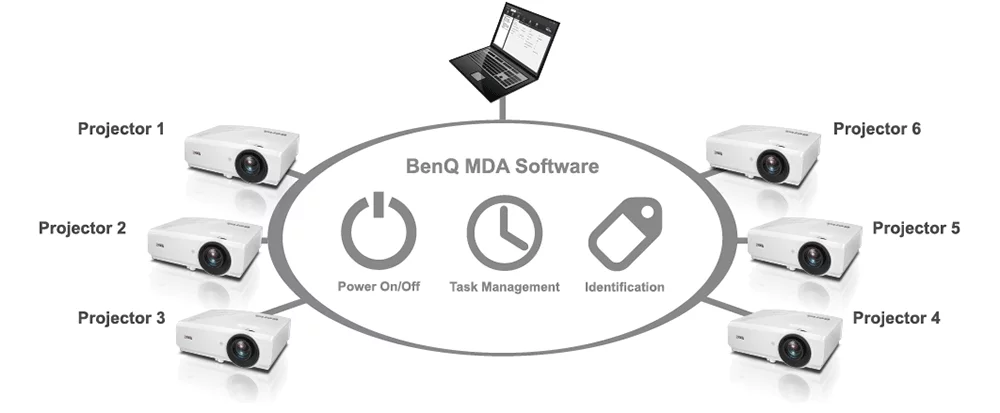

Centralized Control with BenQ’s MDA Software

The BenQ Multiple Display Administrator (MDA) software provides powerful centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.

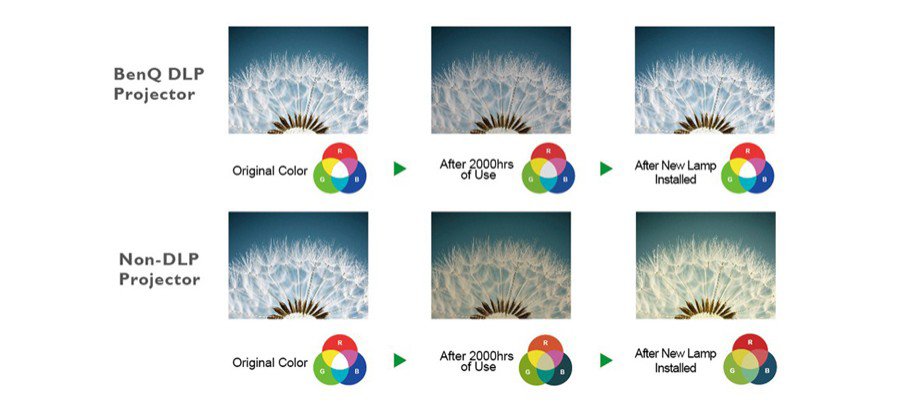

Long-Lasting DLP Prevents Color Decay and Conserves Energy

Equipped with the durability of digital micromirror devices and a nearly-sealed projection engine designed to prevent dust image, the DLP-powered SH753P resists color decay and image degradation. This preserves picture quality even after thousands of hours of operation.





Specifications:



Display

Brightness (ANSI lumens)

5000

Native Resolution

1080P (1920x1080)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

13,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Lamp

Light Source Life

a. Normal 2500 hrs, b. ECO 3500 hrs, c. SmartEco 4500 hrs



Optical

Throw Ratio

1.39~2.09

Zoom Ratio

1.5x

Lens

F/#= 2.42 ~2.97, f = 20.7 ~ 31.05mm

Projection Offset (Full-Height)

115%

Keystone Adjustment

2D, Vertical ± 30 degrees; Horizontal ± 30 degrees




Picture Modes

3D, Bright, Infographic, Presentation, sRGB, Vivid



Compatibility

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

23~120KHz



I/O Interface

PC in (D-sub 15pin)

(x1)

Monitor out (D-sub 15pin)

(x1)

Composite Video in (RCA)

(x1)

HDMI in

(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL)

LAN (RJ45)

(x1)

USB Type A

(x1), USB Type A-1 (2.0/Power Supply1.5A)

USB Type Mini B

(x1), USB Type Mini B-1(service/Page up&down)

RS232 in (DB-9pin)

(x1)

DC 12V Trigger (3.5mm Jack)

(x1)



Audio

Speaker

(x1), 10W

Audio in (3.5mm Mini Jack)

(x1)

Audio out (3.5mm Mini Jack)

(x1)

Microphone in (Mini Jack)

(x1)



Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

365W/110V

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<2W

Acoustic Noise (Typ./Eco.)(dB)

36/31 dB



Dimension & Weight

Dimensions (WxHxD) (mm)

314 x117 x 233

Net Weight (kg)

3.3 kg



Projection System

Projection System

DLP
