Аудио интерфейс Audient ID44, S/PDIF-in, S/PDIF-out, XLR, 6.3mm жак, черен

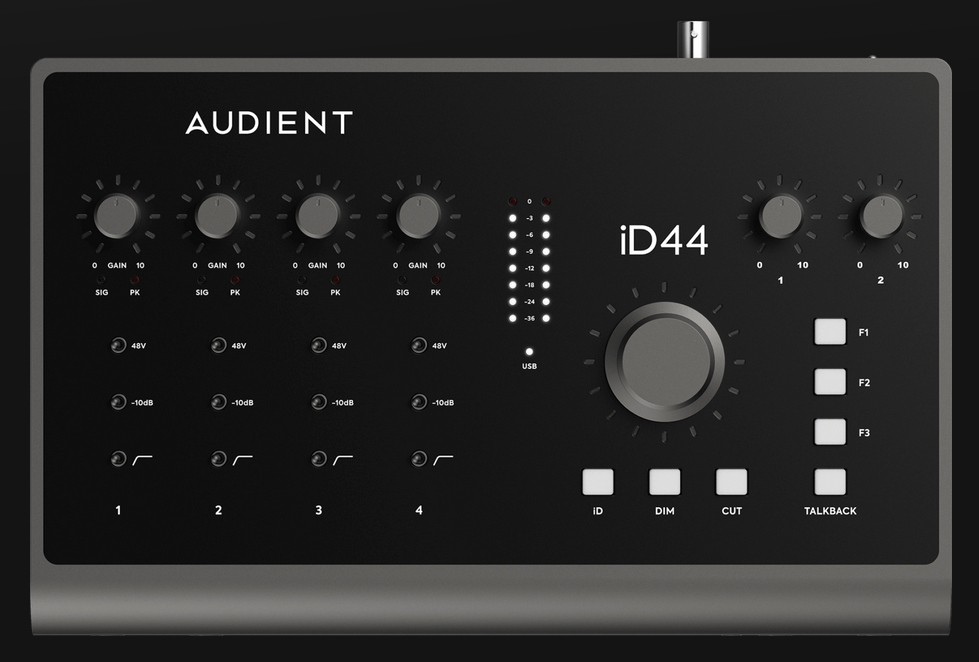

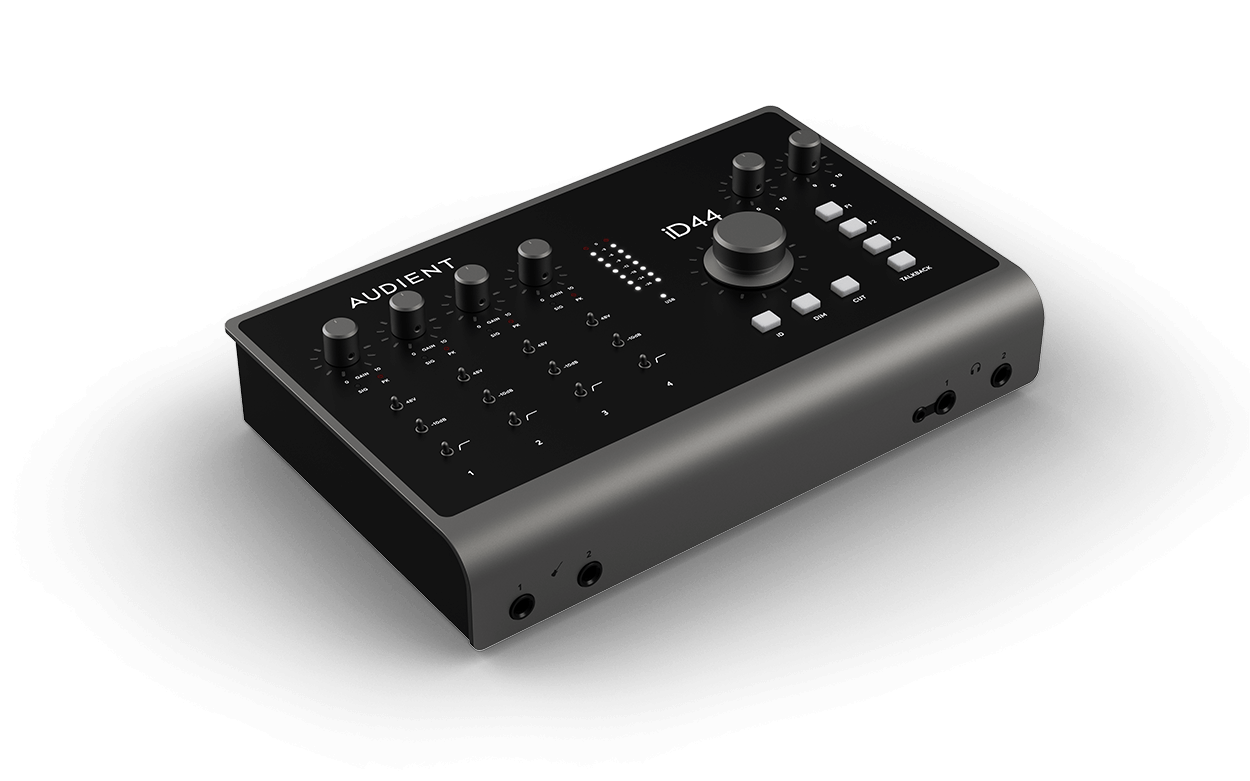

Audient ID44



The best just got better





20in | 24out Audio Interface

Our most powerful audio interface just got better. The latest generation of iD44 sees improved audio performance, additional must-have features and a beautiful new smoke-grey finish. The addition of audio loop-back and a dual headphone output, combined with four Audient Console mic preamps, class-leading converters, ADAT expandability and balanced inserts – means iD44 delivers the audio performance of an Audient console straight to your desktop.





Audient Console Mic Preamps

The professional sound you deserve



How does it sound? The Audient mic pre is a high grade hybrid discrete and op amp design that delivers a clean, accurate and detailed translation of your source.     Now that’s quiet With a noise floor 30,000 times quieter than the signal level your recordings will be captured with stunning clarity.



Class leading converters

Brilliance on the inside enables brilliance on the outside



Offering an incredible 126dB of dynamic range, iD44’s class leading converters have been designed to deliver the most honest and natural translation of your audio, helping you hear subtle detail, identify problematic issues and make better mix decisions. Experience remarkable clarity from the moment you press play.



Expand via ADAT

More channels, more possibilities



Easily configure your studio to tackle bigger sessions. Equipped with two optical input and output connectors, iD44 gives you plenty of options for expansion. Supporting both ADAT and SPDIF, boost your I/O by adding up to 16 channels of mic preamps to your setup.





Balanced Inserts

Hardware Integration

Integrate your favourite outboard FX prior to conversion and start creating signal chains that rival the very best. The insert returns also gives you direct access to the A/D converters providing the cleanest signal path possible, making it great for print-backs or integrating outboard line level sources.

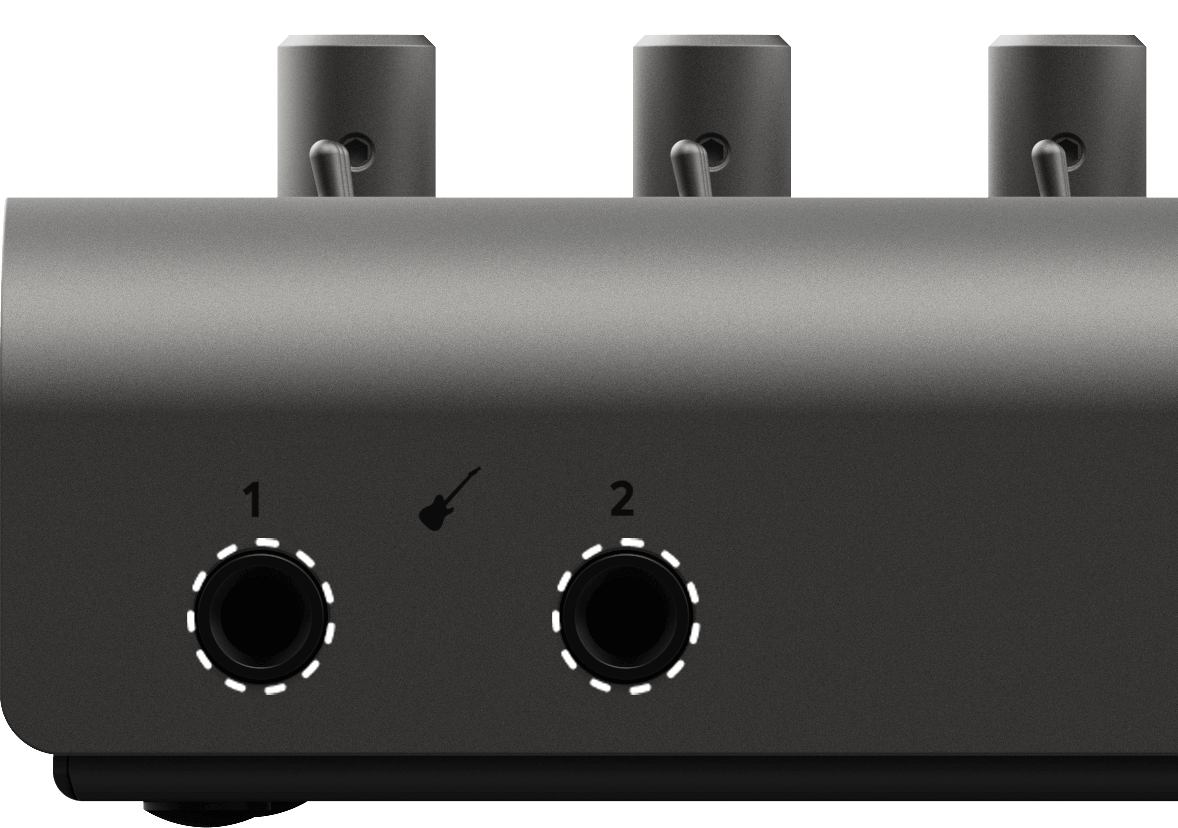

JFET Instrument Inputs Plug and play   Designed to replicate the input stage of a classic valve amplifier, iD44 features two harmonically rich JFET Instrument Inputs giving you the perfect sonic foundation for your guitars or basses before you hit your amp sims.







Tech specs:

Microphone Preamplifier

MIC GAIN:0 to +60dB

LINE GAIN:-10 to +50dB

PHANTOM POWER:48v +/-4v @ 10mA/Channel

MIC EIN:-126dBu

CMRR:>80dB @ 1kHz

MAXIMUM INPUT LEVEL:+18dBu

INPUT IMPEDANCE (Mic):3k Ω balanced

INPUT IMPEDANCE (Line):10k Ω balanced

FREQUENCY RESPONSE:±0.5dB 10Hz to 65kHz

CROSSTALK:<-90dBu @ 1kHz & 10kHz

THD+N @ 0dBu (1kHz):0.003% (-90dB)

SNR:96dB

XLR:Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)

PAD:-10dB

HPF:-3dB @ 100Hz, 2nd Order (12dB/Octave)





D.I / Instrument Input (Channel 1)

D.I GAIN:0 to +60dB

MAXIMUM INPUT LEVEL:+10dBu

INPUT IMPEDANCE:1MegΩ Unbalanced

FREQUENCY RESPONSE:±0.5dB 10Hz to 50kHz

THD+N @ 0dBu (1kHz):<0.3%

SNR:95dB A-weighted

1/4” JACK:Tip (Hot) & Sleeve (Shield)





Analogue to Digital Converter (ADC 1 & 2):

(Measured via Insert Returns under AES-17)

MAXIMUM INPUT LEVEL:+18dBu (0dBFS digital maximum)

DIGITAL REFERENCE LEVEL:+18dBu = 0dBFS

INPUT IMPEDANCE:>10k Ω Balanced

CROSSTALK:-115dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE:±0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz):<0.0003% (-112dB)

DYNAMIC RANGE:120dB A-weighted

1/4” TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)





Digital to Analogue Converter (DAC 1, 2, 3 & 4):

(Measured under AES-17 at line outputs 1, 2, 3 & 4)

MAXIMUM OUTPUT LEVEL:+18dBu (0dBFS digital maximum)

DIGITAL REFERENCE LEVEL:+18dBu = 0dBFS

OUTPUT IMPEDANCE:<100 Ω

CROSSTALK:<-118dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE:±0.5dB 10Hz to Fs/2 (Nyquist)

CROSSTALK:-115dBu @ 1kHz & 10kHz

THD+N @ -1dBFS (1kHz):<0.0006% (-104dB)

DYNAMIC RANGE:124dB un-weighted, 126dB A-weighted

1/4” TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)





Headphone Outputs

(Measured under AES-17 at phones output)

MAXIMUM OUTPUT LEVEL:+14dBu (0dBFS digital maximum)

DIGITAL REFERENCE LEVEL:+14dBu = 0dBFS

OUTPUT IMPEDANCE:<50 Ω unbalanced

CROSSTALK:<-110dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE:±0.5dB 10Hz to Fs/2

CROSSTALK:-115dBu @ 1kHz & 10kHz

THD+N @ -1dBFS (1kHz):<0.0008% (-103dB)

DYNAMIC RANGE:121dB un-weighted, 124dB A-weighted

MAX LEVEL INTO 30ohms:+10.2dBu 0.002% THD+N Power: 210mW

MAX LEVEL INTO 60ohms:+14.2dBu 0.001% THD+N Power: 54mW

MAX LEVEL INTO 600ohms:+14.2dBu 0.001% THD+N Power: 54mW

1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)





Digital Input

ADAT 16 CHANNELS:44.1kHz to 48.0kHz

ADAT 8 CHANNELS (SMUX):88.2kHz to 96.0kHz

STEREO S/PDIF:44.1kHz to 96.0kHz





Digital Output

ADAT 16 CHANNELS:44.1kHz to 48.0kHz

ADAT 8 CHANNELS (SMUX):88.2kHz to 96.0kHz

STEREO S/PDIF:44.1kHz to 96.0kHz





USB2.0 High Speed

No. of INPUT CHANNELS 20:20 (4 Analogue, 16 Digital)

No. of OUTPUT CHANNELS 24:24 (8 Analogue, 16 Digital)

CONNECTOR:USB Type-C



DSP Mixer Latency – ROUND TRIP (in-to-out)

44.1kHz0.677ms

48.0kHz0.625ms

88.2kHz0.354ms

96.0kHz0.323ms



Dimensions

Unit 276mm (w) x 51mm (h) x 174mm (d)
