Аудио интерфейс Audient ID14-MKII, Optical-In, 1x JFET in, 2x Line изхода, USB-C, 24-bit/96kHz, черен

Audient ID14-MKII



Your recordings made better



10in | 6out Audio Interface

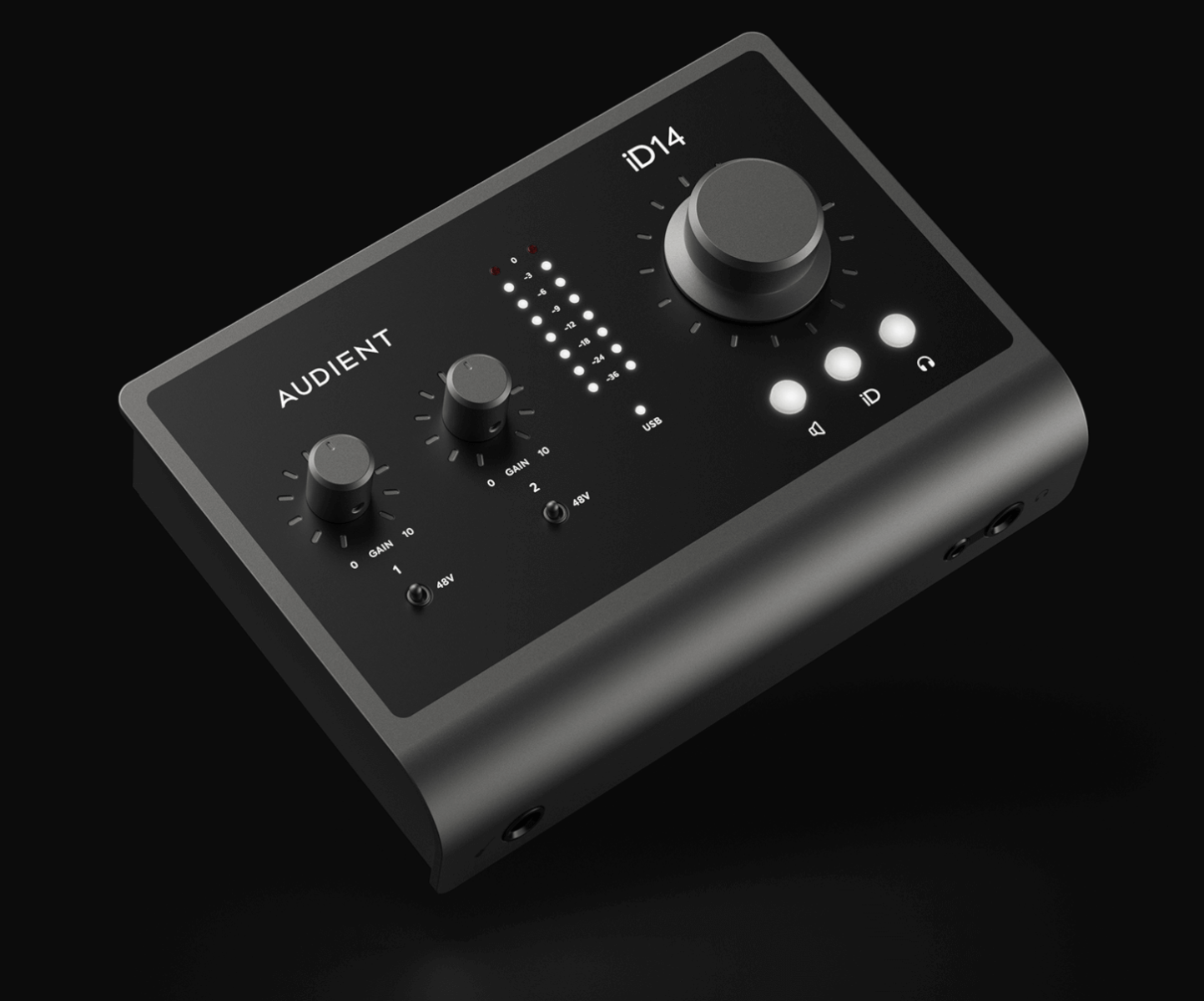

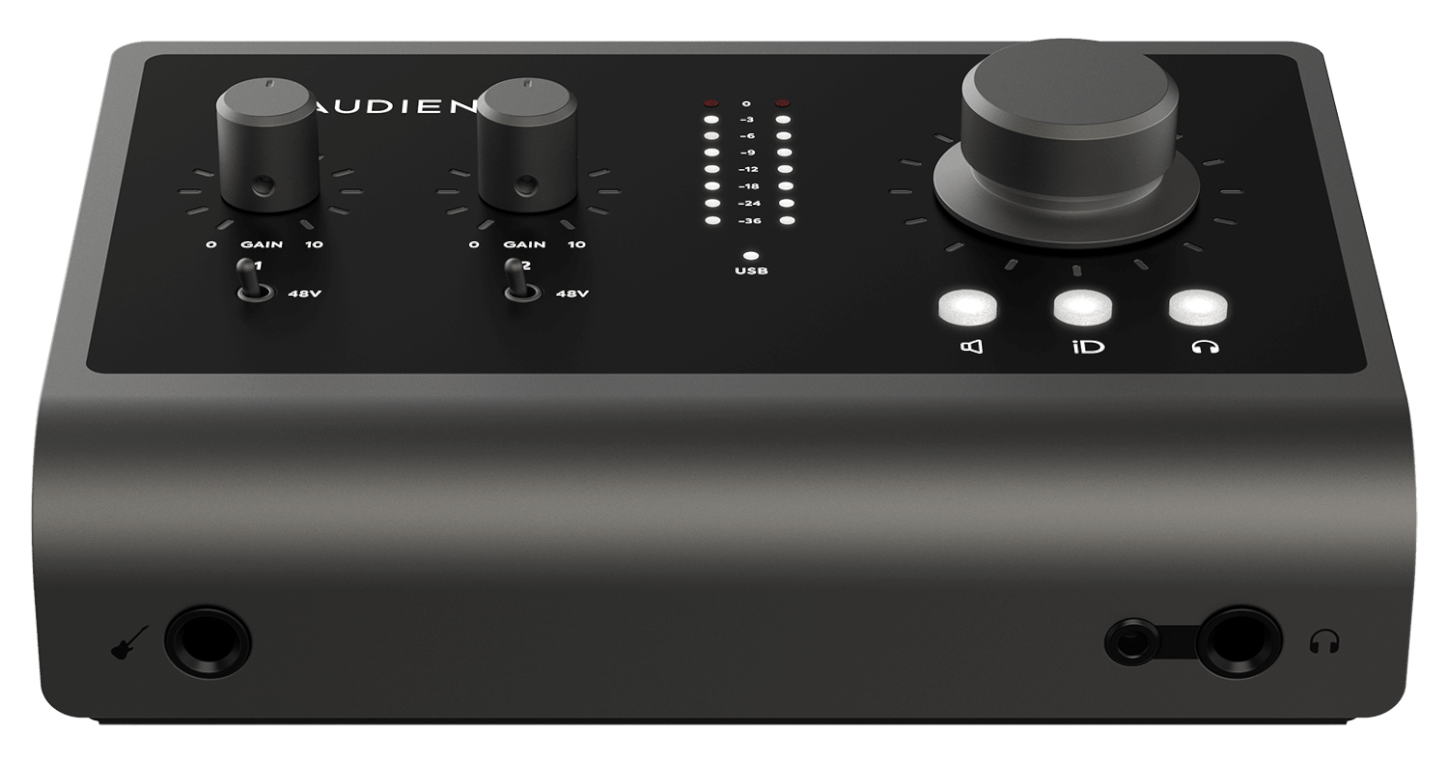

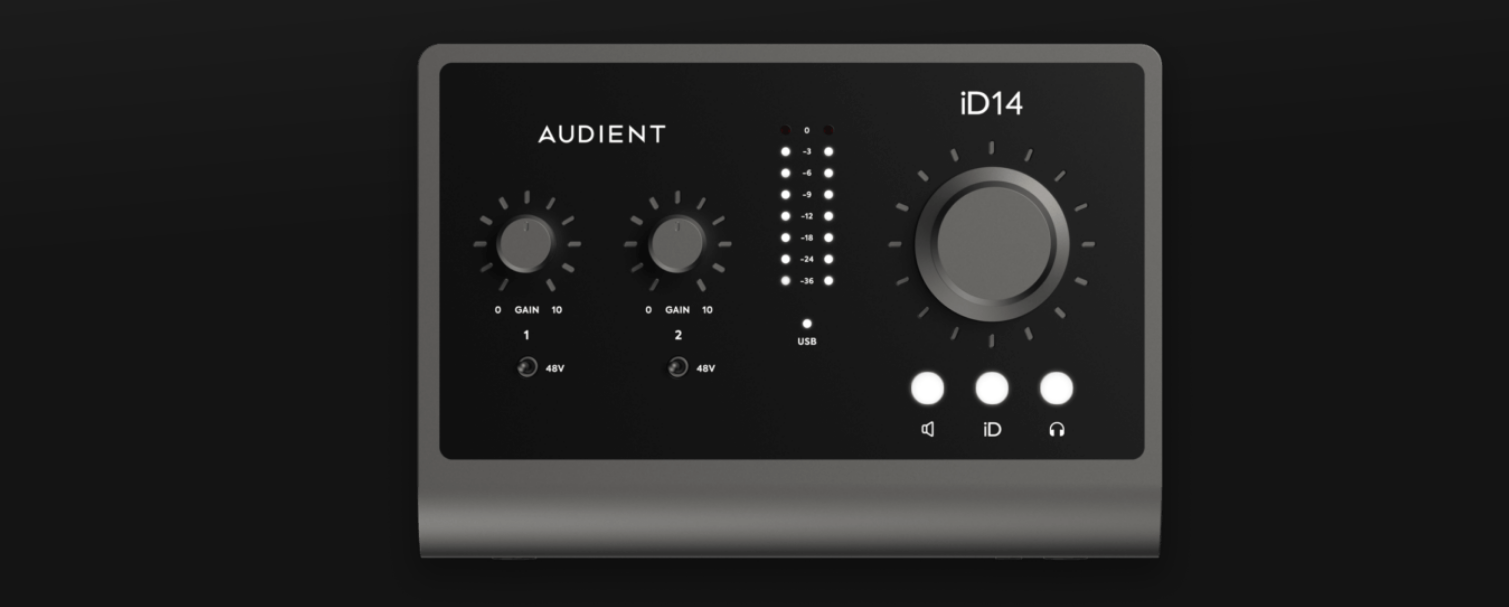

Designed to take your recordings to the next level in every way, the iD14 (MKII) delivers professional audio performance in a compact and modern desktop package, giving you everything you need to make studio quality recordings at home.



Audient Console Mic Preamps
The professional sound you deserve





Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD14’s two Audient mic pre’s will give you the professional sound you deserve.





	How does it sound? The Audient mic pre is a high grade hybrid discrete and op amp design that delivers a clean, accurate and detailed translation of your source.   Now that’s quiet With a noise floor 30,000 times quieter than the signal level your recordings will be captured with stunning clarity.
Class leading converters   Its all in the details   iD14’s converters make sure you hear every nuance, every detail of your audio, enabling you to take your recordings to the next level. Offering an incredible 126dB of dynamic range you will hear your audio more accurately, make better creative decisions and experience stunning clarity directly from your desktop.





Tech specs:

D.I / Instrument Input
RANGE:	40dB
LINEUP:	12dBu = 0dBFS
THD+N @ 0dBu:	0.1%
SNR:	100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN	±0.5dB 10Hz to 20kHz
1/4” TS JACK:	Tip (Hot) & Sleeve (Shield)
Microphone Preamplifier
GAIN RANGE:	58dB
LINEUP:	12dBu = 0dBFS
MIC MAX INPUT LEVEL:	12dBu
MAX INPUT LEVEL:	21dBu
INPUT IMPEDANCE (Mic):	2.8k
INPUT IMPEDANCE (Line):	>8k
THD+N @ 0dBu	0.00170%
SNR:	101dBu A-Weighted
EIN:	129dB A-Weighted
CMRR @ 1k:	>75dB
CROSSTALK:	>-100dB
FREQUENCY RESPONSE	±0.5dB 10Hz to 40kHz
XLR COMBI FEMALE:	Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK:	Tip (Hot), Ring (Cold) & Sleeve (Shield)
Analogue to Digital Converter
THD+N @ -1dBFS:	0.001%
DYNAMIC RANGE:	120dB A-Weighted
CMRR:	>80dB
FREQUENCY RESPONSE:	±0.5dB 10Hz to 40kHz
Line Outputs (DAC):
LINEUP:	12dBu = 0dBFS
THD+N @ -1dBFS:	0.0006%
DYNAMIC RANGE:	125.5dB A-Weighted
CROSSTALK:	>120dB
FREQUENCY RESPONSE:	±0.1dB 10Hz to 40kHz
1/4” TRS JACK:	Tip (Left), Ring (Right) & Sleeve (Shield)
Headphone Outputs
LINEUP:	18.5dBu = 0dBFS
THD+N @ -1dBFS:	0.0009%
DYNAMIC RANGE:	125.5dB A-Weighted
CROSSTALK:	>116dB
FREQUENCY RESPONSE:	±0.25dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R:	2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R:	4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R:	7.72V Peak, 5.46V RMS, 100mW
USB-C High Speed
1/4” TRS JACK:	Tip (Left), Ring (Right) & Sleeve (Shield)
BUS POWER:
MIN REQUIREMENT:	0.9A @ 5V	>=USB 3.0 Port
MAX REQUIREMENT:	1.5A @ 5V	USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS:	2 (2 Analogue)
No. of OUTPUT CHANNELS:	2 (2 Analogue)
DSP MIXER LATENCY ROUND TRIP (in-to-out):	44.1kHz	0.65mS
	48.0kHz	0.6mS
	88.2kHz	0.33mS
	96.0kHz	0.31mS
