ATEN CS62S, 2-Port PS/2 Cable KVM Switch

CS62S
2-Port PS/2 KVM Switch

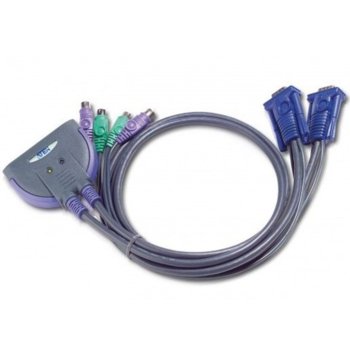

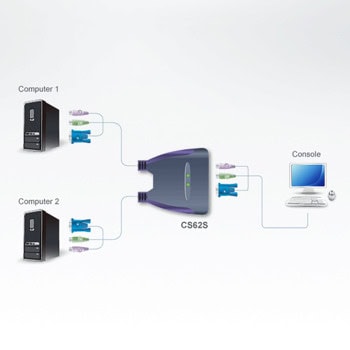

CS62S 2-port KVM Switch has a handy design integrating with 0.9m of cable. It can control 2 servers via a single console.

- One PS/2 console controls 2 PS/2 computers
- Compact design, built in 0.9m cables
- All-in-one design
- Superior video quality-up to 2048 x 1536; DDC2B
- Auto Scan function to monitor computer operation
- Non-powered
- OS Compatibility includes Windows 2000/XP/Vista,LINUX and FreeBSD

Computer Connections 2
Port Selection Hotkey

Connectors

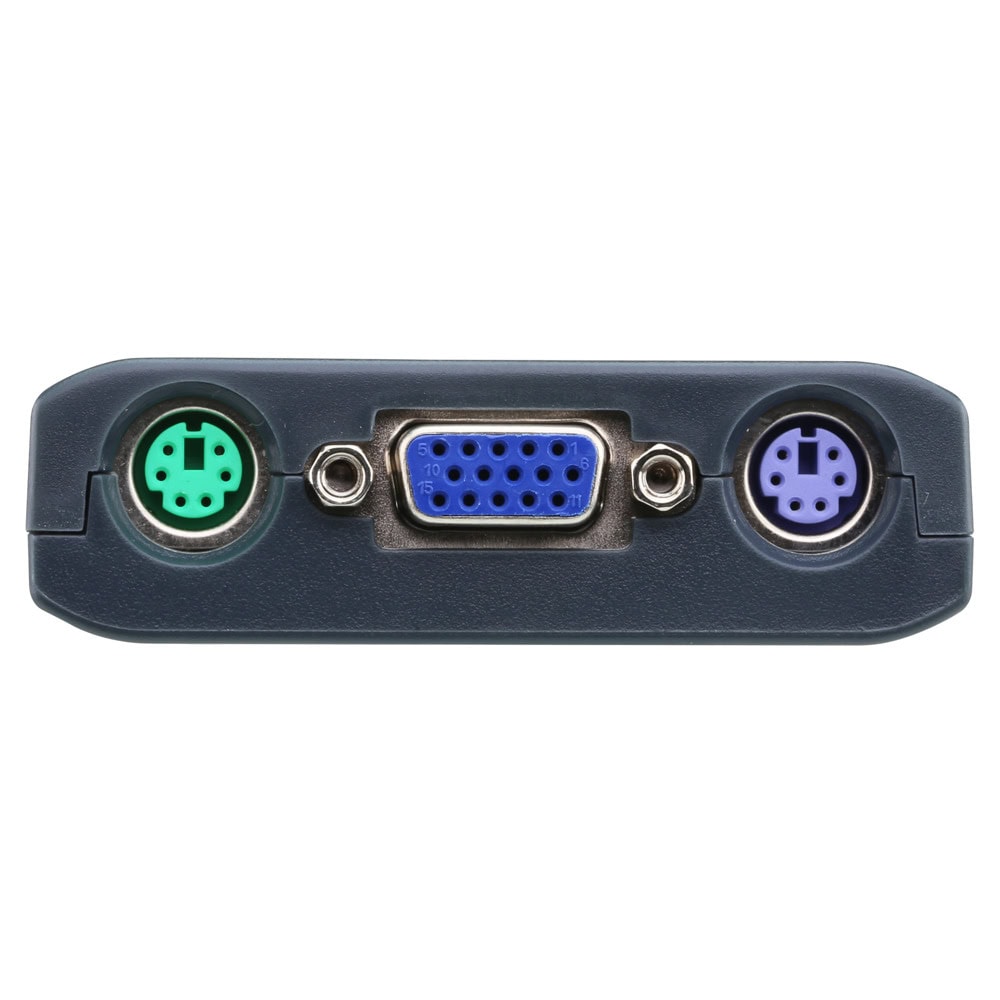

Console Ports
Keyboard 1 x 6-pin Min-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Min-DIN Female (Green)

KVM Ports
Keyboard 2 x 6-pin Min-DIN Male (Purple)
Video 2 x HDB-15 Male (Blue)
Mouse 2 x 6-pin Min-DIN Male (Green)

LEDs Selected 2 (Green)
Cable Length Computers 0.9 m
Emulation Keyboard/Mouse PS/2
Video 2048 x 1536; DDC2B
Scan Interval 3, 5, 10, 20 seconds

Environment

Operating Temp. 0￠X~50￠XC
Storage Temp. -20￠X~60￠XC
Humidity 0~80% RH, Non-condensing

Physical Properties

Housing Plastic
Weight 0.33 kg
Dimensions( L x W x H ) 7.30 x 5.85 x 2.25 cm
