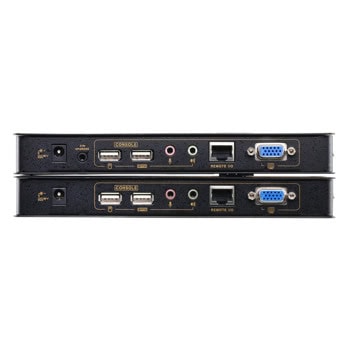

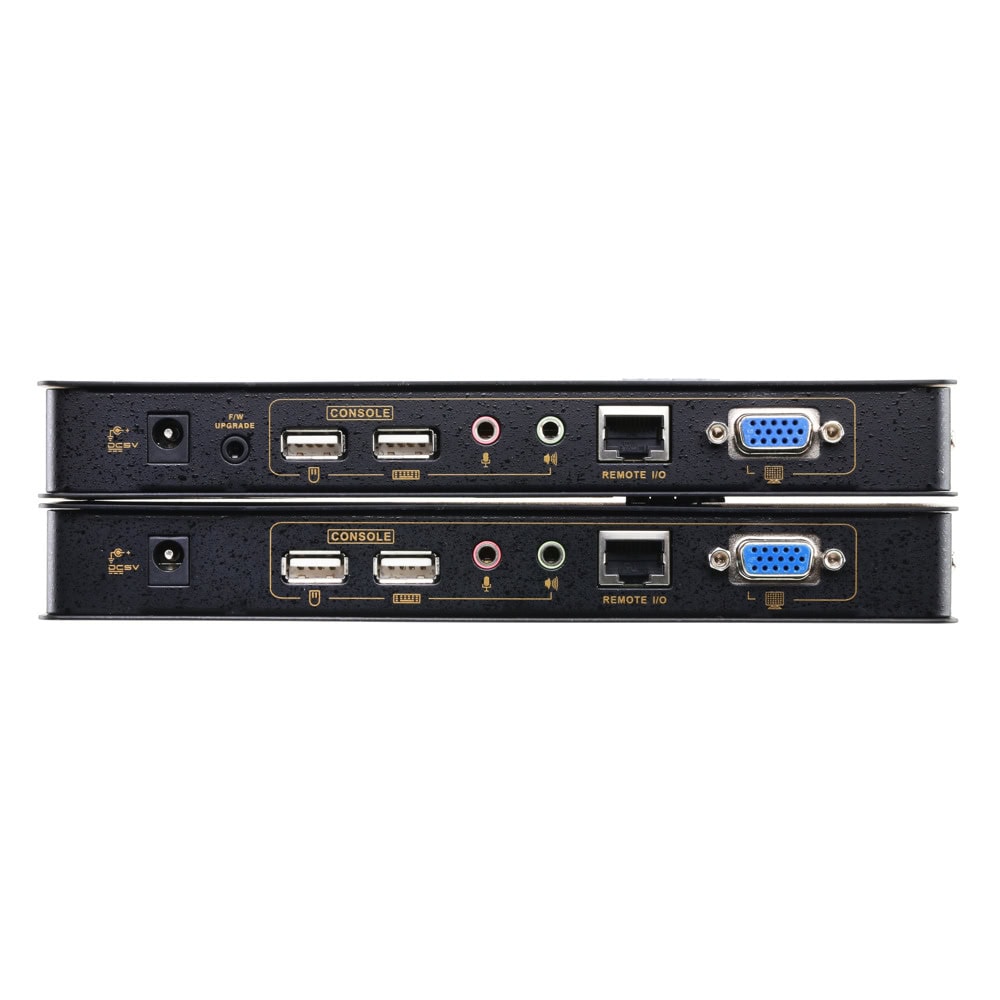

Aten CE800B
USB VGA/Audio Cat 5 KVM Extender with USB Flash Storage (1024 x 768@250m)
Connectors
| Console Ports | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) |
2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) |
| KVM Ports | 1 x USB Type A (Female) | 1 x SPHD-15 Female (Yellow) 1 x USB Type B (Female) 1 x USB Type A (Female) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) |
| Firmware Upgrade | 1 x 4-conductor 3.5 mm Jack | N/A |
| Power | 1 x DC Jack | 1 x DC Jack |
| Unit To Unit | 1 x RJ-45 | 1 x RJ-45 |
| Switches | ||
| Operation Mode Selection | 1 x Pushbutton | 1 x Pushbutton |
| Picture Compensation | N/A | 2 x Pushbutton |
| LEDs | ||
| Local | 1 (Green) | N/A |
| Remote | 1 (Green) | 1 (Green) |
| Link | N/A | 1 (Green) |
| Compensation | N/A | 1 (Orange) |
| Video | 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m |
1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m |
| Power Consumption | DC5V, 6W | DC5V, 6W |
| Environmental | ||
| Operating Temperature | 0-50˚C | 0-50˚C |
| Storage Temperature | -20-60˚C | -20-60˚C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.51 kg ( 1.12 lb ) | 0.49 kg ( 1.08 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.63 x 2.63 cm (7.95 x 3.4 x 1.04 in.) |
20.20 x 8.16 x 2.63 cm (7.95 x 3.21 x 1.04 in.) |
Виж още KVM продукти Aten
Виж всички KVM продукти в категорията
Технически характеристики
| Тип: | KVM Екстендър |
|---|---|
| Брой портове (вход): | 1 |
| Вид портове (вход): | USB А(ж) |
| Брой портове (изход): | 5 |
| Вид портове (изход): | SPHD-15 (ж) USB B (ж) USB А(ж) Jack(ж) 3.5mm |
