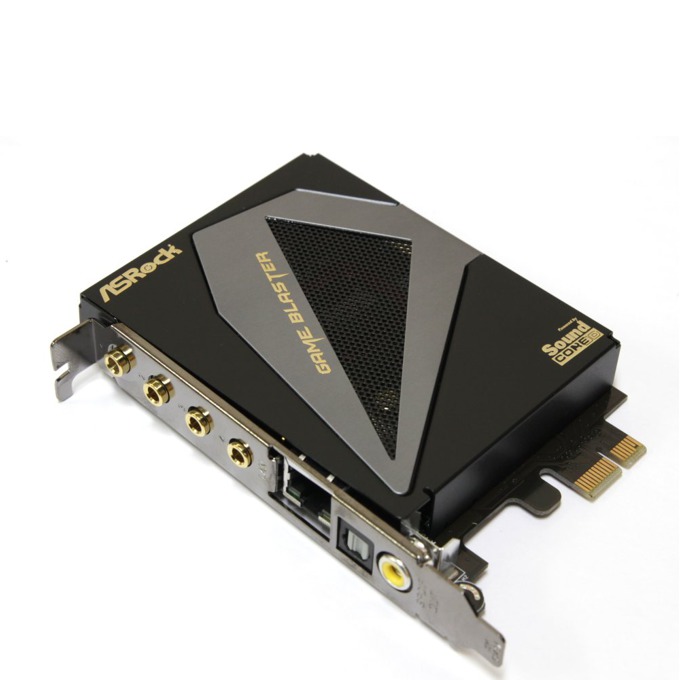

Game Blaster
Platform
- Size: 4.3-in x 3.0-in, 11.0 cm x 7.5 cm
- Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
Chipset
- Creative Sound Core3D quad-core sound and voice processor
- Powerful 32-bit 200Mhz QUAD-Processor SIMD DSP
- 102dB 24-bit DAC
- 101dB 24-bit ADC
Output Features
- Supports Stereo / 2.1 Speakers / 5.1 Surround / 7.1 Surround-EX / Headphones
- Front Panel Headphone Out with built-in amplifier (shared with jack 4)
- Coaxial SPDIF Out Port
- Optical SPDIF Out Port
Input Features
- Line in / MIC in shared with 1/8" mini jack (jack 3)
- Microphone in with front audio panel
Audio
- Supports CrystalVoice
- Supports Scout Mode
- Supports EAX1.0 to EAX5.0
- Supports Full Blu-ray Profile 2.0 Audio Decoder
- Supports Premium Headset Amplifier (PHA)
- Supports Blu-ray Audio
- Supports AES-128 Encryption / Decryption Engine
LAN
- Broadcom BCM57781
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function (for motherboards with Broadcom LAN)
- Supports PXE
Rear Panel I/O
I/O Panel
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 4 x 1/8" mini jacks
Connector
- 1 x HDMI_SPDIF header
- 1 x Front panel audio connector
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit compliant
!Важно!
Моля, проверете за съвместимост:
http://www.asrock.com/mb/spec/card.asp?Model=Game%20Blaster&cat=Support
Виж още Звукови карти ASRock
Виж всички Звукови карти в категорията
Platform
- Size: 4.3-in x 3.0-in, 11.0 cm x 7.5 cm
- Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
Chipset
- Creative Sound Core3D quad-core sound and voice processor
- Powerful 32-bit 200Mhz QUAD-Processor SIMD DSP
- 102dB 24-bit DAC
- 101dB 24-bit ADC
Output Features
- Supports Stereo / 2.1 Speakers / 5.1 Surround / 7.1 Surround-EX / Headphones
- Front Panel Headphone Out with built-in amplifier (shared with jack 4)
- Coaxial SPDIF Out Port
- Optical SPDIF Out Port
Input Features
- Line in / MIC in shared with 1/8" mini jack (jack 3)
- Microphone in with front audio panel
Audio
- Supports CrystalVoice
- Supports Scout Mode
- Supports EAX1.0 to EAX5.0
- Supports Full Blu-ray Profile 2.0 Audio Decoder
- Supports Premium Headset Amplifier (PHA)
- Supports Blu-ray Audio
- Supports AES-128 Encryption / Decryption Engine
LAN
- Broadcom BCM57781
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function (for motherboards with Broadcom LAN)
- Supports PXE
Rear Panel I/O
I/O Panel
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 4 x 1/8" mini jacks
Connector
- 1 x HDMI_SPDIF header
- 1 x Front panel audio connector
OS
- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit compliant
!Важно!
Моля, проверете за съвместимост:
http://www.asrock.com/mb/spec/card.asp?Model=Game%20Blaster&cat=Support
Виж още Звукови карти ASRock
Виж всички Звукови карти в категорията
Технически характеристики
Тип: | Вътрешна |
---|
