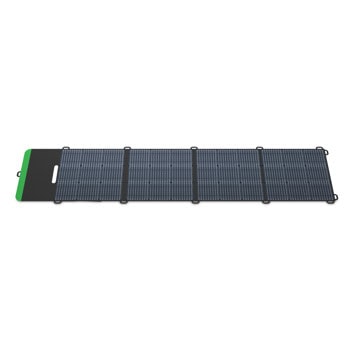

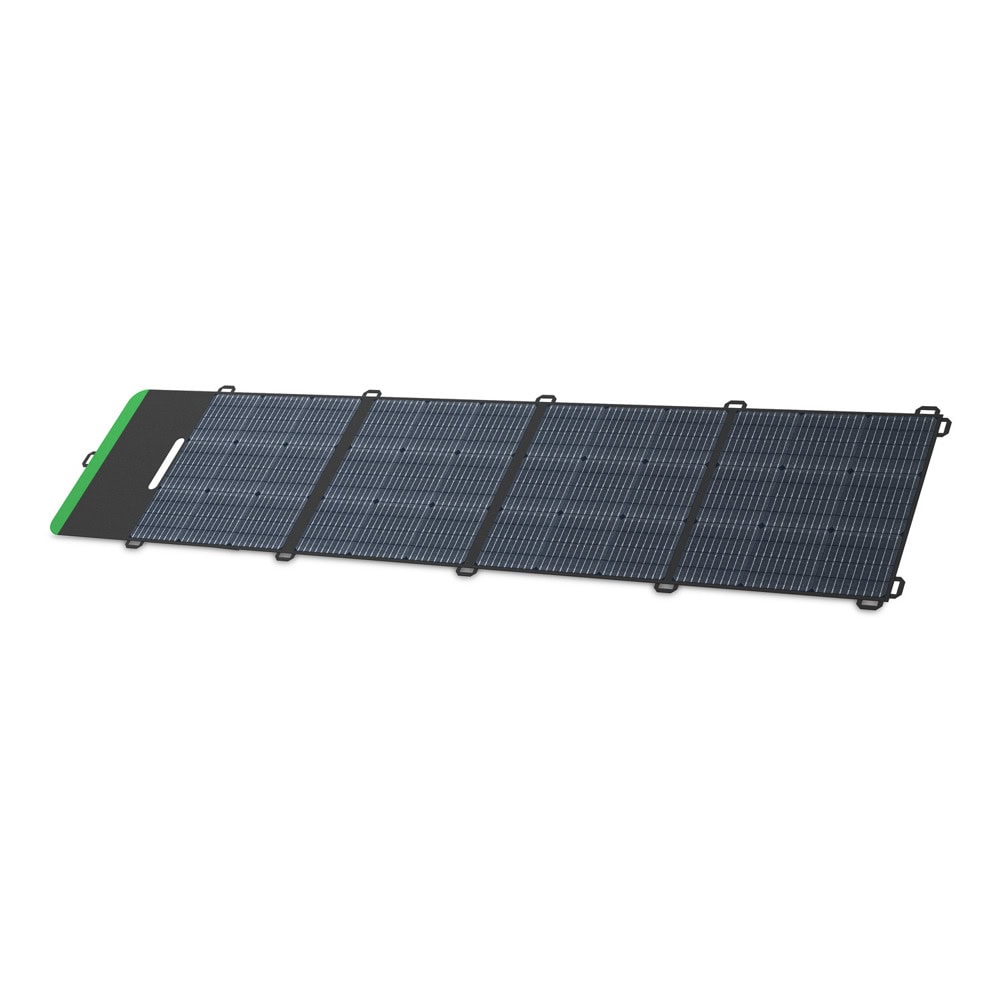

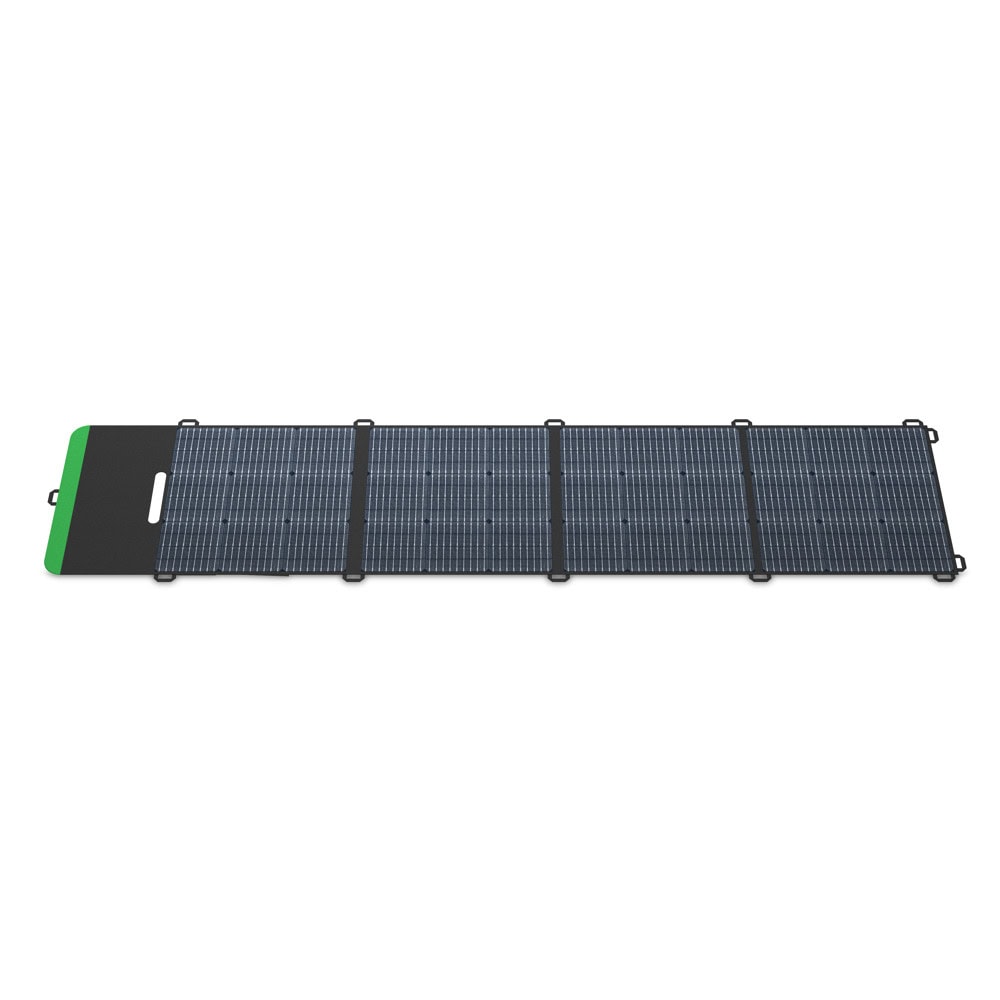

The APC Schneider OffGrid PSP200 is a portable solar panel designed for versatile outdoor and emergency use. With a compact and foldable design, it offers easy transportation and setup while delivering a powerful output of 200 W at a voltage of 20.97 V. The use of monocrystalline cells technology ensures high efficiency, reaching up to 23%, which allows for effective energy conversion for various applications. Built to withstand extreme conditions, this solar panel operates effectively in temperatures ranging from -40°C to 80°C. It is water-resistant and complies with multiple environmental standards including REACH and IP65, ensuring durability and safety. The panel features a single DC7909 output connector providing a maximum electric current of 9.57 A, making it a reliable choice for powering devices in off-grid scenarios.



Product Features:

  • Effective energy conversion
    Utilizes monocrystalline cells technology, achieving an efficiency rating of 23% for reliable power output.
  • Rugged and durable design
    Water-resistant and compliant with IP65 standards, this solar panel is built to withstand various environmental conditions.
  • Optimal portability
    The foldable structure allows for easy transport, making it an ideal choice for camping, hiking, and emergency situations.
  • Extreme temperature resilience
    Functions effectively within a wide temperature range, from -40°C to 80°C, ensuring performance under harsh conditions.
  • Simple connectivity
    Equipped with a single DC7909 output connector that provides up to 9.57 A of electric current, facilitating easy connection to devices.



General
Device TypeSolar panel - external
Power Device
Power Output Connectors Details1 x DC7909
Output VoltageDC 20.97 V
Max Electric Current9.57 A
Power Capacity200 Watt
Efficiency23%
Miscellaneous
FeaturesFoldable, water-resistant, monocrystalline cells technology
Compliant StandardsIP65, REACH, EU RoHS, China RoHS, Mercury-free
Manufacturer Warranty
Service & SupportLimited warranty - replace or repair - 2 years
Environmental Parameters
Min Operating Temperature-40 °C
Max Operating Temperature80 °C
Dimensions & Weight
Width55.55 cm
Depth55 cm
Height5.5 cm
Weight7 kg
Dimensions & Weight (Shipping)
Shipping Width61 cm
Shipping Depth66.5 cm
Shipping Height22.5 cm
Shipping Weight18 kg




Виж още Фотоволтаични панели APC
Виж всички Фотоволтаични панели в категорията
Документация
Технически характеристики
Мощност:  200 Wp
