Output
Output Power Capacity - 300 Watts / 500 VA
Max Configurable Power - 300 Watts / 500 VA
Nominal Output Voltage - 230V

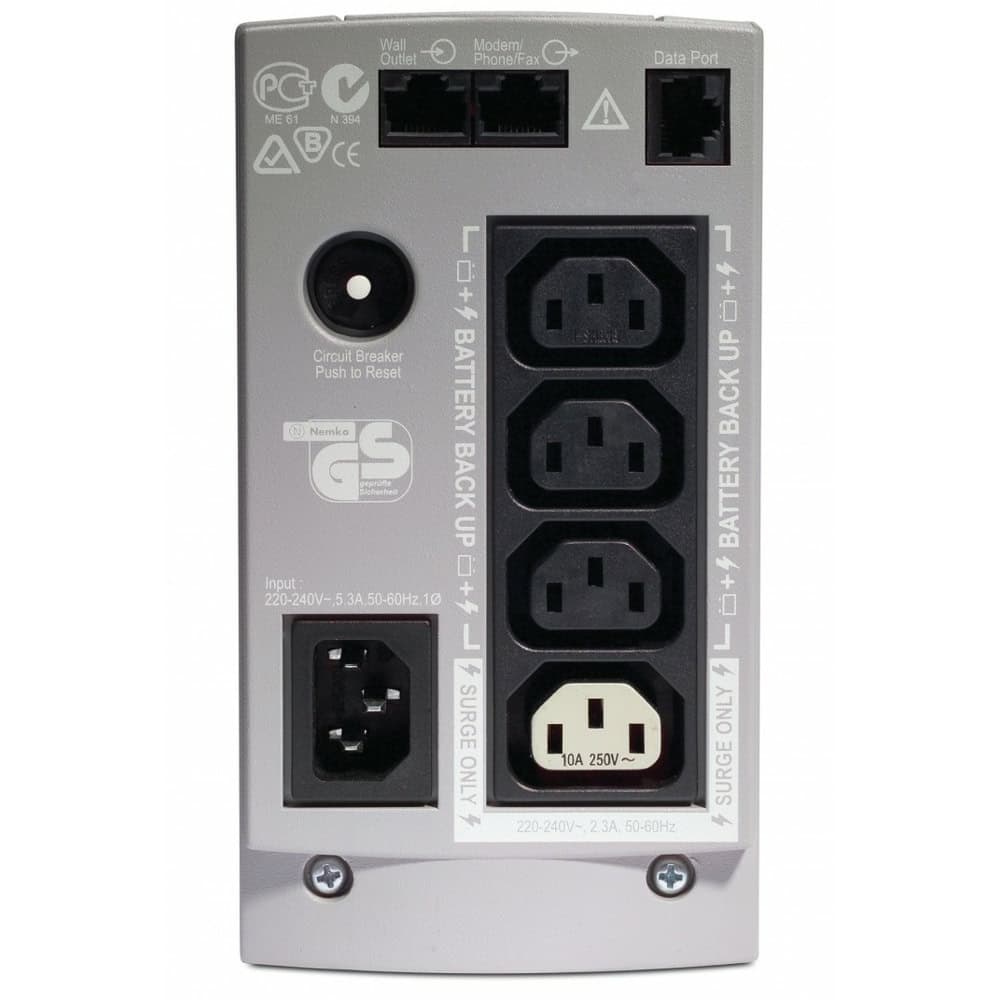

Output Connections -
(1) IEC 320 C13 (Surge Protection)
(3) IEC 320 C13 (Battery Backup)

Input
Nominal Input Voltage - 230V
Input Frequency - 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections - IEC-320-C14 inlet
Cord Length - 1.83 meters
Input voltage range for main operations - 196 - 280V
Input voltage adjustable range for mains operation - 160 - 300V

Batteries & Runtime
Battery Type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time - 6 hour(s)
Replacement battery cartridge - RBC2
RBC™ Quantity - 1

Typical Backup Time at Half Load - 13.9 minutes (150 Watts)
Typical Backup Time at Full Load - 2.4 minutes (300 Watts)

Communications & Management
Interface Port(s) - DB-9 RS-232,USB

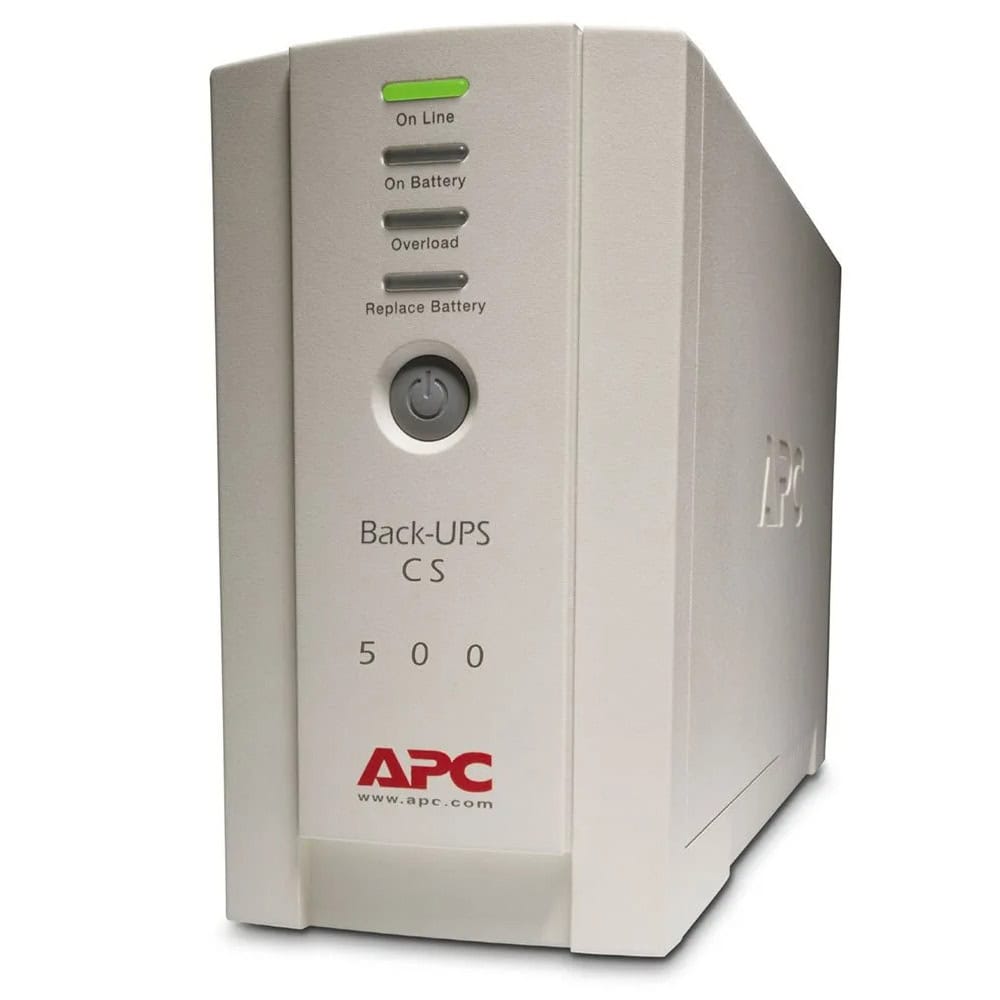

Control panel - LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating - 300 Joules
Filtering - Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection - RJ-45 Modem/Fax protection (two wire single line)

Physical
Maximum Height - 165.00 mm
Maximum Width - 91.00 mm
Maximum depth - 284.00 mm
Net Weight - 6.32 KG

Environmental
Operating Environment - 0 - 40 °C
Operating Relative Humidity - 0 - 95%
Operating Elevation - 0-3000 meters
Storage Temperature - -15 - 45 °C
Storage Relative Humidity - 0 - 95%
Storage Elevation - 0-15000 meters
Audible noise at 1 meter from surface of unit - 40 dBA
Online Thermal Dissipation - 24.00 BTU/hr

Conformance
Regulatory Approvals - C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
