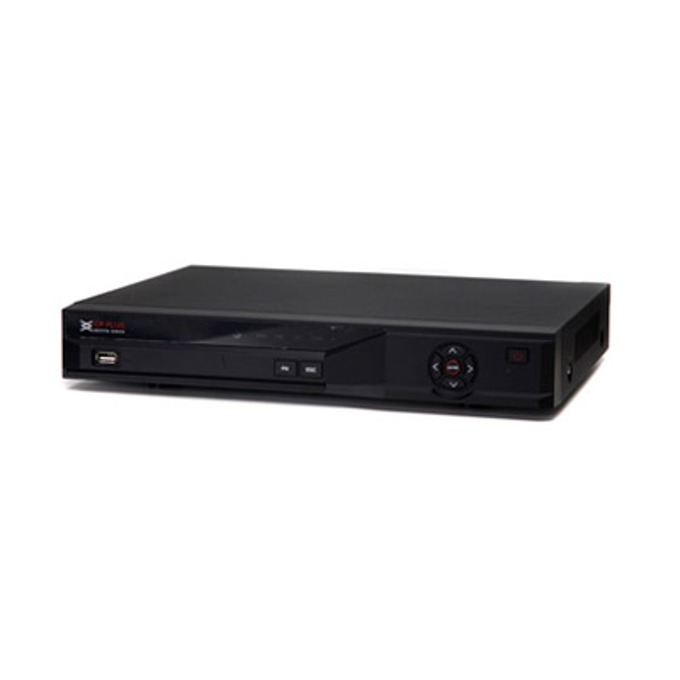

IP видеорекордер CP Plus CP-UNR-404T1, 4 канален, H.264, 1 SATA port, up to 4TB, 2x USB2.0, 1x RJ-45 port 1000Mbps, Linux, 1x HDMI, 1x VGA

Specification

• ProcessorDual-core embedded processor
• Operating SystemEmbedded LINUX
• IP Camera Input4 channel
• Two-way Talk1 channel Input, 1 channel Output, RCA
• User InterfaceGUI
• Video Output1 HDMI, 1 VGA
• CompressionH.264 / MJPEG
• Video Resolution2560×1920, 2048×1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
• Video RecordingMax 80 Mbps
• Video Display Split1/4
• Motion DetectionMD Zones: 396(22×18).
• Video LossSupports
• Camera BlankSupports
• Hard Disk1 SATA ports, up to 4TB
• Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
• Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
• Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
• PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
• Backup ModeUSB Device / Internal SATA burner/ Network
• Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45
• Max User Account128 users
• Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
• Smart PhoneiPhone, iPad, Android, Windows Phone
• ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.3
• Ethernet1 RJ-45 port (10/100M/1000M)
• Power SupplyDC12V/2A
• Power Consumption10W(without HDD)
• Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
• Dimensions325mm × 240mm × 45mm
