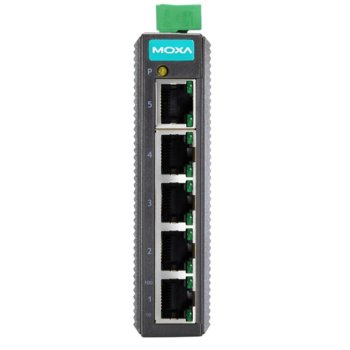

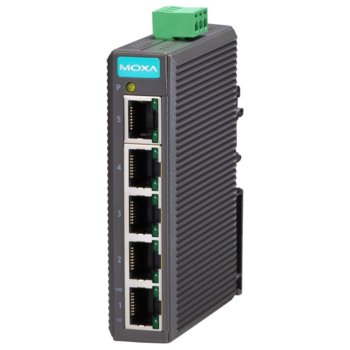

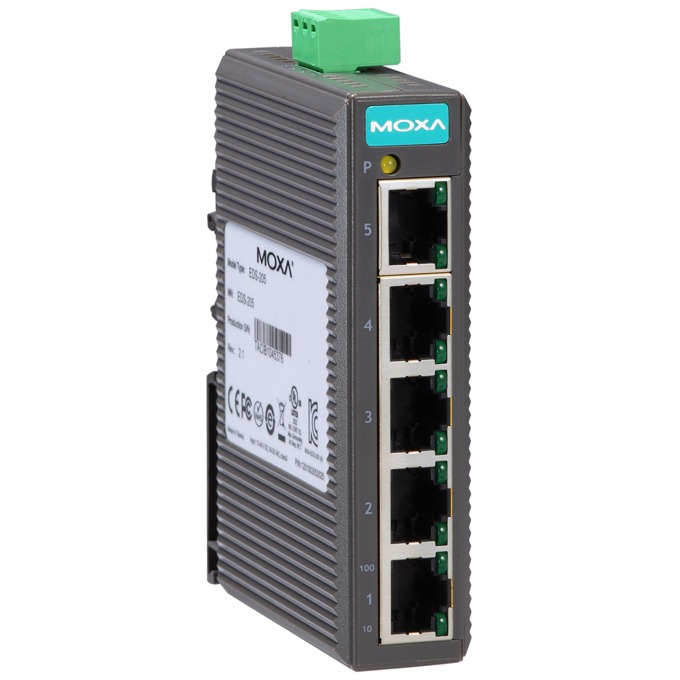

Суич Moxa EDS-205, 100 Mbps, 5 x 10/100 Ethernet ports

Introduction

The EDS-205 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.


Ethernet Interface
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

10/100BaseT(X) Ports (RJ45 connector)
Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed


Switch Properties
Processing Type
Store and Forward

MAC Table Size
1 K

Packet Buffer Size
512 kbits


Power Parameters
Input Voltage
24 VDC

Input Current
0.11 A @ 24 VDC

Operating Voltage
12 to 48 VDC

Connection
1 removable 3-contact terminal block(s)

Overload Current Protection
1.1 A @ 24 VDC

Reverse Polarity Protection
Supported


Physical Characteristics
Housing
Plastic

IP Rating
IP30

Dimensions
24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)

Weight
135 g (0.30 lb)

Installation
DIN-rail mounting


Environmental Limits
Operating Temperature
-10 to 60°C (14 to 140°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)


Standards and Certifications
Safety
EN 60950-1, UL 508

EMC
EN 55032/24

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF

Shock
IEC 60068-2-27

Vibration
IEC 60068-2-6

Freefall
IEC 60068-2-31


MTBF
Time
3,915,945 hrs

Standards
Telcordia (Bellcore), GB
